H3C MSR Router Comware 5 Series Manual page 90

Item
Maximum baud rate
(bps)
Cable
Supported service
Interface LEDs

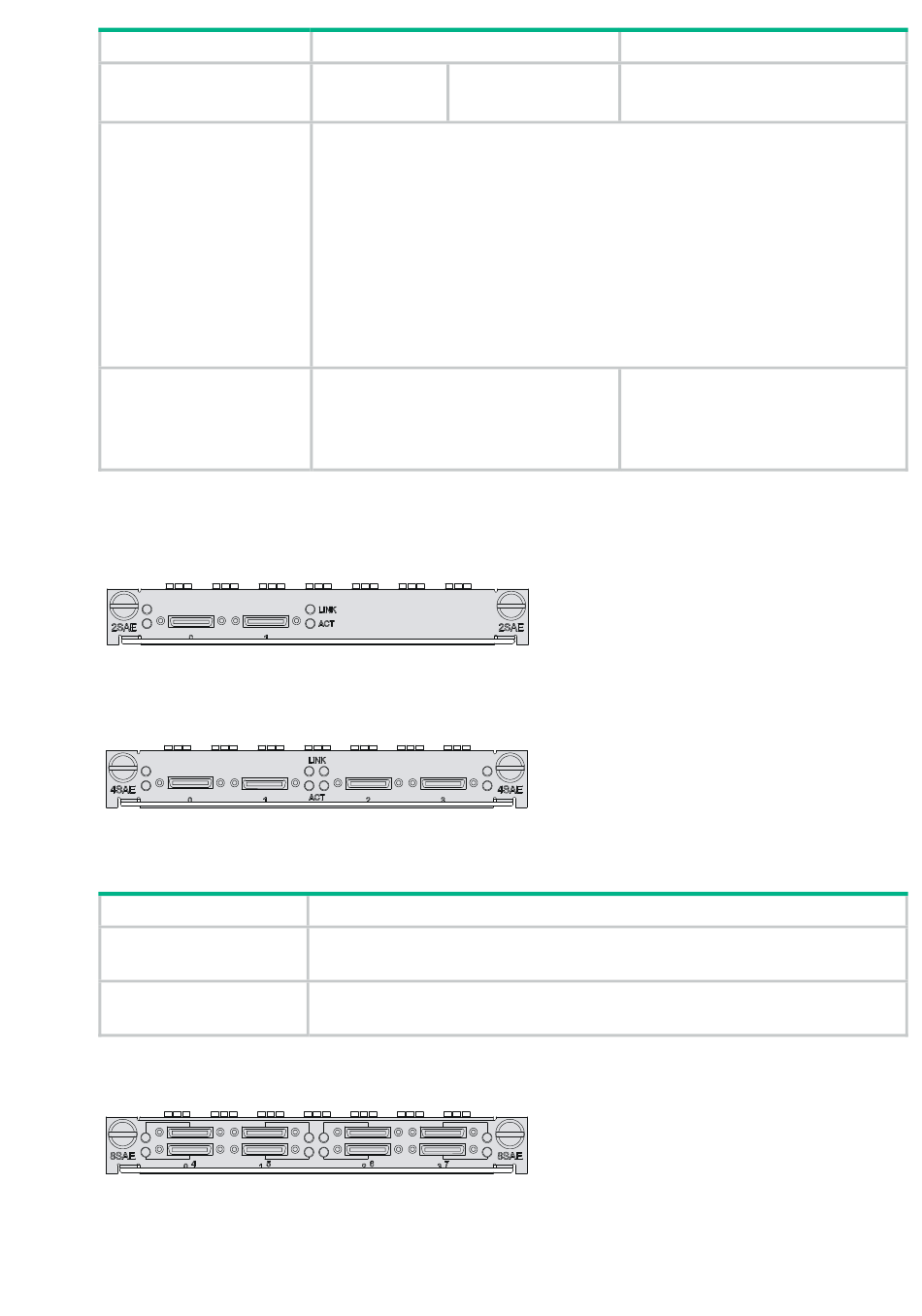

Figure 86 MIM-2SAE panel
Figure 87 MIM-4SAE panel
Table 111 LED description
LED
LINK
ACT
Figure 88 MIM-8SAE panel
The MIM-8SAE module provides a LED for each channel. When the LED is on, a link is present.
When the LED is flashing, data is being transmitted or received.
Synchronous
64 k 2.048 M
•
V.24 (RS-232) DTE cable
•
V.24 (RS-232) DCE cable
•
V.35 DTE cable
•
V.35 DCE cable
•
X.21 DTE cable
•
X.21 DCE cable
•
RS449 DTE cable
•
RS449 DCE cable
•
RS530 DTE cable
•
RS530 DCE cable
•
DDN leased line
•
Terminal access service
Description
•
Off: No link is present;
•
On: A link is present.
•
Off: No data is being transmitted or received;
•
Flashing: Data is being received or/and transmitted.
81
Asynchronous
115.2
•
Dialup through modems
•
Backup
•
Asynchronous leased line
•
Dumb terminal access
