Interface specifications

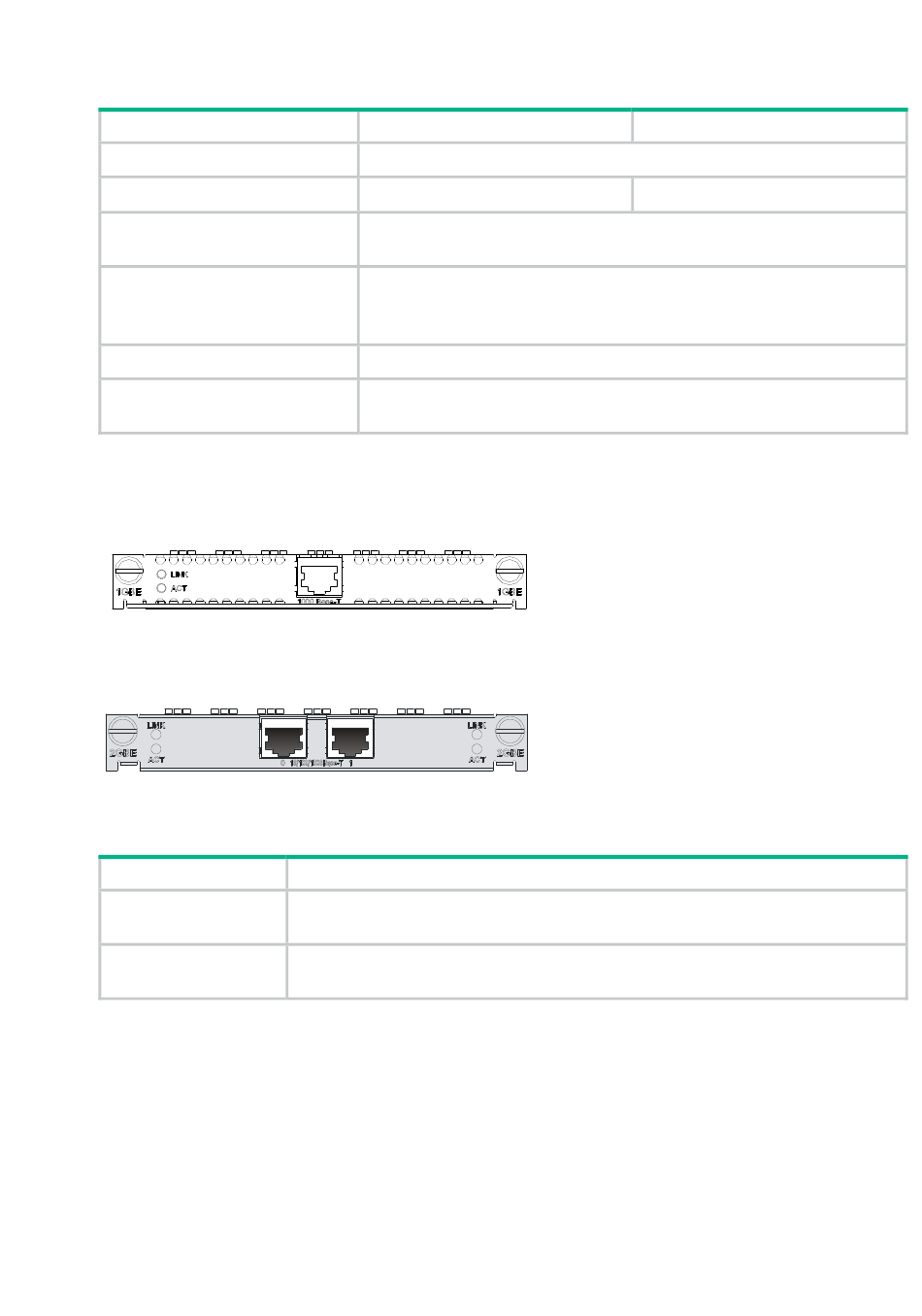

Table 73 Interface specifications
Item
Connector
Number of connectors
Interface type
Interface standard
Cable type
Operating mode
Interface LEDs
Figure 57 MIM-1GBE
Figure 58 MIM-2GBE
Table 74 LED description
LED
LINK
ACT
Interface cables and the connection methods
For more information about Ethernet interface cables and the connection methods, see
interface."
MIM-1GBE
RJ-45
1
•
MDI
•
MDIX
•
802.3
•
802.3u
•
802.3ab
Ethernet cable
•
10/100/1000 Mbps autosensing
•
Half-duplex/full duplex, autosensing
Description
•
Off: No link is present;
•
On: A link is present.
•
Off: No data is being transmitted or received;
•
Flashing: Data is being received or/and transmitted.
54
MIM-2GBE
2
"Ethernet
