Interface LEDs

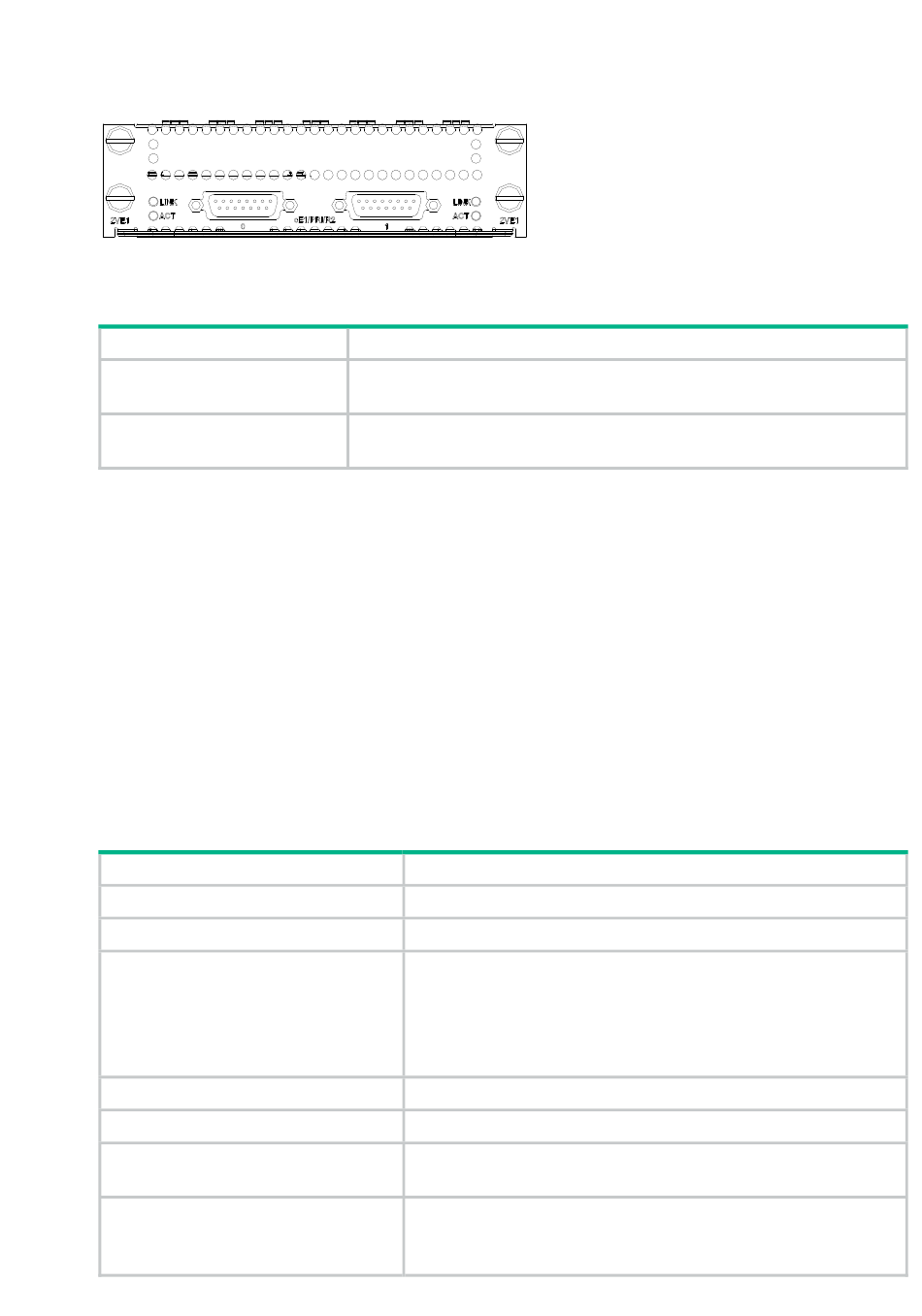

Figure 96 MIM-2VE1 panel
Table 123 LED description
LED
LINK
ACT
Interface cables and the connection methods
For more information about E1 interface cables and the connection methods, see

MIM-2VT1

Introduction
The 2-port T1 voice interface module (MIM-2VT1) can handle dense voice signals in VoIP system. It
provides two CT1/PRI ports, allowing the access of 48 channels of voice signals.
Interface specifications
Table 124 Interface specifications
Item
Connector
Number of connector
Interface standard
Interface rate
Cable type
Operation mode
Services
Description
•
Off: No link is present.
•
On: A link is present.
•
Off: No data is being transmitted or received on the interface.
•
Flashing: Data is being transmitted and/or received.
Description
RJ-45
2
•
G.703/T1.102
•
G.704
•
AT & T TR 54016
•
AT & T TR 62411
•
ANSI T1.403
1.544 Mbps
T1 cable (100-ohm standard shielded cable)
•
CT1
•
ISDN PRI
•
Backup
•
Terminal access
•
ISDN
90
