If the remote device is a bank dumb terminal device, connect the RJ-45 connector (male) on
one end of the dumb terminal cable to the RJ-45 interface on the
MIM-8ASE/MIM-16ASE/FIC-8ASE/FIC-16ASE interface module. Connect the RJ-45 connector
(female) on the other end of the dumb terminal cable to the RJ-45 interface on one end of the
dumb terminal adapter by a straight-through cable. The other end of the dumb terminal adapter
is a D25 interface and can be connected to the bank dumb terminal device. The sequence is
shown in the following figure:

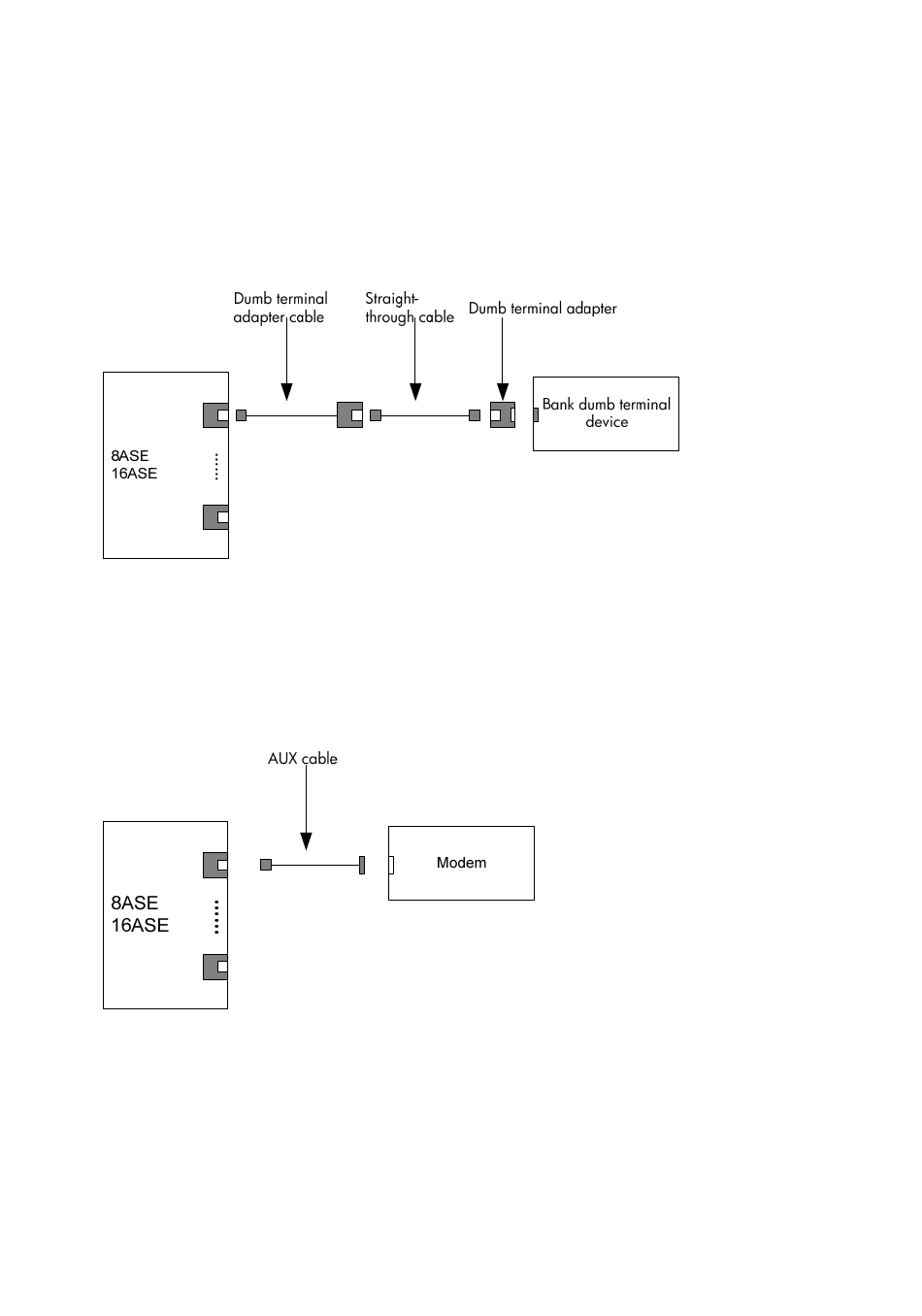

Figure 183 Connecting a bank dumb terminal device
•
If the interface of the remote device, usually a modem, is a D25/D9 interface, use the AUX cable
to connect the RJ-45 interface on the MIM-8ASE/MIM-16ASE/FIC-8ASE/FIC-16ASE interface
module. The sequence is shown in the following figure:
Figure 184 Connecting a modem
