H3C PSR650B-12A2-F Power Module User
Manual-APW101
H3C PSR650B-12A2-F 电源手册-APW101
Overview 简介
•
The PSR650B-12A2-F is a DC output power supply that supports AC and
HVDC power input. It provides a maximum output of 650 W.
PSR650B-12A2-F 是一款提供直流输出的电源模块，既支持交流输入也
支持高压直流输入。这款电源模块的最大输出功率可达 650W。
•

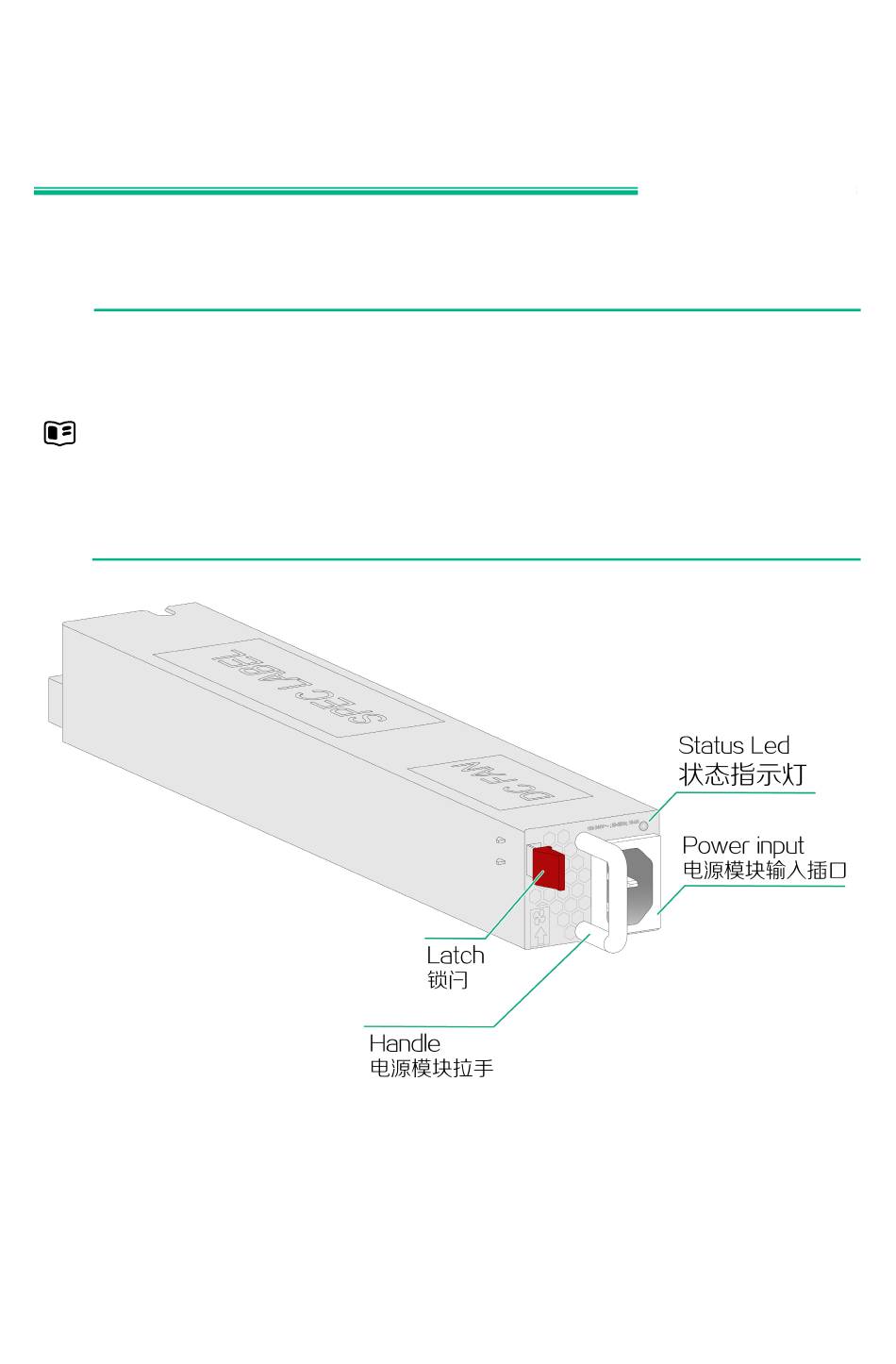

The PSR650B-12A2-F power supply draws air from its faceplate. The
following figure shows the PSR650B-12A2-F power supply.
PSR650B-12A2-F 的风道风向是电源面板侧进风。下图展示
PSR650B-12A2-F 的外观。
1
BOM: 3101A13W
Advertisement
Table of Contents
Related Manuals for H3C PSR650B-12A2-F
Summary of Contents for H3C PSR650B-12A2-F
- Page 1 Manual-APW101 H3C PSR650B-12A2-F 电源手册-APW101 BOM: 3101A13W Overview 简介 • The PSR650B-12A2-F is a DC output power supply that supports AC and HVDC power input. It provides a maximum output of 650 W. PSR650B-12A2-F 是一款提供直流输出的电源模块，既支持交流输入也 支持高压直流输入。这款电源模块的最大输出功率可达 650W。 • The PSR650B-12A2-F power supply draws air from its faceplate. The following figure shows the PSR650B-12A2-F power supply.
- Page 2 PSR650B-12A2-F 适用于多款 交换机产品，其适用机型的准确信息随着时间变化有更新的可能性，若您 需要详细的适配信息，请咨询市场人员或技术支持人员。 • The restrictions for using the PSR650B-12A2-F power supply depend on the switch model. For more information, see the installation guide or hardware information and specifications for the switch. PSR650B-12A2-F 用于不同交换机产品时可能存在不同的使用限制，具体请参考产品配套安...
- Page 3 Relative humidity 工作环境相对湿度（非凝露） 5% RH to 95% RH, noncondensing Storage temperature 存储温度 -40°C to +70°C (–40°F to +158°F) LEDs 电源模块状态指示灯 The PSR650B-12A2-F power supply provides one LED on its faceplate to indicate the power input and output status. PSR650B-12A2-F 电源模块面板上有 1 个电源模 块指示灯，用于指示电源的输入、输出状态。 LED Status 指示灯状态...
- Page 4 To avoid bodily injury, do not touch any bare wire or terminal. 不要接触露出的任何导线、端子部分，以免对人体造成伤害。 • To avoid power supply damage, do not open the power supply. When the internal circuits or components of the power supply fail, contact H3C Support. 为了防止电源模块受损，请不要随意打开电源模块外壳，当电源模块内部 线路或元器件出现故障时， 请移交维修人员进行检修。...
- Page 5 2. Tools 工具准备 An ESD wrist strap is required for installing and removing the power supply and connecting the power cord. Prepare an ESD wrist strap yourself. 安装和拆卸电源模块和电源线过程中需要使用防静电腕带，请用户自备。 3. Installing the power supply 安装电源模块 • To prevent damage to the power supply or the connector on the backplane of the powered device, insert the power supply gently.
- Page 6 (1) Unpack the power supply and verify that the input mode of the power supply is as required. 从电源模块包装盒中取出电源模块，确认电源模块的输入方式与 所需一致。 (2) Correctly orient the power supply (with the lettering on it upward), grasp the handle of the power supply with one hand and support its bottom with the other, and slide the power supply slowly along the guide rails into the slot.
- Page 7 4. Connecting the power cord 连接电源线 • Use the power cord provided with the power supply for connection. The power cord provided with the power supply uses a C13 connector. 请使用 电源模块标配的电源线进行连接，该电源线采用 C13 接口。 • Provide a separate circuit breaker for each power cord. 请保证电源线有 独立的输入断路器。...
- Page 8 用一只手握住电源模块拉手，另一只手托住电源模块下方，将电源 模块沿着插槽导轨水平缓慢地拉出。 (5) Put the removed power supply into an antistatic bag. 将拆卸下来的电源模块放 到防静电袋中。 Copyright © 2022, New H3C Technologies Co., Ltd. The information in this document is subject to change without notice. Copyright © 2022 新华三技术有限公司 版权所有，保留一切权利 本文档中的信息如有更改，恕不另行通知...
