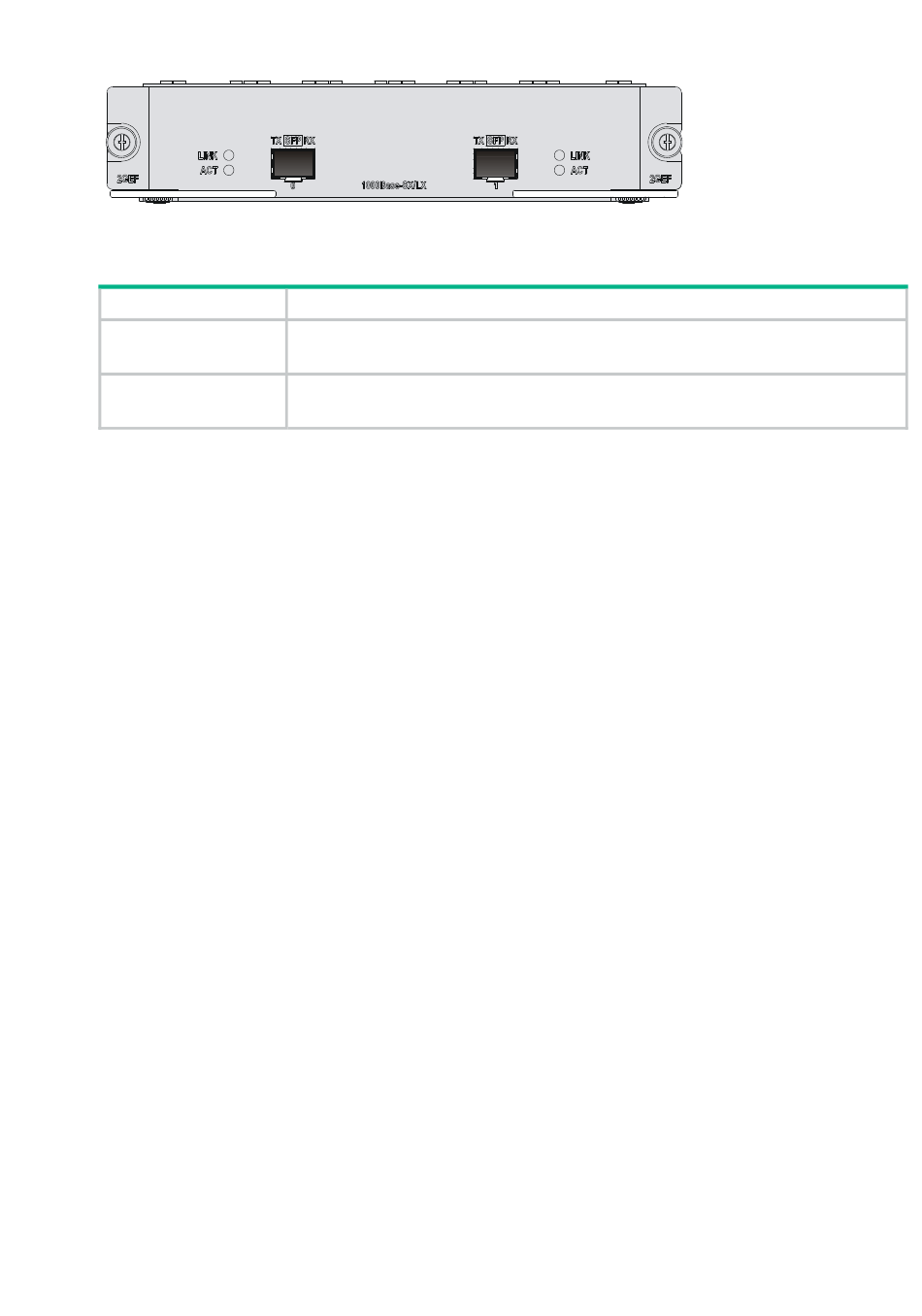

Figure 117 FIC-2GEF panel
Table 145 LED description
LED
LINK
ACT
Transceiver modules, optical fibers, and connection methods
For more information about transceiver modules, optical fibers, and the connection methods, see
"Fiber port."

ATM interface module

•
FIC-IMA-4E1
•
FIC-IMA-8E1
•
FIC-IMA-4T1
•
FIC-IMA-8T1
•
FIC-1AE3
•
FIC-1AT3
•
FIC-1ATM-OC3

FIC-IMA-4E1/FIC-IMA-8E1

Introduction
The 4-port/8-port E1 ATM inverse multiplexing interface module (FIC-IMA-4E1/FIC-IMA-8E1)
provides four/eight E1 interfaces that support the IMA (inverse multiplexing for ATM) technology.
The IMA technology combines multiple low-speed links into a group to support a high-speed ATM
cell stream: It distributes an ATM cell stream over multiple low-speed E1 links on cell by cell basis at
the transmission end and reassembles the cells on the low-speed E1 links into the original stream at
the far end. This technology provides a scalable and cost-effective solution, and is commonly used in
PDH networks to transport ATM cells.
Description
•
Off: No link is present.
•
On: A link is present.
•
Off: No data is being transmitted or received.
•
Flashing: Data is being received or/and transmitted.
