Item
Length
Color
Operating temperature
Installing an antenna for the SIC-3G-CDMA/SIC-3G-GSM/SIC-3G-TD/SIC-3G-HSPA module
Unfold the antenna to 180º.
1.
Attach the antenna to the antenna port marked MAIN on the interface module. To avoid
2.
damage, do not use excessive force.
Fold the antenna to 90º so that the antenna is vertical to the ground or ceiling to achieve optimal
3.
coverage.
Connecting an AUX cable for the SIC-3G-CDMA/SIC-3G-GSM/SIC-3G-TD/SIC-3G-HSPA
module
The SIC-3G-CDMA/SIC-3G-GSM/SIC-3G-TD/SIC-3G-HSPA module interface module has a Diag
port for debugging. To debug the interface module through third-party software, connect the RJ-45
connector of an AUX cable to the Diag port on the module and the D25/D9 connector of the AUX
cable to the peer device, typically a PC.
When the interface module is operating correctly, you do not need to connect an AUX cable.
4G interface
4G antennas for the SIC-4G-LTE-M interface module

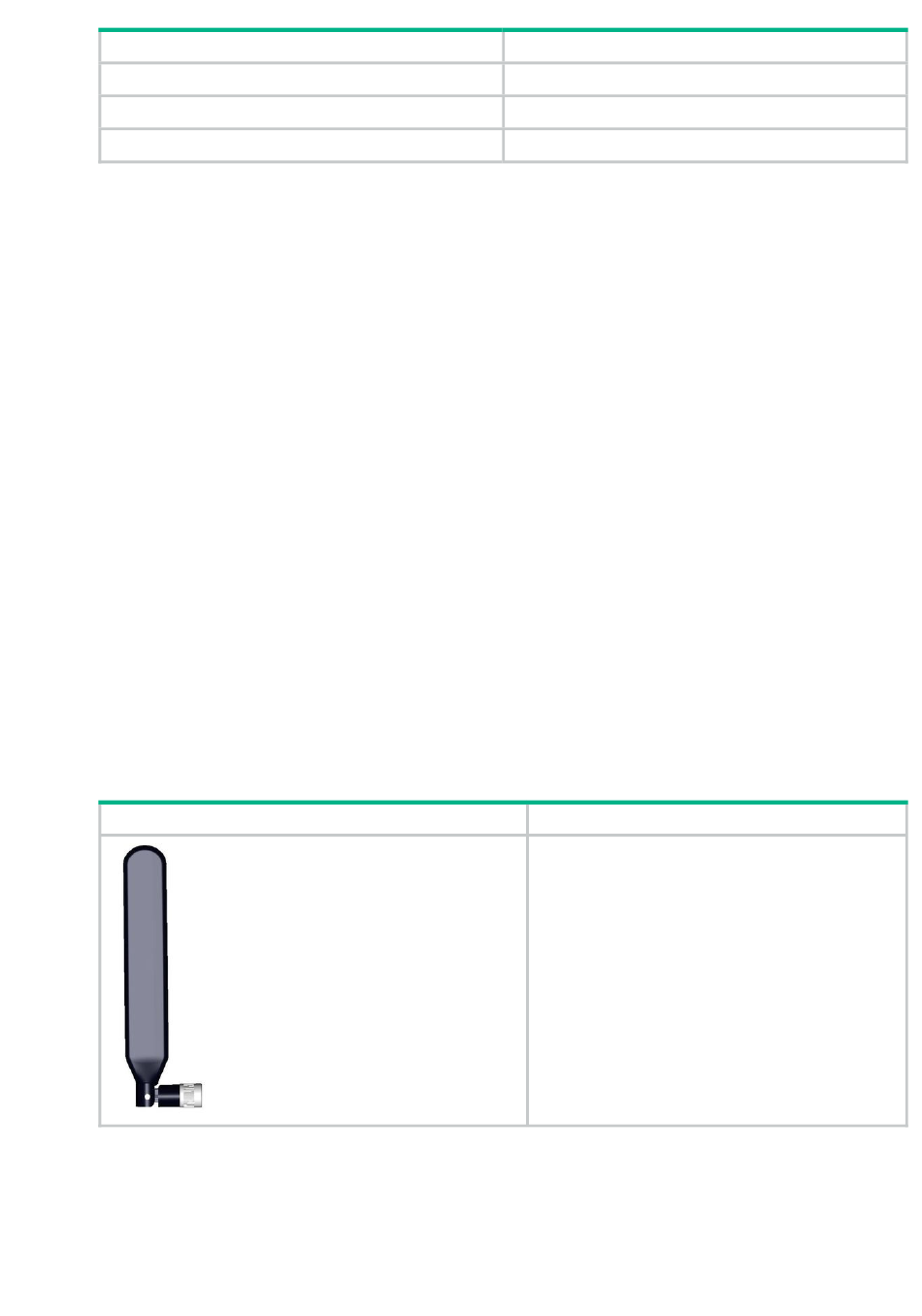

Table 238 4G antennas for the SIC-4G-LTE-M interface module
4G antenna
Description
None
Black
–30 °C to +60 °C (–22°F to +140°F)
Applicable models
SIC-4G-LTE-M
