Item
Number of connectors
Cable
Operation mode
NOTE:
Ethernet interfaces on network adapters are usually medium dependent interfaces (MDIs). Medium
dependent interface crossover (MDIX) is another type of Ethernet interface, which is usually used on
hubs and LAN switches.
Interface LEDs

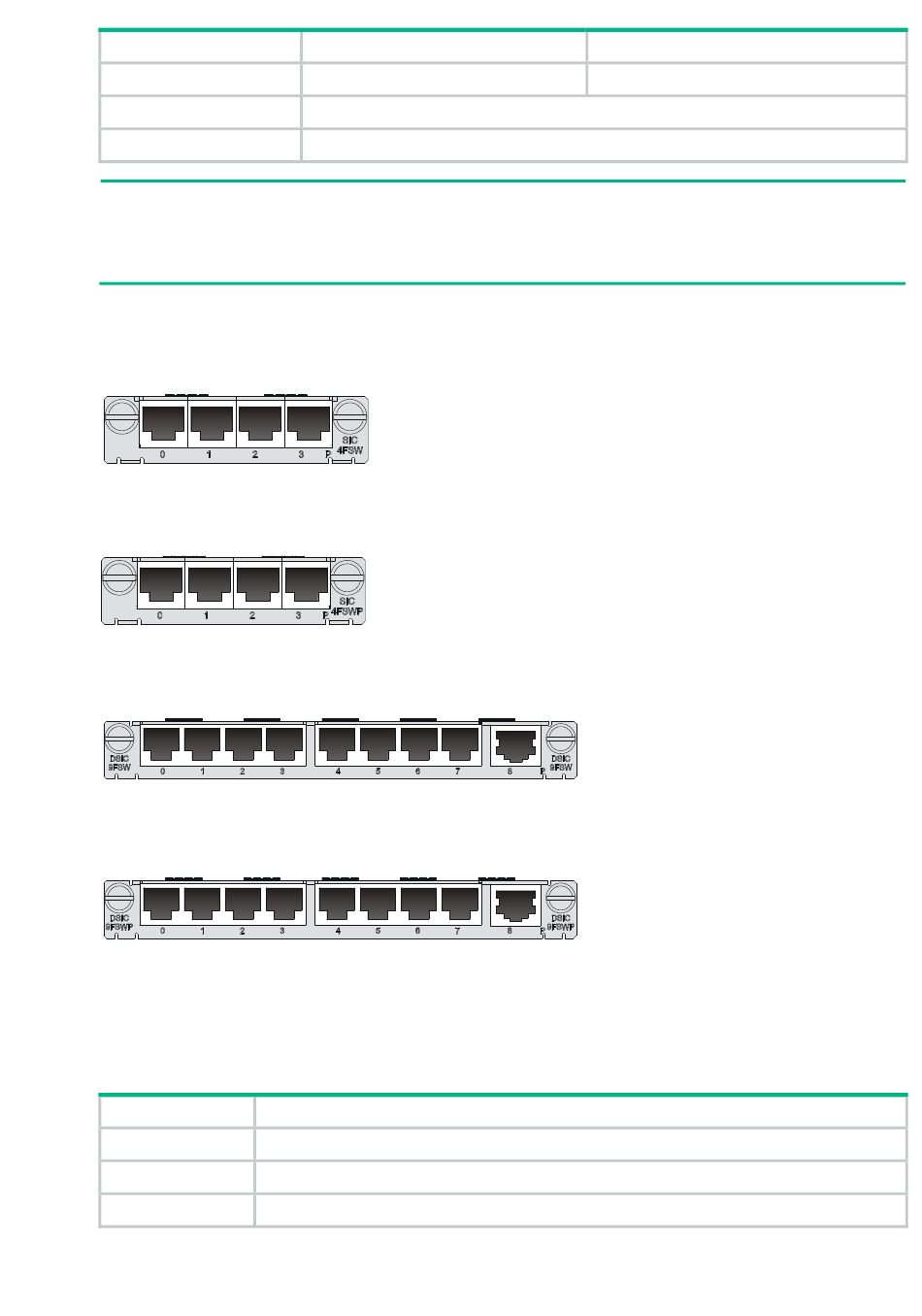

Figure 1 SIC-4FSW panel
Figure 2 SIC-4FSWP panel
Figure 3 DSIC-9FSW panel
Figure 4 DSIC-9FSWP panel
On the panel, each port corresponds with one green LED. The following table describes the LEDs on
the panel.
Table 2 LED description
LED
Steady on
Off
Flashing
SIC-4FSW/SIC-4FSWP
Four 100 Mbps RJ-45 connectors
Standard (straight-through)/cross-over Ethernet cable
10/100 Mbps autosensing, full/half duplex
Description
A link is present, but no data is being transmitted or received.
No link is present.
A link is present and data is being transmitted and received (ACT).
DSIC-9FSW/DSIC-9FSWP
Nine 100 Mbps RJ-45 connectors
