3G interface

Antennas and interface cables for the SIC-3G-CDMA/SIC-3G-GSM/SIC-3G-TD/SIC-3G-HSPA
module

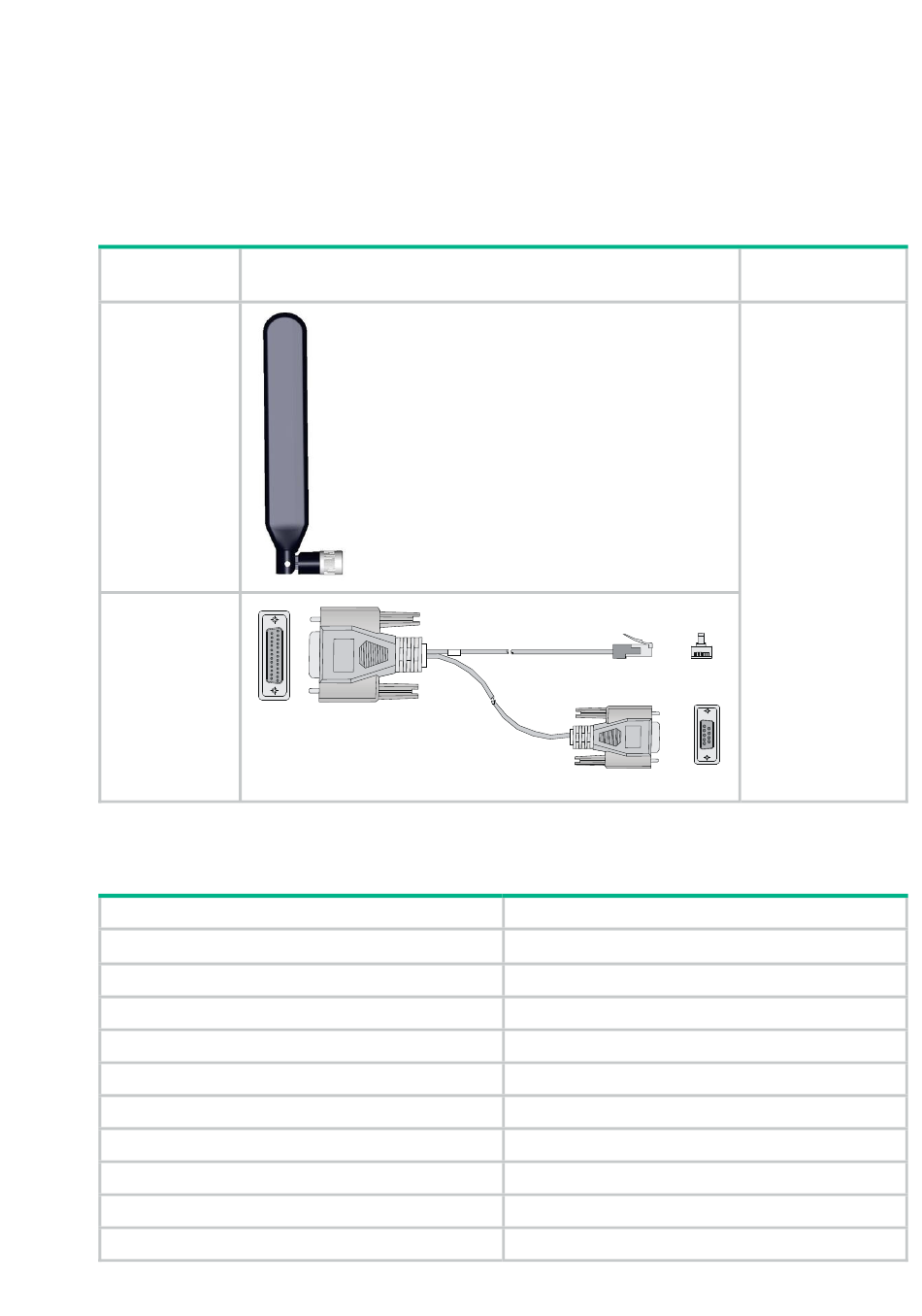

Table 236 Antenna and interface cables for the
SIC-3G-CDMA/SIC-3G-GSM/SIC-3G-TD/SIC-3G-HSPA module
Item
Antenna
AUX cable
Table 237 Specifications for the SIC-3G-CDMA/SIC-3G-GSM/SIC-3G-TD/SIC-3G-HSPA
module antenna
Item
Frequency scope
Voltage standing wave ratio
Input impedance
Gain
Polarization type
Maximum input power
Interface
Lightning protection
Height
Weight
Appearance
1 × D25 & 1 × D9 < ---- > 1 × RJ-45
Description
824-960 MHz / 1710-2170 MHz
≤ 2
50 Ω
1.5 dBi
Vertical
10 W
TNC-Male
Direct current grounding
153 mm (6.02 in)
26 g (0.92 oz)
191
Applicable
models
SIC-3G-GSM
SIC-3G-HSPA
SIC-3G-CDMA
SIC-3G-TD
