Manual version: 6PW101-20141219

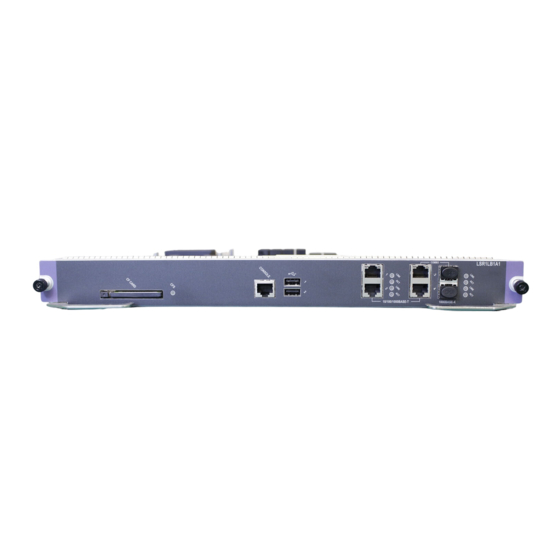

H3C S9500E LSR1LB1A1 Card Manual

1 Card identifier

The card identifier LSR1LB1A1 is at the upper right corner of the front panel.

2 Introduction

The LSR1LB1A1 module provides one console port, one CF card slot, two USB interfaces, two
10/100/1000BASE-T management Ethernet electrical interfaces, and two management Gigabit combo
interfaces.
You can use a GE port or combo interface to provide the following functions:
In-band management.
•
Outgoing interface for log messages.
•
Failover interface for stateful failover.
•

3 Specifications

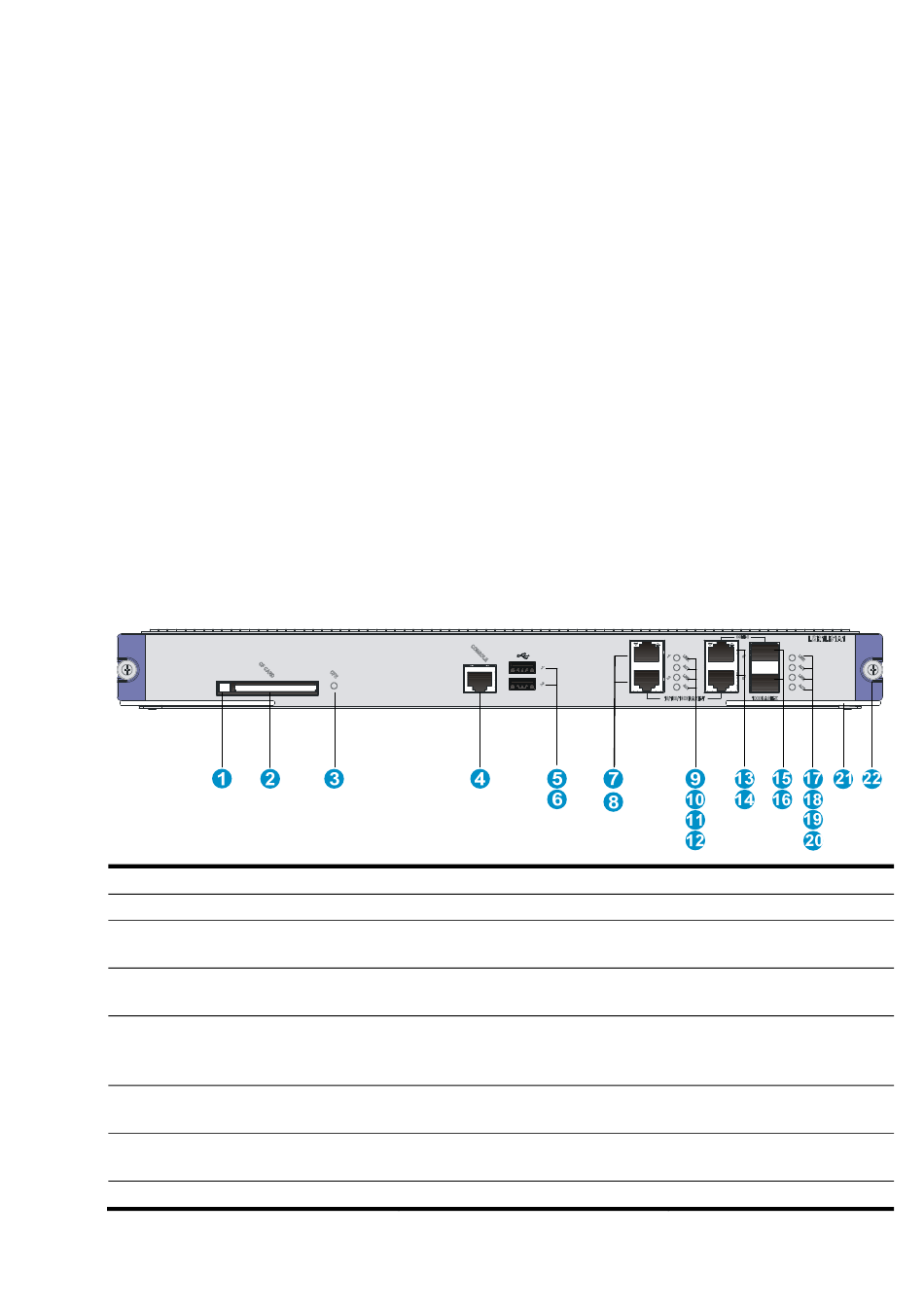

Figure 1 Front panel
(1) CF card eject button
(4) Console port (CONSOLE)
(7) Management Ethernet interface 1
(10/100/1000BASE-T)
(10) Management Ethernet interface 1
LED (ACT)
(13) Management interface 3
(Electrical port of combo interface
10/100/1000BASE-T)
(16) Management interface 4 (Optical
port of combo interface 1000BASE-X)
(19) Management interface 4 LED
(LINK)
(22) Captive screw
(2) CF card slot (CF CARD)
(5) USB interface 1 (reserved)
(8) Management Ethernet interface
2 (10/100/1000BASE-T)
(11) Management Ethernet interface
2 LED (LINK)
(14) Management interface 4
(Electrical port of combo interface
10/100/1000BASE-T)
(17) Management interface 3 LED
(LINK)
(20) Management interface 4 LED
(ACT)
i
BOM: 3213A0A4
(3) CF LED (CFS)
(6) USB interface 2 (reserved)
(9) Management Ethernet
interface 1 LED (LINK)
(12) Management Ethernet
interface 2 LED (ACT)
(15) Management interface 3
(Optical port of combo
interface 1000BASE-X)
(18) Management interface 3
LED (ACT)
(21) Ejector lever

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S9500E Series and is the answer not in the manual?

Questions and answers

Related Manuals for H3C S9500E Series

Summary of Contents for H3C S9500E Series

  • Page 1 Manual version: 6PW101-20141219 BOM: 3213A0A4 H3C S9500E LSR1LB1A1 Card Manual 1 Card identifier The card identifier LSR1LB1A1 is at the upper right corner of the front panel. 2 Introduction The LSR1LB1A1 module provides one console port, one CF card slot, two USB interfaces, two 10/100/1000BASE-T management Ethernet electrical interfaces, and two management Gigabit combo interfaces.
  • Page 2 Operating: 10% to 95%, noncondensing Ambient relative humidity • Non-operating: 5% to 95%, noncondensing Compatible device models H3C S9500E series switches System software version See the release notes that come with the card. Table 2 Console port specifications Item Specification...
  • Page 3 Manual version: 6PW101-20141219 BOM: 3213A0A4 Item Specification Transmission distance 100 m (328.08 ft) • 10 Mbps, half/full duplex • 100 Mbps, half/full duplex Operating mode • 1000 Mbps, full duplex Table 4 1000BASE-X fiber port specifications Item Specification Transceiver module Connector Interface standard 802.3, 802.3u, and 802.3ab...
  • Page 4 Manual version: 6PW101-20141219 BOM: 3213A0A4 Status Description No link is present on the port. GE/Combo copper port Steady green A link is present on the port. (LINK/ACT) Flashing yellow The port is sending or receiving data. 5 Installing and removing the card CAUTION: Wear a well-grounded ESD wrist strap or ESD gloves before you install or remove the card.
  • Page 5 Log in through the card's Web interface, console port, Telnet, or SNMP. H3C recommends that you log in to the card from the switch's CLI the first time you access the card. This section includes a procedure for logging in from the switch's CLI. For more information about other login methods, see H3C SecBlade LB Module Configuration Guides.
