FIC-IMA-4T1/FIC-IMA-8T1

Introduction
The 4-port/8-port T1 ATM inverse multiplexing interface module (FIC-IMA-4T1/FIC-IMA-8T1)
provides four/eight T1 interfaces that support the IMA technology. Their network application is similar
to that of the FIC-IMA-4E1/FIC-IMA-8E1 module.
Interface specifications
Table 148 Interface specifications
Item
Connector
Number of connectors
Interface standard
Cable type
Max transmission distance
Operating mode
Supported service
Protocol
Transmission rate
Interface LEDs

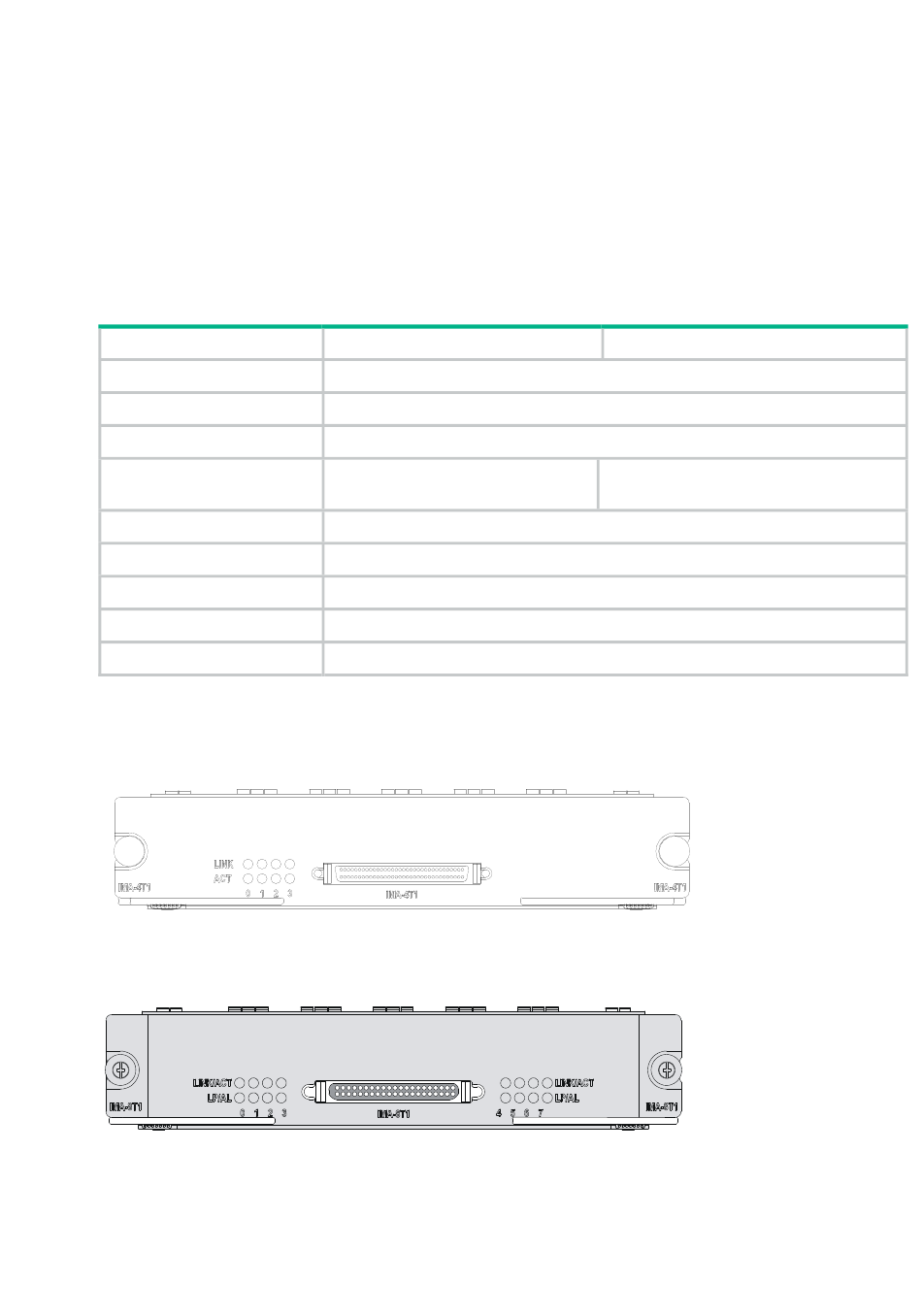

Figure 120 FIC-IMA-4T1 panel
Figure 121 FIC-IMA-8T1 panel
FIC-IMA-4T1
DB-68
1
ITU-G.703, ITU-G.704
4T1 conversion cable (100-ohm
straight-through shielded)
150 m (492.13 ft)
ATM T1 independent link/IMA bundle mode
AAL5
PPPoA, PPPoEoA, IPoA, IPoEoA
CBR/VBR-rt/VBR-nrt/UBR
107
FIC-IMA-8T1
8T1 conversion cable (100-ohm
straight-through shielded)
