Interface specifications

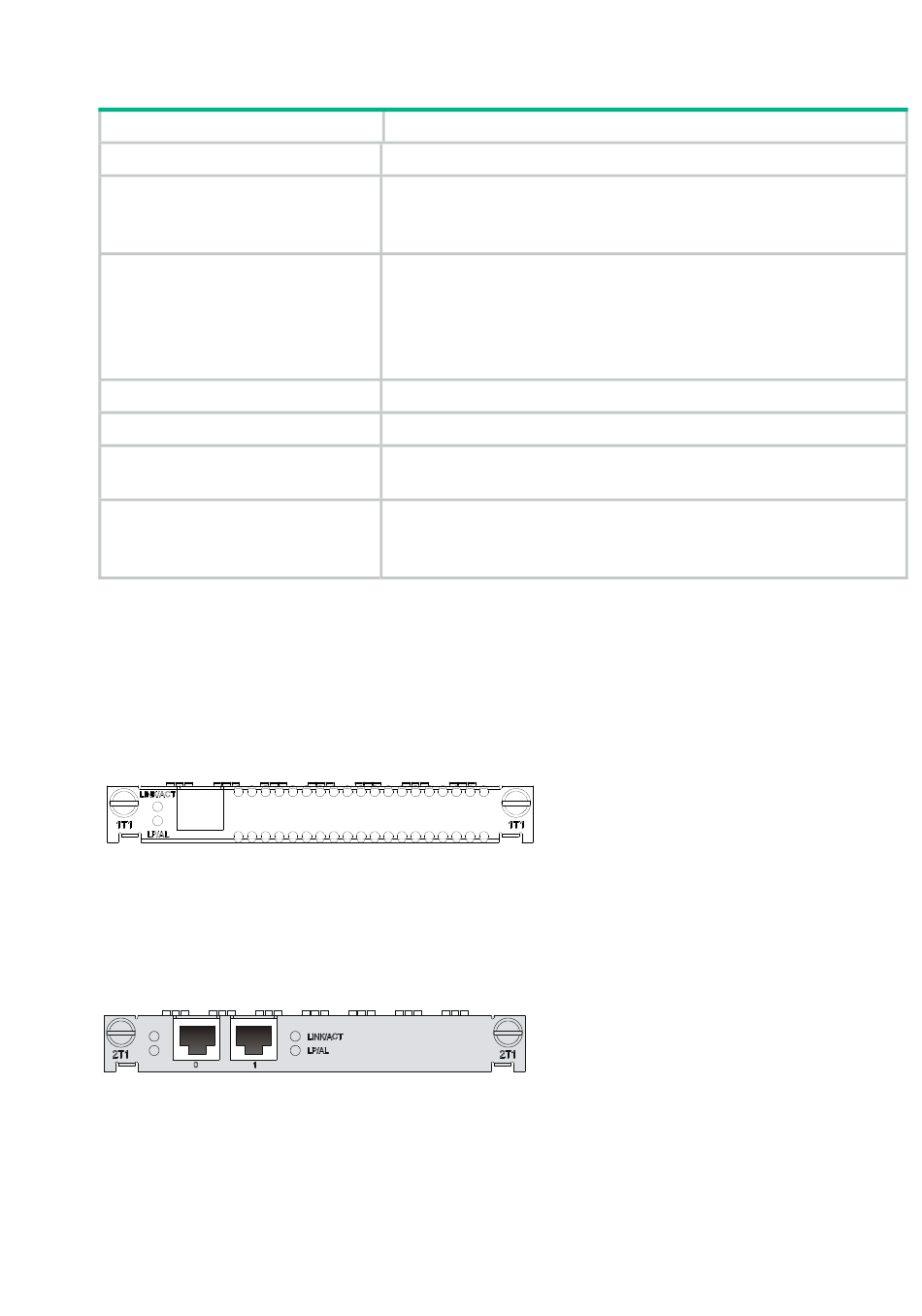

Table 95 Interface specifications
Item
Connector
Number of connectors
Interface standard
Interface rate
Cable type
Operating mode
Supported service

Interface LEDs

MIM-1T1 panel is similar to that of MIM-1T1-F. The following figure shows a MIM-1T1 panel.
Figure 76 MIM-1T1 panel
MIM-2T1 panel is similar to that of MIM-2T1-F, and they differ only in module name. The following
figure shows a MIM-2T1 panel.
Figure 77 MIM-2T1 panel
MIM-4T1 panel is similar to that of MIM-4T1-F, and they differ in silk-screen. The following figure
shows a MIM-4T1 panel.
Description
RJ-45
•
1 (MIM-1T1/MIM-1T1-F module)
•
2 (MIM-2T1/MIM-2T1-F module)
•
4 (MIM-4T1/MIM-4T1-F module)
•
G.703/T1.102
•
G.704
•
AT & T TR 54016
•
AT & T TR 62411
•
ANSI T1.403
1.544 Mbps
T1 cable (100-ohm shielding network cable)
•
CT1, ISDN PRI (MIM-1T1/MIM-2T1/MIM-4T1 module)
•
FT1 (MIM-1T1-F/MIM-2T1-F/MIM-4T1-F module)
•
Backup
•
Terminal access service
•
ISDN PRI (MIM-1T1/MIM-2T1/MIM-4T1 module)
