FIC-1CT3

Introduction
The 1-port channelized/non channelized T3 interface module (FIC-1CT3) delivers these functions:
•
In T3 mode, transmitting, receiving, and processing one channel of T3 fast traffic; providing T3
traffic access.
•
In CT3 mode, providing the subscribers with N No 64 kbps or N No 56 kbps low-speed access,
where N is smaller than or equal to 128.
NOTE:
T3 represents the tertiary group rate of T system in the TDM system, that is, 44.736 Mbps. Through
T23 and T12A demultiplexing, a T3 channel can be channelized into 28 T1 lines, each also
supporting the operating mode of CT1. T23 means either T2-to-T3 multiplex or T3-to-T2
demultiplex, and T12 means T1-to-T2 multiplex or T2-to-T1 demultiplex. "T23" and "T12" discussed
here represent the demultiplex process.
Interface specifications
Table 170 Interface specifications
Item
Connector
Number of connectors
Interface standard
Interface rate
Cable
Operating mode
Supported service
Interface LEDs

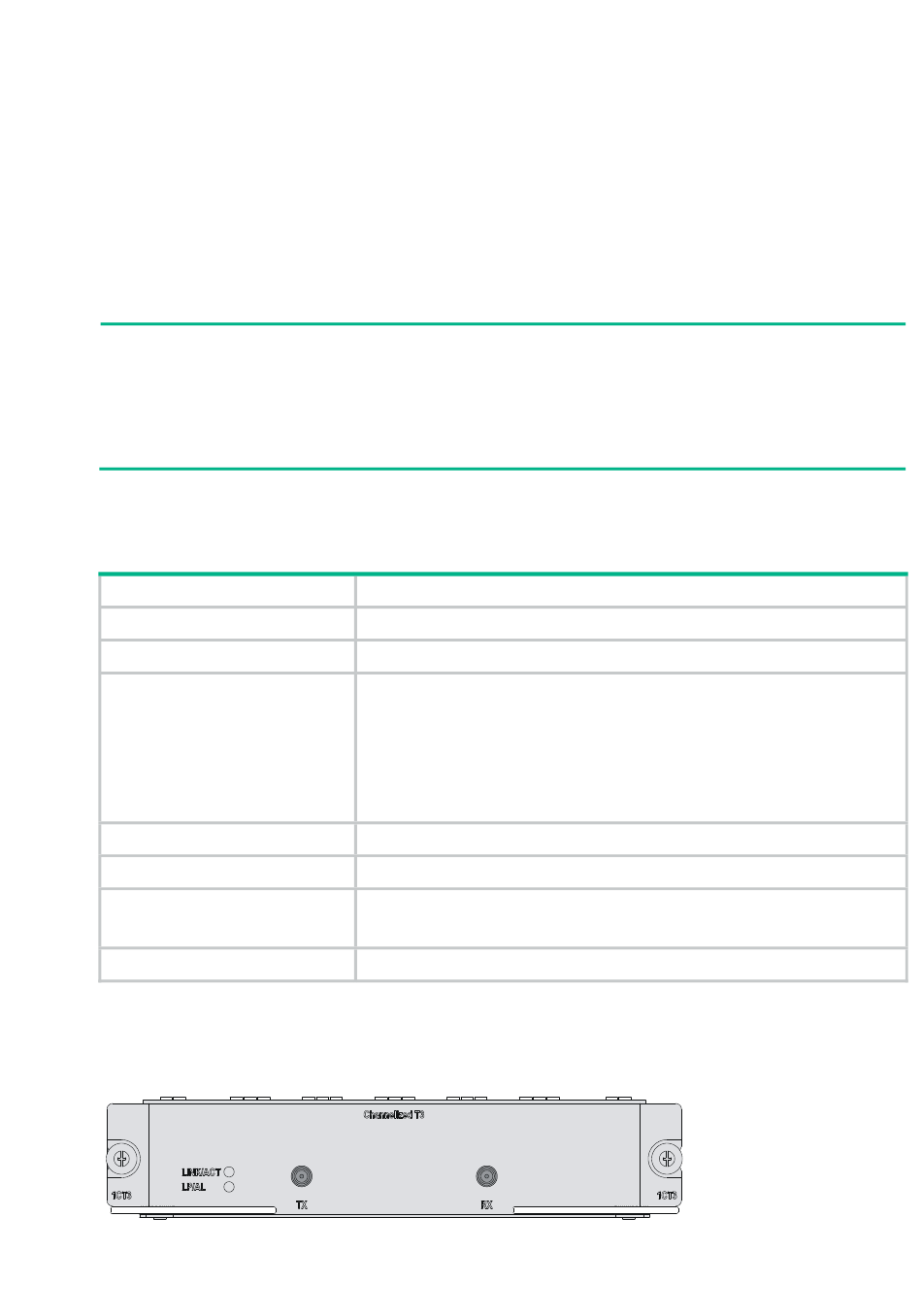

Figure 143 FIC-1CT3 panel
Description
SMB
2
•
G.703
•
G.704
•
G.752
•
AT & T TR 54014
•
AT & T TR 62415
•
ANSI T1.107
44.736 Mbps
T3 cable (75-ohm coaxial cable)
T3
CT3
T3 leased line
125
