H3C PSR250-12A1-D Power Modules User Manual-5PW104
Functions
Product code and model
Product code
PSR250-12A1-D

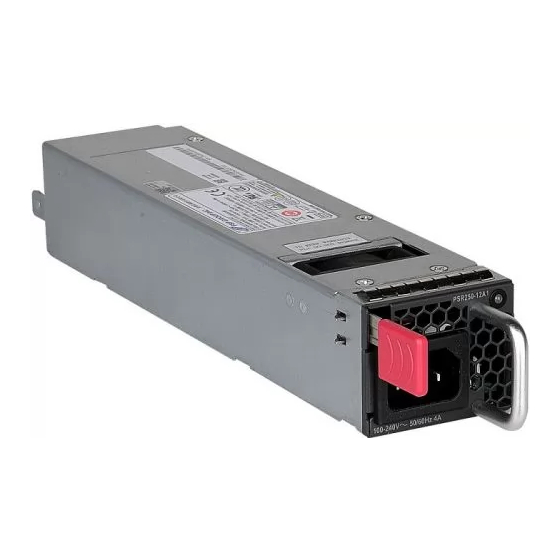

PSR250-12A1-D is an AC input and DC output power module with a
maximum of 250 W power output. It provides port-side intake and power
module-side exhaust airflows.
The PSR250-12A1-D provides the following features:
Protection—Provides protection against input overcurrent, output current
limiting, input undervoltage, output overvoltage, output short circuit, and
overtemperature conditions.
Redundancy—Two power modules can be connected in parallel to achieve 1+1
redundancy and load sharing.
Hot swapping—You can install or remove a power module when the device is
operating correctly.
Protection feature
Output overvoltage
protection
Output current
limiting protection
Output short circuit
protection
Overtemperature
protection
Input undervoltage
protection
Product model
PSR250-12A1
Protection state
No power output and the power
module status LED is steady
red.
No power output and the power
module status LED is steady
red.
No power output and the power
module status LED is steady
red.
No power output and the power
module status LED is steady
red.
No power output and the power
module status LED is flashing
red.
Restoration
Power supply restores only when you
reconnect the power cord to the
power source. The power module
status LED is steady green.
Power supply restores after the issue
is resolved. The power module status
LED is steady green.
Power supply restores after the issue
is resolved. The power module status
LED is steady green.
Power supply restores after the issue
is resolved. The power module status
LED is steady green.
Power supply restores after the issue
is resolved. The power module status
LED is steady green.
1
BOM: 3104A0P3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PSR250-12A1-D and is the answer not in the manual?

Questions and answers

Summary of Contents for H3C PSR250-12A1-D

  • Page 1 Product code Product model PSR250-12A1-D PSR250-12A1 PSR250-12A1-D is an AC input and DC output power module with a maximum of 250 W power output. It provides port-side intake and power module-side exhaust airflows. The PSR250-12A1-D provides the following features: •...
  • Page 2: Specifications

    Status LED Latch Handle Power input receptacle Power module status LED An PSR250-12A1-D has a status LED on its front panel. The following table lists the LED status and description. LED status Description Steady green The power module is operating correctly.
  • Page 3: Installing And Removing A Power Module

    LED status Description • The power module does not have power input. The device is installed with two power modules. If one has power input, but the other does not, the status LED on the power module that does not Flashing red have power input flashes red.
  • Page 4: Connecting A Power Cord

    Install the power module Connect the power cord Turn on the circuit breaker (1) Wear an ESD wrist strap and make sure the strap makes good skin contact and is reliably grounded. (2) Remove the filler panel, if any, from the target power module slot. Keep the filler panel secure for future use.
  • Page 5: Removing A Power Module

    (1) Connect the female connector of the power cord to the power receptacle on the power module. (2) Use a releasable cable tie to secure the power cord to the power module handle. (3) Connect the other end of the power cord to an AC power source, and then turn on the circuit breaker.
  • Page 6 If you are not to install a new power module, install a filler panel in the slot to prevent dust from entering the chassis. Copyright © 2023, New H3C Technologies Co., Ltd. The information in this document is subject to change without notice.
