NOTE:
For a FIC-8E1 module, the system automatically creates a serial interface for each timeslot bundle
formed on a controller E1 interface.
Interface specifications
Table 162 Interface specifications
Item
Connector
Number of connectors
Interface standard
Interface rate
Cable type
Operating mode
Supported service
Interface LEDs

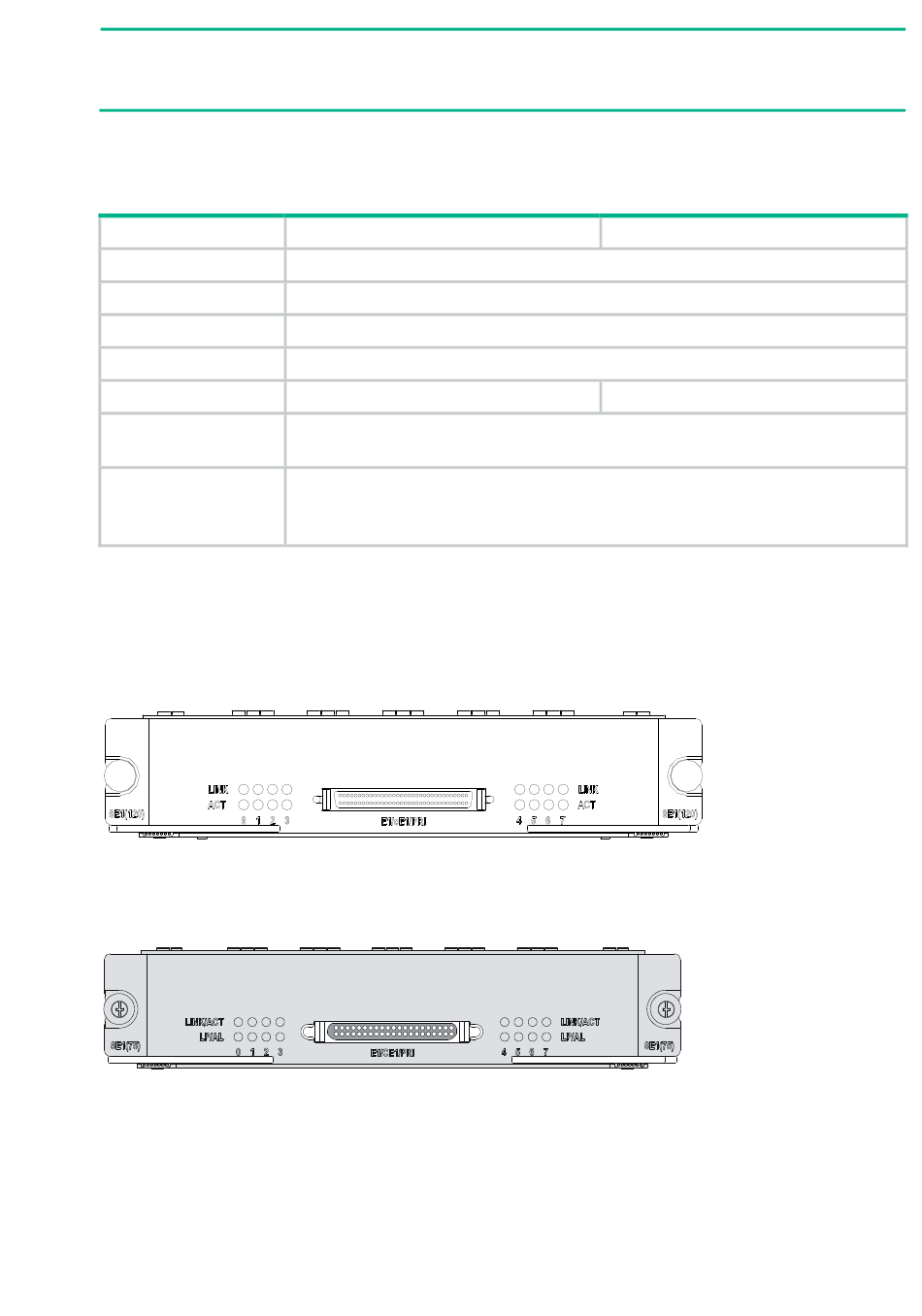

FIC-8E1 and FIC-8E1-F panels are similar. The following figures illustrate the FIC-8E1 panels.
Figure 133 FIC-8E1 (120-ohm) panel
Figure 134 FIC-8E1 (75-ohm) panel
FIC-8E1/FIC-8E1-F (75-ohm)
DB-68
1
G.703
2.048 Mbps
75-ohm 8E1 conversion cable
•
E1, CE1, ISDN PRI (only supported by the FIC-8E1)
•
FE1 (only supported by the FIC-8E1-F)
•
Backup
•
Terminal access service
•
ISDN PRI (only supported by the FIC-8E1)
118
FIC-8E1/FIC-8E1-F (120-ohm)
120-ohm 8E1 conversion cable
