NOTE:
Strictly follow the pinouts in the above tables when identifying or making the two types of Ethernet
cables; otherwise, the communication quality may be affected.
Connecting an Ethernet cable
Connect one end of an Ethernet cable to an Ethernet interface on the module and the other end
1.
to the Ethernet interface on the peer device. Because the Ethernet interface of the module
supports MDI/MDIX autosensing, you can use a straight-through cable or crossover cable to
connect the interface.
Check the status of the LED of the Ethernet interface after power-on. For the status of the LED,
2.
see the relevant part in this manual.

Fiber port

Appearances and applicable models of transceiver modules and optical fibers
Optical interfaces must work with SFP transceiver modules and optical fibers with LC connectors.

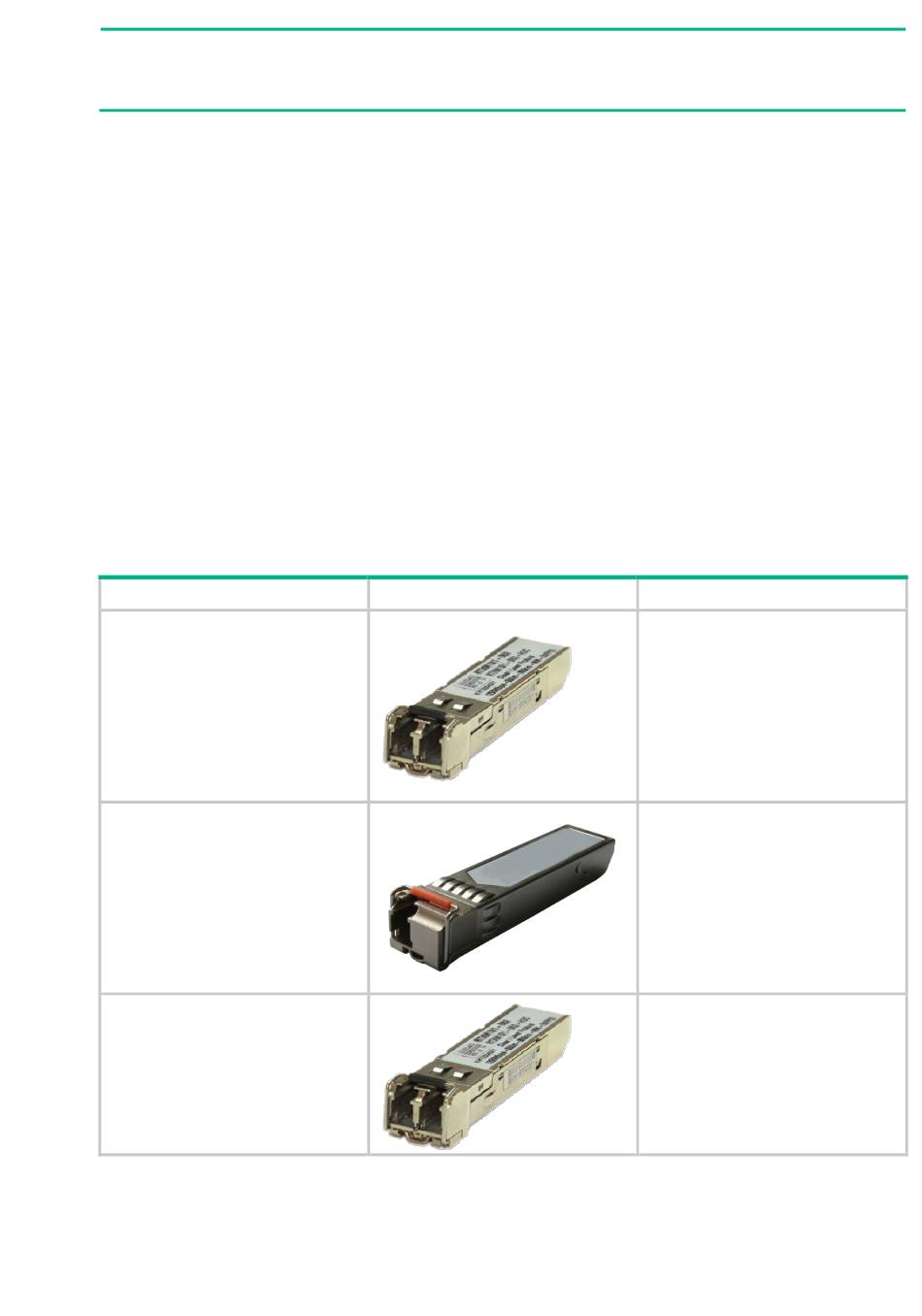

Table 218 Ethernet cable appearance and applicable models
Cable
100-Mbps SFP transceiver
module
100-Mbps BIDI transceiver
module
1000-Mbps SFP transceiver
module
Appearance
160
Applicable models
SIC-1FEF
MIM-1POS
MIM-1CPOS
FIC-1POS
FIC-1CPOS
MIM-1ATM-OC3
FIC-1ATM-OC3
SIC-1FEF
MIM-1POS
MIM-1CPOS
FIC-1POS
FIC-1CPOS
MIM-1ATM-OC3
FIC-1ATM-OC3
SIC-1GEC
MIM-1GEF
MIM-2GEF
FIC-1GEF
FIC-2GEF
