Interface LEDs

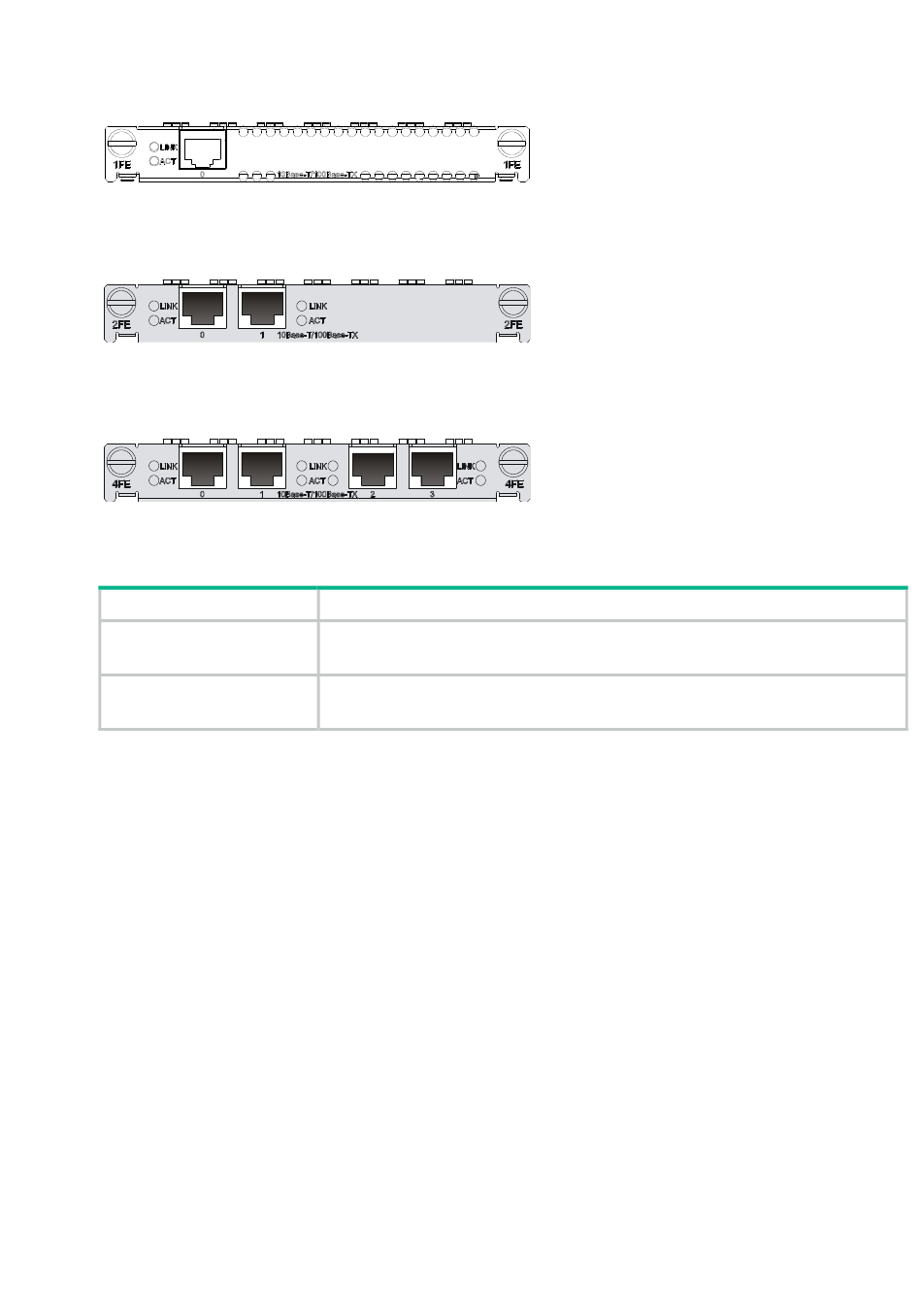

Figure 54 MIM-1FE panel
Figure 55 MIM-2FE panel
Figure 56 MIM-4FE panel
Table 72 LED description
LED
LINK
ACTIVE
Interface cables and the connection methods
For more information about Ethernet interface cables and the connection methods, see
interface."

MIM-1GBE/MIM-2GBE

Introduction
The 1-port 10Base-T/100Base-TX/1000Base-T Ethernet copper port module (MIM-1GBE) and
2-port 10Base-T/100Base-TX/1000Base-T Ethernet copper port module (MIM-2GBE) serve to
complete the communication between a router and a LAN.
The GBE (Gigabit Ethernet) supports:
•
Transmission distance up to 100 m (328.08 ft) over the category 5 twisted-pair cable
•
Operating speeds of 1000 Mbps, 100 Mbps, and 10 Mbps, as well as autosensing
•
Half-duplex/full duplex, autosensing
Description
•
Off: The Ethernet link is not connected.
•
On: The link is connected.
•
Off: No data is being transmitted or received.
•
Flashing: Data is being received or/and transmitted.
53
"Ethernet
