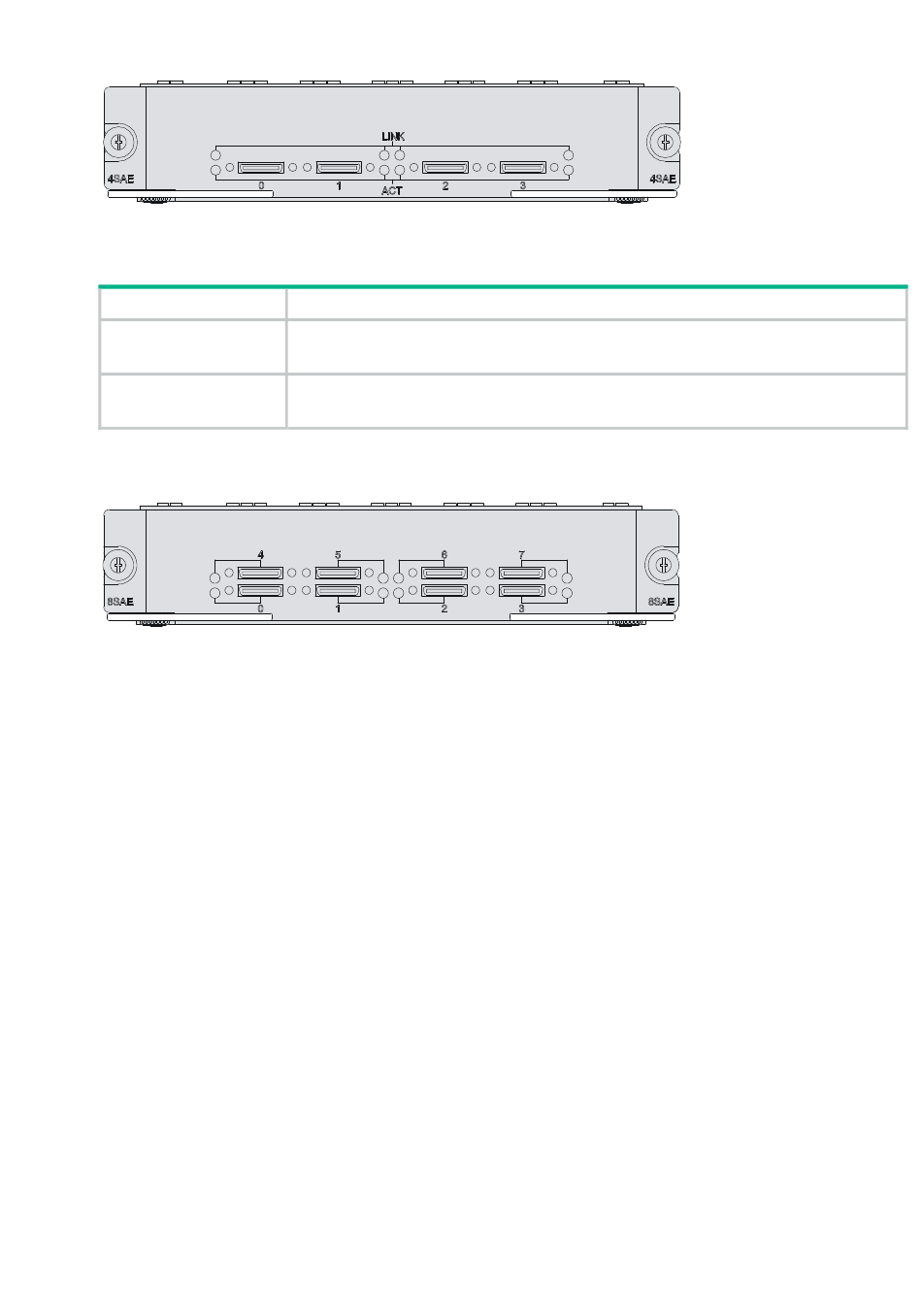

Figure 149 FIC-4SAE panel
Table 181 LED description
LED
LINK
ACT
Figure 150 FIC-8SAE front panel
The FIC-8SAE module provides an LED for each channel. When the LED is on, a link is present.
When the LED is flashing, data is being transmitted and/or received.
Interface cables and the connection methods
For more information about asynchronous serial port cables and the connection methods, see
"Asynchronous serial

FIC-8ASE/FIC-16ASE

Introduction
The 8-/16-port enhanced asynchronous serial interface module (FIC-8ASE/FIC-16ASE) transmits,
receives, and processes data traffic on asynchronous serial interfaces. Each asynchronous serial
interface can operate at a speed as fast as 115.2 kbps, supporting terminal access service and
asynchronous leased line. In addition, these asynchronous serial interfaces can serve as the dialup
access servers for the small and medium-sized ISPs to interconnect eight (using the FIC-8ASE) or
16 (using the FIC-16ASE) LANs through asynchronous dialup lines.
Description
•
Off: No link is present;
•
On: A link is present.
•
Off: No data is being transmitted or received.
•
Flashing: Data is being transmitted and/or received.
ports."
