a. Connect one end of the cable to the RJ-11 interface on the MIM-1SHL-4W interface
module.
b. Connect the other end of the cable to the network device.
WLAN interface
Antennas for WLAN interface modules

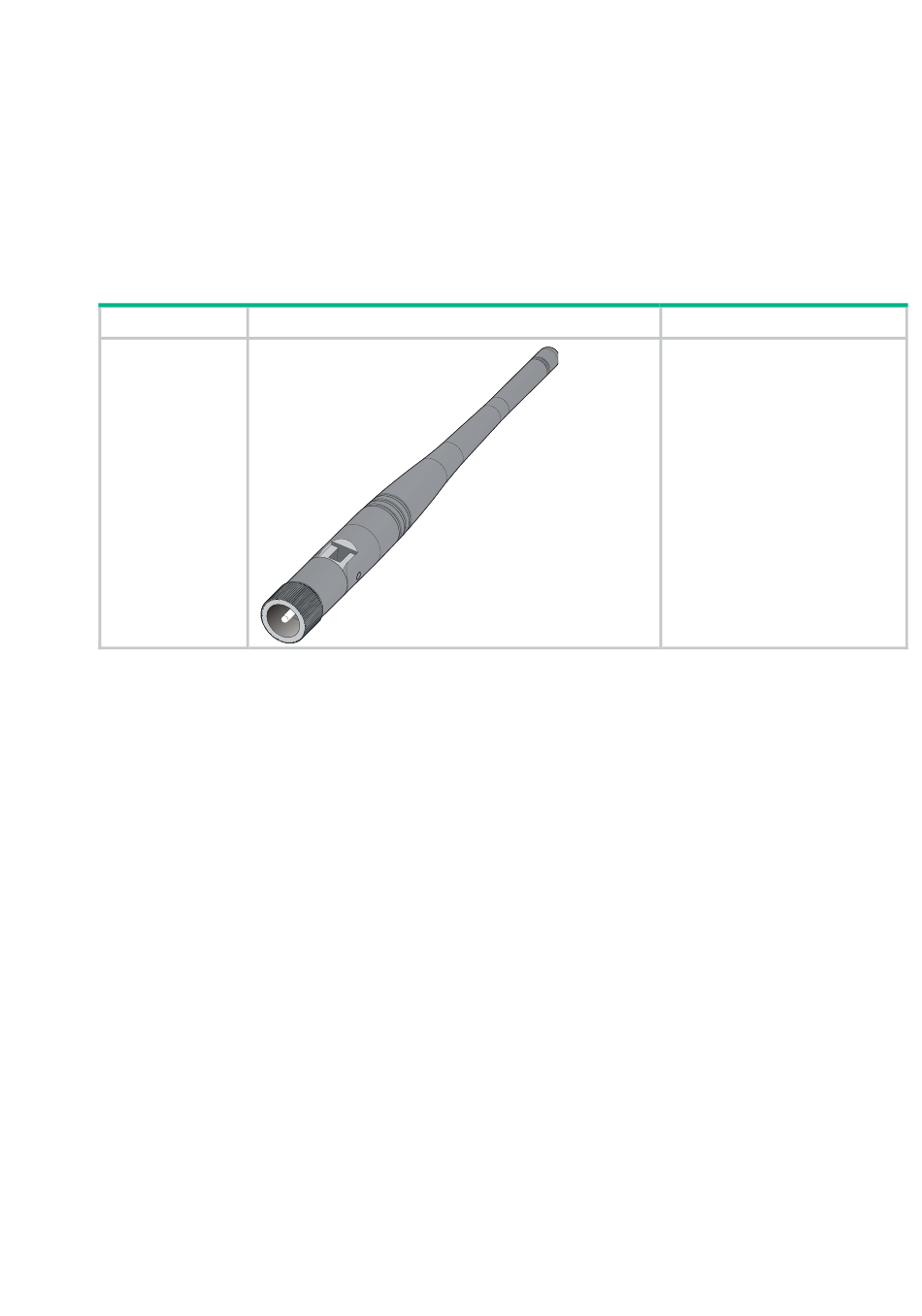

Table 235 Antennas for WLAN interface modules
Item
Antenna
Connecting an antenna for a WLAN interface module
Unfold the antenna to 180º.
1.
Attach the antenna to the antenna port on the WLAN interface module. To avoid damage, do
2.
not use excessive force.
Fold the antenna to an angle of 90º so that the antenna is vertical to the ground or ceiling to
3.
achieve optimal coverage.
Appearance
190
Applicable models
SIC-WLAN-b/g/n
