How to Program
press [OK]. Information is displayed about the condition of
the frequency converter before it enters the alarm mode.
[Back]
returns to the previous step or layer in the navigation
structure.
[Cancel]
Last change or command is cancelled as long as the
display has not been changed.
[Info]
supplies information about a command, parameter, or
function in any display window. [Info] provides detailed
information whenever help is needed.
Exit Info mode by pressing either [Info], [Back], or [Cancel].

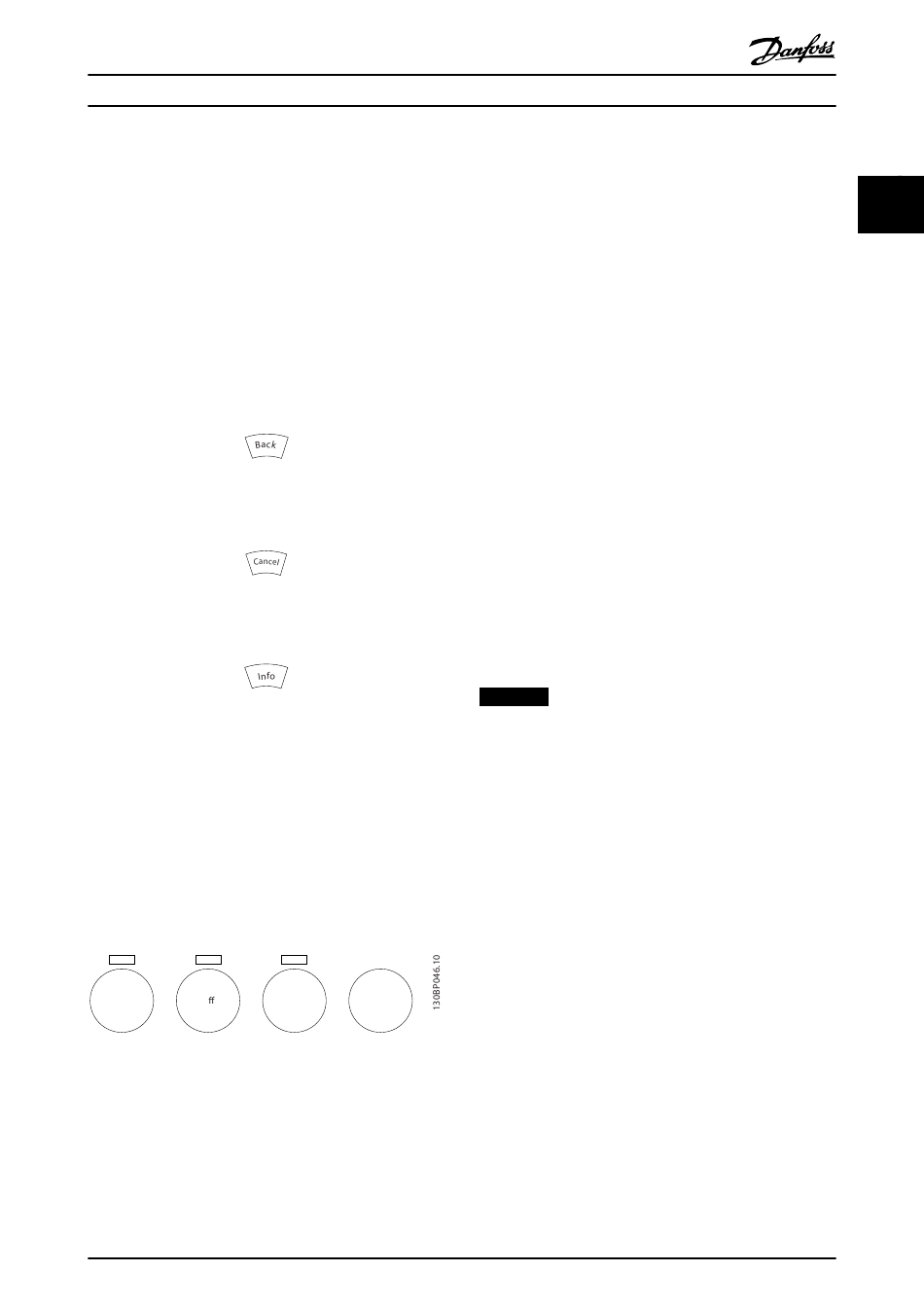

Illustration 2.5 Back
Illustration 2.6 Cancel
Illustration 2.7 Info
Navigation keys
The 4 navigation keys are used to navigate between the
different choices available in [Quick Menu], [Main Menu]
and [Alarm Log]. Use the keys to move the cursor.
[OK]
is used for selecting a parameter marked by the cursor and
for enabling the change of a parameter.
Local control keys
for local control are found at the bottom of the LCP.
Hand
O
on
Illustration 2.8 Local Control Keys
[Hand On]
enables control of the frequency converter via the LCP.
[Hand On] also starts the motor, and it is now possible to
enter the motor speed data with the arrow keys. The key
can be selected as [1] Enable or [0] Disable via 0-40 [Hand
on] Key on LCP
MG33MJ02
Programming Guide
Auto
Reset
on
Danfoss A/S © Rev. 10/2014 All rights reserved.
External stop signals activated with control signals or a
serial bus override a start command via the LCP.
The following control signals are still active when [Hand
On] is activated.
•
[Hand on] - [Off] - [Auto On]
•
Reset
•
Coasting stop inverse
•
Reversing
•
Set-up select bit 0 - Set-up select bit 1
•
Stop command from serial communication
•
Quick stop
•
DC brake
[Off]
stops the connected motor. The key can be selected as [1]
Enable or [0] Disable via parameter 0-41 [Off] Key on LCP. If
no external stop function is selected and the [Off] key is
inactive, the motor can be stopped by disconnecting the
voltage.
[Auto On]
enables the frequency converter to be controlled via the
control terminals and/or serial communication. When a
start signal is applied on the control terminals and/or the
bus, the frequency converter starts. The key can be
selected as [1] Enable or [0] Disable via
parameter 0-42 [Auto on] Key on LCP.
NOTICE
An active HAND-OFF-AUTO signal via the digital inputs
has higher priority than the control keys [Hand On] –
[Auto On].
[Reset]
is used for resetting the frequency converter after an alarm
(trip). It can be selected as [1] Enable or [0] Disable via
parameter 0-43 [Reset] Key on LCP.
The parameter shortcut can be carried out by holding
down the [Main Menu] key for 3 seconds. The parameter
shortcut provides direct access to any parameter.
2.1.2 Quick Transfer of Parameter Settings
between Multiple Frequency
Converters
Once the set-up of a frequency converter is complete,
store the data in the LCP or on a PC via MCT 10 Set-up
Software Tool.
