Danfoss VLT AutomationDrive FC 302 Programming Manual page 77

Parameter Descriptions
Speed
P 3-95
Dec
Inc

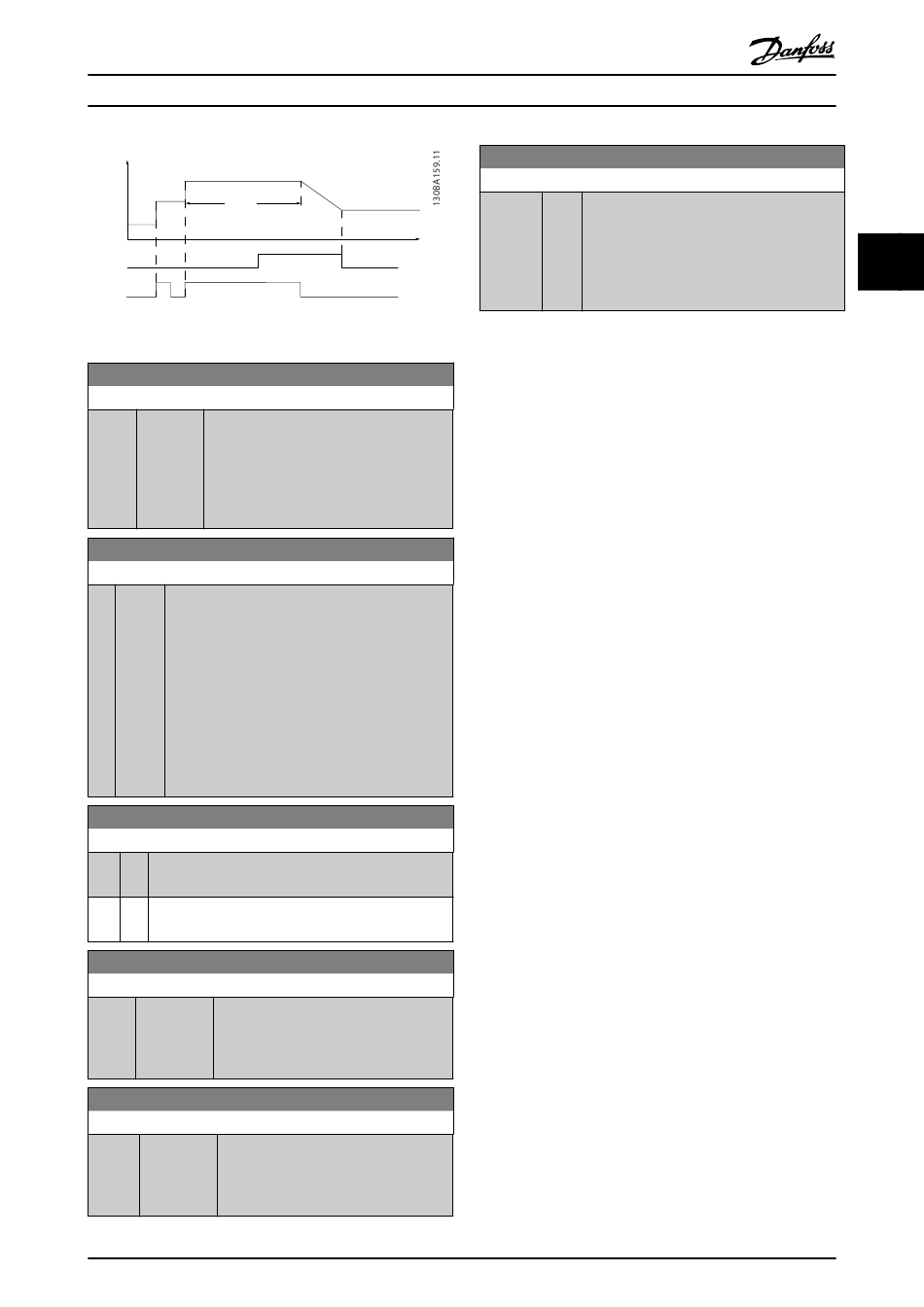

Illustration 3.30 Increase/Decrease Actual Reference
3-90 Step Size
Range: Function:
0.10 [0.01 - Enter the increment size required for
% 200 %] Increase/Decrease, as a percentage of the
*
synchronous motor speed, n
Decrease is activated, the resulting reference
is increased/decreased by the amount set in
this parameter.
3-91 Ramp Time
Range: Function:
1 [0 - Enter the ramp time, i.e. the time for adjustment of
s 3600 s] the reference from 0% to 100% of the specified
*
digital potentiometer function (Increase, Decrease
or Clear).
If Increase/Decrease is activated for longer than the
ramp delay period specified in
parameter 3-95 Ramp Delay, the actual reference is
ramped up/down according to this ramp time. The
ramp time is defined as the time used to adjust the
reference by the step size specified in
parameter 3-90 Step Size.
3-92 Power Restore
Option: Function:
[0] Off Resets the digital potentiometer reference to 0% after
*
power-up.
[1] On Restores the most recent digital potentiometer
reference at power-up.
3-93 Maximum Limit
Range: Function:
100 % [-200 - 200 Set the maximum permissible value for
*
%] the resultant reference. This is advisable if
the digital potentiometer is used for fine-
tuning of the resulting reference.
3-94 Minimum Limit
Range: Function:
-100 % [-200 - 200 Set the minimum permissible value for
*
%] the resulting reference. This is advisable if
the Digital Potentiometer is used for fine-
tuning of the resulting reference.
MG33MJ02
Programming Guide
3-95 Ramp Delay
Range:
Size
related
*
Time (s)
. If Increase/
s
Danfoss A/S © Rev. 10/2014 All rights reserved.
Function:
[ 0 - Enter the delay required from activation of the
0] digital potentiometer function until the
frequency converter starts to ramp the
reference. With a delay of 0 ms, the reference
starts to ramp as soon as Increase/Decrease is
activated. See also parameter 3-91 Ramp Time.
3 3
75
