Parameter Descriptions
16-71 Relay Output [bin]
Range: Function:
0 [0 - 511 ] View the settings of all relays.
*

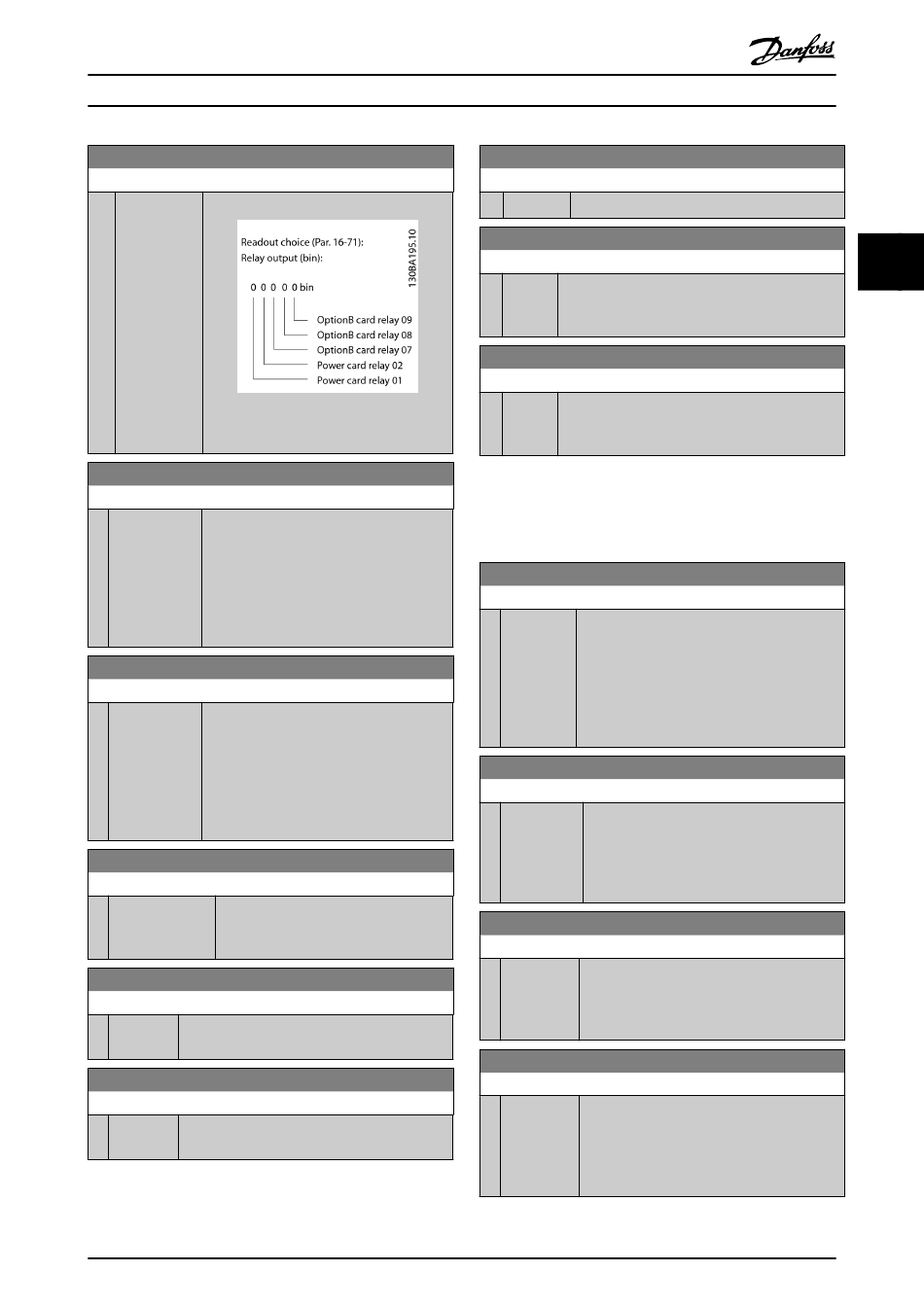

Illustration 3.63 Relay Settings
16-72 Counter A
Range: Function:
0 [-2147483648 View the present value of Counter A.
*
- 2147483647] Counters are useful as comparator operands,
see parameter 13-10 Comparator Operand.
The value can be reset or changed either via
digital inputs (parameter group 5-1* Digital
Inputs) or by using an SLC action
(parameter 13-52 SL Controller Action).
16-73 Counter B
Range: Function:
0 [-2147483648 View the present value of Counter B.
*
- 2147483647] Counters are useful as comparator operands
(parameter 13-10 Comparator Operand).
The value can be reset or changed either via
digital inputs (parameter group 5-1* Digital
Inputs) or by using an SLC action
(parameter 13-52 SL Controller Action).
16-74 Prec. Stop Counter
Range: Function:
0 [0 - 2147483647] Returns the actual counter value of
*
precise counter (parameter 1-84 Precise
Stop Counter Value).
16-75 Analog In X30/11
Range: Function:
0 [-20 - 20 ] View the actual value at input X30/11 of MCB
*
101.
16-76 Analog In X30/12
Range: Function:
0 [-20 - 20 ] View the actual value at input X30/12 of MCB
*
101.
MG33MJ02
Programming Guide
16-77 Analog Out X30/8 [mA]
Range:
0 [0 - 30 ]
*
16-78 Analog Out X45/1 [mA]
Range:
0 [0 - 30] View the actual value at output X45/1. The value
*
16-79 Analog Out X45/3 [mA]
Range:
0 [0 - 30] View the actual value at output X45/3. The value
*
3.17.6 16-8* Fieldbus & FC Port
Parameters for reporting the bus references and control
words.
16-80 Fieldbus CTW 1
Range:
0 [0 -
*
65535 ]
16-82 Fieldbus REF 1
Range:
0 [-200 - 200 ] View the 2-byte word sent with the control
*
16-84 Comm. Option STW
Range:
0 [0 - 65535 ] View the extended fieldbus comm. option
*
16-85 FC Port CTW 1
Range:
0 [0 - 65535 ] View the 2-byte control word (CTW) received
*
Danfoss A/S © Rev. 10/2014 All rights reserved.
Function:
View the actual value at input X30/8 in mA.
Function:
shown reflects the selection in 6-70 Terminal X45/1
Output.
Function:
shown reflects the selection in 6-80 Terminal X45/3
Output.
Function:
View the 2-byte control word (CTW) received
from the bus master. Interpretation of the
control word depends on the fieldbus option
installed and the control word profile selected
in 8-10 Control Profile.
For more information, refer to the relevant
fieldbus manual.
Function:
word from the bus master to set the reference
value.
For more information, refer to the relevant
fieldbus manual.
Function:
status word.
For more information, refer to the relevant
fieldbus manual.
Function:
from the bus master. Interpretation of the
control word depends on the fieldbus option
installed and the control word profile selected
in 8-10 Control Profile.
