How to Program
2 2
Status
On
Warn.
Alarm
Hand
on

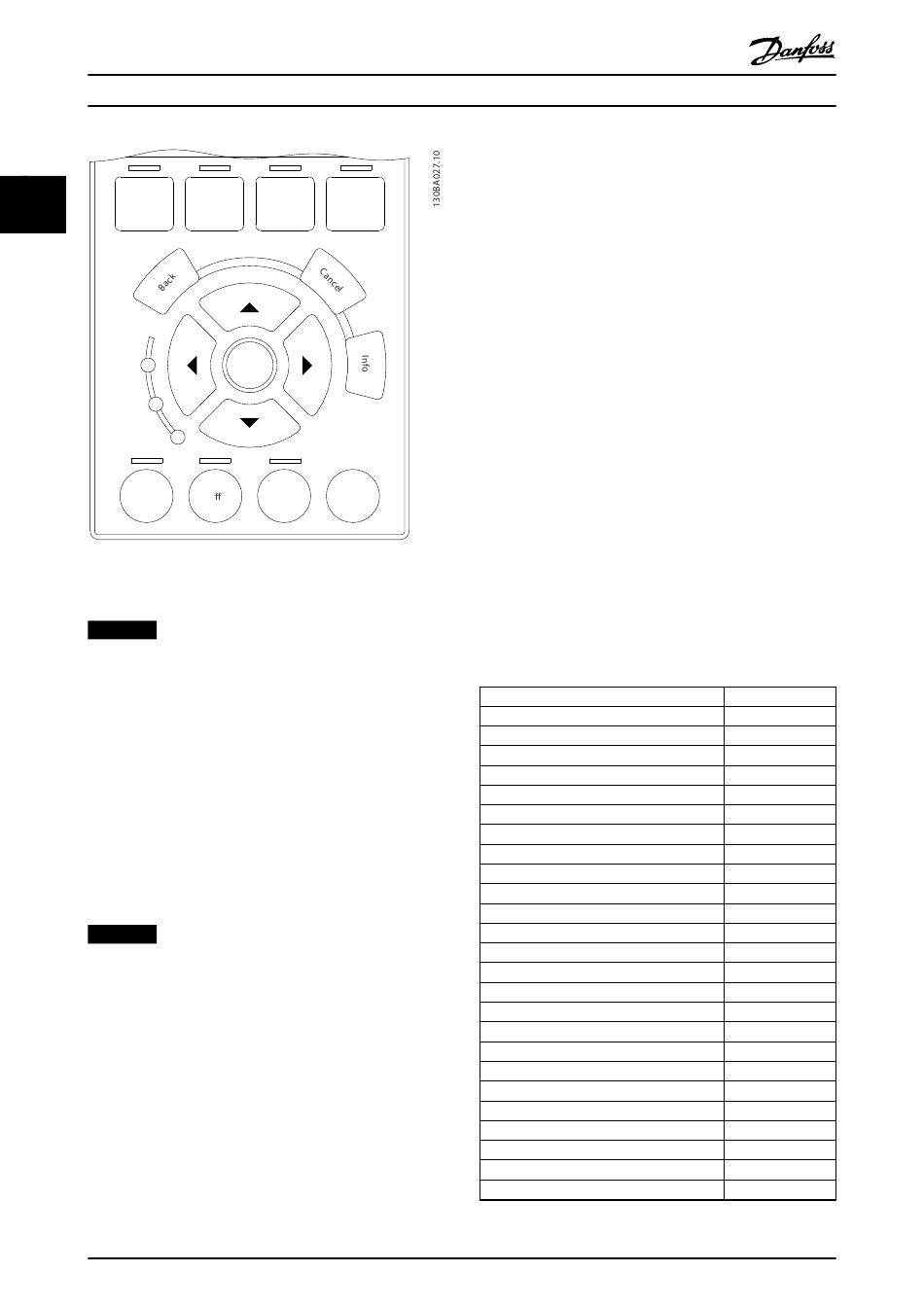

Illustration 2.9 LCP
Data storage in LCP
NOTICE
Stop the motor before performing this operation.
To store the data in the LCP:
1. Go to 0-50 LCP Copy .
2. Press the [OK] key.
3. Select [1] All to LCP.
4. Press the [OK] key.
All parameter settings are now stored in the LCP indicated
by the progress bar. When 100% is reached, press [OK].
Connect the LCP to another frequency converter and copy
the parameter settings to this frequency converter as well.
Data transfer from LCP to frequency converter
NOTICE
Stop the motor before performing this operation.
To store the data in the LCP:
1. Go to 0-50 LCP Copy.
2. Press the [OK] key.
3. Select [2] All from LCP.
4. Press the [OK] key.
The parameter settings stored in the LCP are now
transferred to the frequency converter indicated by the
progress bar. When 100% is reached, press [OK].
14
®
VLT
Alarm
Quick Main
Log
Menu Menu
OK
Auto
O Reset
on
Danfoss A/S © Rev. 10/2014 All rights reserved.
AutomationDrive FC 301/302

2.1.3 Display Mode

In normal operation, up to 5 different operating variables
can be indicated continuously in the middle section: 1.1,
1.2, and 1.3 as well as 2 and 3.
2.1.4 Display Mode - Selection of Read-
Outs
It is possible to toggle between 3 status read-out screens
by pressing [Status].
Operating variables with different formatting are shown in
each status screen further in this section.
Table 2.1 shows the measurements that can be linked to
each of the operating variables. When options are
mounted, additional measurements are available. Define
the links via parameter 0-20 Display Line 1.1 Small,
0-21 Display Line 1.2 Small, 0-22 Display Line 1.3 Small,
0-23 Display Line 2 Large, and 0-24 Display Line 3 Large.
Each readout parameter selected in parameter 0-20 Display
Line 1.1 Small to 0-24 Display Line 3 Large has its own scale
and digits after a possible decimal point. The larger the
numeric value of a parameter is, the fewer digits are
displayed after the decimal point.
Ex.: Current readout 5.25 A; 15.2 A 105 A.
Operating variable
Parameter 16-00 Control Word
Parameter 16-01 Reference [Unit]
Parameter 16-02 Reference [%]
Parameter 16-03 Status Word
Parameter 16-05 Main Actual Value [%]
Parameter 16-10 Power [kW]
Parameter 16-11 Power [hp]
Parameter 16-12 Motor Voltage
Parameter 16-13 Frequency
Parameter 16-14 Motor current
Parameter 16-16 Torque [Nm]
Parameter 16-17 Speed [RPM]
Parameter 16-18 Motor Thermal
Parameter 16-20 Motor Angle
Parameter 16-30 DC Link Voltage
Parameter 16-32 Brake Energy /s
Parameter 16-33 Brake Energy /2 min
Parameter 16-34 Heatsink Temp.
Parameter 16-35 Inverter Thermal
Parameter 16-36 Inv. Nom. Current
Parameter 16-37 Inv. Max. Current
Parameter 16-38 SL Controller State
parameter 16-39 Control Card Temp.
Parameter 16-40 Logging Buffer Full
Parameter 16-50 External Reference
Unit
hex
[unit]
%
hex
%
[kW]
[hp]
[V]
[Hz]
[A]
Nm
[RPM]
%
V
kW
kW
C
%
A
A
C
