*SRE (Service Request Enable)

Command Syntax
*SRE <mask>
<mask> ::= integer with values defined in the following table.
The *SRE command sets the bits in the Service Request Enable Register. The
Service Request Enable Register contains a mask value for the bits to be enabled
in the Status Byte Register. A one in the Service Request Enable Register enables
the corresponding bit in the Status Byte Register. A zero disables the bit.

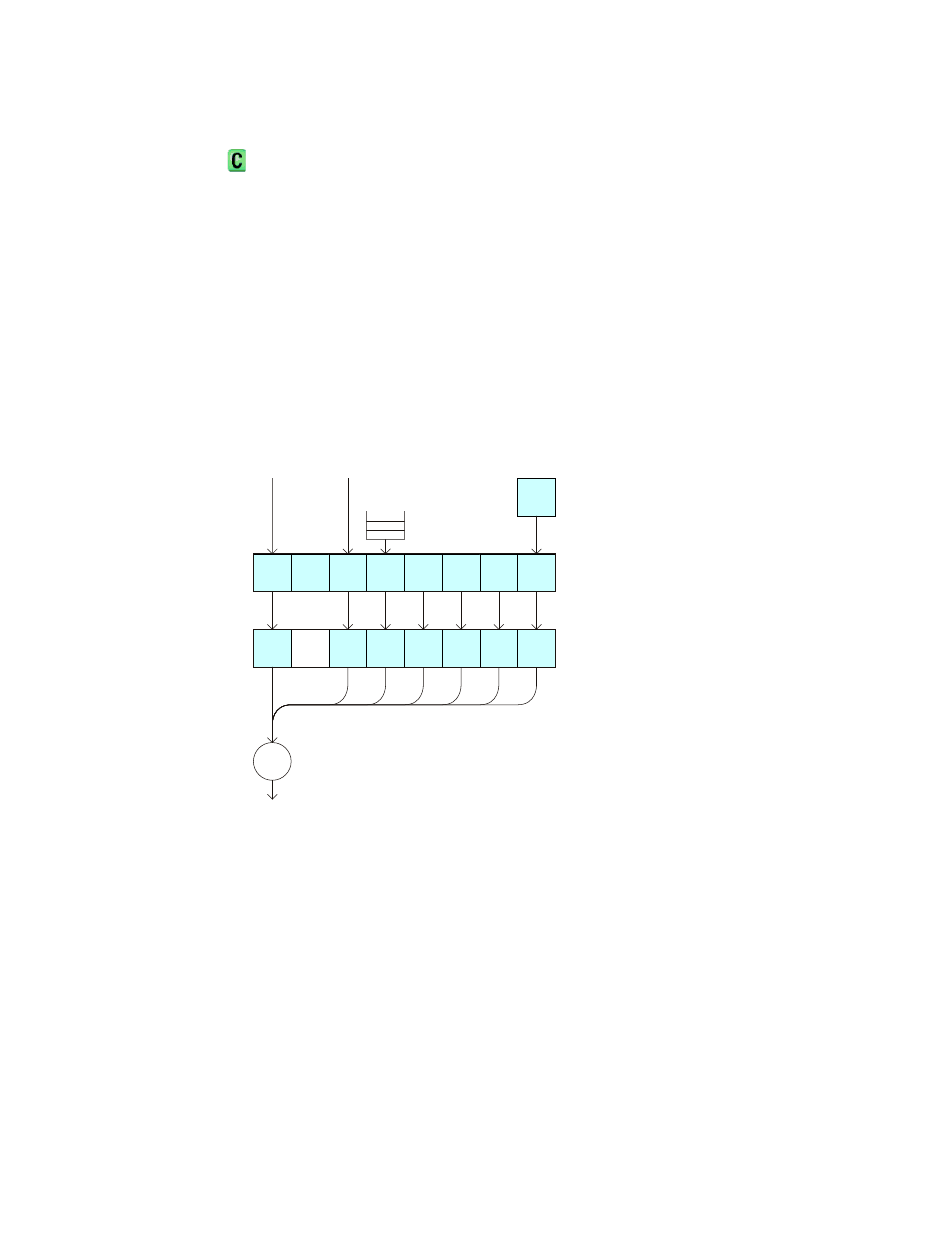

OR
216
(see page 1428)
From
From
Standard
Operation
Ev ent
Status
Status
Registers
Registers
Output
Queue
R Q S/
O PE R E S B MAV
MSS
7 6 5 4
+
SR Q Se rvice Request
TR G
Reg TER ?
MSG USR TR G *STB?
3 2 1 0
*SRE
*SRE?
Keysight InfiniiVision 4000 X-Series Oscilloscopes Programmer's Guide
Trigge r Ev ent Register
Status Byte Register
Se rvice Request Enable
(Mask) Register
