- Page 1 Keysight Infiniium 9000 Series Oscilloscopes User’s Guide Distributed by: dataTec ▪ Ferdinand-Lassalle-Str. 52 ▪ 72770 Reutlingen ▪ Tel. 07121 / 51 50 50 ▪ Fax 07121 / 51 50 10 ▪ info@datatec.de ▪ www.datatec.de...
- Page 2 Notices Technology Licenses © Keysight Technologies 2009, 2012, 2016, than Limited Rights as defined in FAR 27.401 2017 or DFAR 227.7103-5 (c), as applicable in any The hardware and/or software described in technical data. No part of this manual may be reproduced in...
-

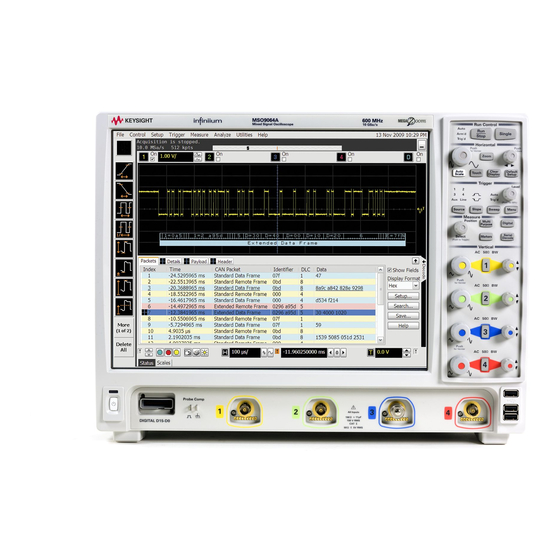

Page 3: Infiniium 9000 Series Oscilloscopes-At A Glance
100 Mpts/50 Mpts DSO9054H 500 MHz 100 Mpts/50 Mpts DSO9104H 1 GHz 100 Mpts/50 Mpts DSO9204H 2 GHz 100 Mpts/50 Mpts DSO9024H, DSO9054H, DSO9104H, and DSO9204H models have up to 12 bits of high resolution. Keysight Infiniium 9000 Series Oscilloscopes User’s Guide... - Page 4 Ease of use with high performance • The Keysight Technologies Infiniium oscilloscopes combine unprecedented ease-of-use with high-performance digitizing oscilloscope functionality to simplify your design and analysis measurement tasks. • Traditional oscilloscope front-panel interface provides direct access to the controls needed for most troubleshooting tasks.
- Page 5 Marker and quick measurements help measure waveform parameters • Use waveform markers 1 and 2 to check voltage or -time at any point on the Δ displayed waveform. For more information about Infiniium oscilloscopes, see www.keysight.com/find/scope. Keysight Infiniium 9000 Series Oscilloscopes User’s Guide...
-
Page 6: In This Guide
Keysight Infiniium Oscilloscopes Programmer’s Guide found in the Infiniium oscilloscope application’s online help. • For information on testing and servicing the oscilloscope, see the Service Guide found in the Infiniium oscilloscope application’s online help. Keysight Infiniium 9000 Series Oscilloscopes User’s Guide... -
Page 7: Table Of Contents
Contents Infiniium 9000 Series Oscilloscopes—At a Glance / 3 In This Guide / 6 1 Setting Up the Oscilloscope Safety / 10 Symbols / 11 Inspecting Package Contents / 12 Environmental Characteristics / 13 Ventilation / 14 Connecting Accessories and Cables / 16... - Page 8 Saving and Printing Data / 44 Forcing a Default Setup / 45 3 Online Help and Other Information Accessing the Online Help / 47 Navigating the Online Help / 49 Using the Demo Wizard / 50 Keysight Infiniium 9000 Series Oscilloscopes User’s Guide...
-
Page 9: Setting Up The Oscilloscope
Keysight Infiniium 9000 Series Oscilloscopes User’s Guide 1 Setting Up the Oscilloscope Safety Inspecting Package Contents Environmental Characteristics Ventilation Connecting Accessories and Cables Connecting Power Connecting Oscilloscope Probes Tilting the Oscilloscope for Easier Viewing Turning On the Oscilloscope Verifying Basic Oscilloscope Operation... -
Page 10: Safety
This product must be used in a normal condition (in which all means for protection are intact) only. No operator-serviceable parts inside. Refer servicing to qualified personnel. To WARNING prevent electrical shock, do not remove covers. Keysight Infiniium 9000 Series Oscilloscopes User’s Guide... -
Page 11: Symbols
The symbol on all primary and secondary packaging indicates compliance to China standard GB 18455-2001. To return unwanted products, contact your local Keysight office. The CSA mark is a registered trademark of the CSA International. Keysight Infiniium 9000 Series Oscilloscopes User’s Guide... -
Page 12: Inspecting Package Contents
• If the shipping container is damaged, or the cushioning materials show signs of stress, notify the carrier and your Keysight Technologies Sales Office. Keep the shipping materials for the carrier’s inspection. The Keysight Technologies Sales Office will arrange for repair or replacement at Keysight’s option without waiting for claim settlement. -
Page 13: Environmental Characteristics
The mains supply voltage fluctuations are not to exceed ±10% of the nominal supply voltage. Pollution degree The Infiniium 9000 Series oscilloscopes may be operated in environments of Pollution Degree 2. Pollution degree Pollution Degree 1: No pollution or only dry, non-conductive pollution occurs. The definitions pollution has no influence. -
Page 14: Ventilation
CAUTION consider the convection flow into and out of the cabinet. Also consider the individual instruments, to avoid having the heated discharge of one instrument become the cooling intake air for another instrument. Keysight Infiniium 9000 Series Oscilloscopes User’s Guide... - Page 15 (The front panel switch is only a standby switch and is not a LINE switch.) Alternatively, an externally installed switch or circuit breaker (which is readily identifiable and is easily reached by the operator) may be used as a disconnecting device. Keysight Infiniium 9000 Series Oscilloscopes User’s Guide...
-
Page 16: Connecting Accessories And Cables
If you have a serial printer, you will need a 9-pin to 25-pin serial printer cable. Some printers may require other cable configurations, but the oscilloscope has a 9-pin serial connector. Connect the cable into the RS-232 port. Keysight Infiniium 9000 Series Oscilloscopes User’s Guide... - Page 17 Setting Up the Oscilloscope Mouse PS/2 port Keyboard PS/2 Port Removable Hard Drive Serial printer port XGA video Parallel printer output port USB ports LAN port USB cable AC power input Figure 2 Side panel Keysight Infiniium 9000 Series Oscilloscopes User’s Guide...
-
Page 18: Connecting Power
• The oscilloscope power supply automatically adjusts for line input voltages in the range 100 to 240 VAC. Therefore, you do not need to adjust an input line voltage setting. The line cord provided is matched by Keysight Technologies to the country of origin of the order. - Page 19 The Mains wiring and connectors must be compatible with the connector used in the CAUTION premise electrical system. Failure to ensure adequate earth grounding by not using the correct components may cause product damage and serious injury. Keysight Infiniium 9000 Series Oscilloscopes User’s Guide...
-
Page 20: Connecting Oscilloscope Probes
Twisting the probe connector body will damage it. When measuring voltages over 30 V, use a 10:1 probe. CAUTION Keysight Infiniium 9000 Series oscilloscopes are not rated for Measurement Category II, III, or IV. Keysight Infiniium 9000 Series Oscilloscopes User’s Guide... -
Page 21: Tilting The Oscilloscope For Easier Viewing
Setting Up the Oscilloscope Tilting the Oscilloscope for Easier Viewing Tabs under the front feet of the oscilloscope can be flipped out to tilt the oscilloscope. Figure 4 Latching the front feet Keysight Infiniium 9000 Series Oscilloscopes User’s Guide... -
Page 22: Turning On The Oscilloscope
Turning On the oscilloscope After a short initialization period, the oscilloscope display appears. The oscilloscope is ready to use. • You can connect and disconnect probes and cables while the oscilloscope is turned on. Keysight Infiniium 9000 Series Oscilloscopes User’s Guide... -
Page 23: Verifying Basic Oscilloscope Operation
Move the mouse around the mouse surface and verify that the on-screen pointer follows the mouse movement. Touch the pointer of the touch screen stylus to the surface of the screen and move it around while verifying that the pointer follows the movement. Keysight Infiniium 9000 Series Oscilloscopes User’s Guide... -
Page 24: Installing Application Programs On Infiniium
8 GB of RAM or less may be installed on your Infiniium oscilloscope. Exit the oscilloscope application before installing any software. N OTE Installing an application that does not meet these requirements may break the CAUTION oscilloscope application and require a hard drive recovery. Keysight Infiniium 9000 Series Oscilloscopes User’s Guide... -
Page 25: Changing Windows Operating System Settings
• Do not use the Administrative Tools to enable or disable Internet Information Services. Use the Infiniium Remote Setup dialog box to enable or disable the Web Server. • Do not delete or modify the Infiniium Administrator user account. Keysight Infiniium 9000 Series Oscilloscopes User’s Guide... -
Page 26: Turning Off The Oscilloscope
Use alcohol to clean connectors. The power cord must be removed, and the WARNING oscilloscope must be in a well-ventilated area. Allow all residual alcohol moisture to evaporate, and the fumes to dissipate prior to powering up the oscilloscope. Keysight Infiniium 9000 Series Oscilloscopes User’s Guide... -
Page 27: Using The Oscilloscope
Saving and Printing Data Forcing a Default Setup This chapter describes how to use the Infiniium 9000 Series oscilloscope’s inputs and outputs, front panel controls, and user interface. • The familiar front-panel oscilloscope interface with knobs and keys is optimized for common tasks and basic measurements. -
Page 28: Front Panel Controls (Keys And Knobs) Overview
Using the Oscilloscope Front Panel Controls (Keys and Knobs) Overview The Infiniium 9000 Series oscilloscope front panel gives you direct access to the functions needed to perform the most common measurements, using a traditional oscilloscope interface. Knobs and keys let you directly set vertical and horizontal parameters. -
Page 29: User Interface Overview
Figure 8 Infiniium oscilloscope top of display The selected grid mode in the upper right corner determines whether you draw a selection box or manipulate waveforms when you touch the screen. Keysight Infiniium 9000 Series Oscilloscopes User’s Guide... - Page 30 The symbol represents the ground reference point for each waveform; it moves when you change the vertical offset. You can also drag this symbol up and down to change the vertical offset for that waveform. Keysight Infiniium 9000 Series Oscilloscopes User’s Guide...
-
Page 31: Menu Overview
Take a few minutes to look through the menus to get an overview of the many features and capabilities of your Infiniium oscilloscope. The sub-menu selections will vary slightly, depending on which licenses are installed. Figure 12 Menu bar Keysight Infiniium 9000 Series Oscilloscopes User’s Guide... -
Page 32: Using The Setup And Display Controls
See the online help (described in chapter 3) for instructions on saving and recalling setups, and for information on the exact configuration that is set when you use the default setup. Keysight Infiniium 9000 Series Oscilloscopes User’s Guide... -
Page 33: Starting And Stopping Waveform Acquisitions
• You can also choose the Run, Run Single, and Stop commands from the Control menu. • To set up how you want the signals to be sampled, such as sampling rate and mode, choose Setup > Acquisition..Keysight Infiniium 9000 Series Oscilloscopes User’s Guide... -
Page 34: Adjusting The Horizontal Time Scale And Trigger Position
Mouse over or touch the horizontal scale field and use the resulting controls to set a particular horizontal scale. You can click the Scale field to enter an exact value, or click the “narrower” or “wider” buttons. Keysight Infiniium 9000 Series Oscilloscopes User’s Guide... - Page 35 The Timebase Reference control is a slider from 0 to 100% of the screen. The center of the screen is at 50%. The slider correlates to the solid orange triangle at the bottom of the display area, showing you where the horizontal offset is on the screen. Keysight Infiniium 9000 Series Oscilloscopes User’s Guide...
-
Page 36: Adjusting The Vertical Settings
• To turn an analog channel on or off, press the channel number key on the front panel or click the Add Waveforms button . When you turn off a channel, the current vertical scale and offset fields for that channel disappear. Keysight Infiniium 9000 Series Oscilloscopes User’s Guide... - Page 37 You can also specify the characteristics of a probe, or perform a probe calibration. For Keysight Technologies probes that are compatible with AutoProbe II interfaces, the oscilloscope will automatically set these characteristics (except for skew) after identifying the probe when it is connected to the channel input.
-
Page 38: Setting Up Triggers
Turn the Level knob to adjust the voltage level at which the oscilloscope will trigger. Use the Trigger dialog box to select any of the different modes of triggering, the parameters and conditions for each trigger mode, and advanced configuration items. Keysight Infiniium 9000 Series Oscilloscopes User’s Guide... - Page 39 You can also drag the trigger reference indicator at the left side of the display, or drag the trigger line itself, which appears when you click or touch the grid. Keysight Infiniium 9000 Series Oscilloscopes User’s Guide...
-
Page 40: Using Markers And Making A Measurement
Figure 20 Front panel measure controls Drag & drop measurement icons showing most commonly used measurements Expand and collapse the measurement icons Figure 21 Drag & Drop measurements Keysight Infiniium 9000 Series Oscilloscopes User’s Guide... - Page 41 The action taken when the [Multi Purpose] key is pressed (or Utilities > Multipurpose is chosen) depends on the feature selected in the Customize Multipurpose dialog box (Utilities > Customize Multipurpose...). The default feature is QuickMeas. Keysight Infiniium 9000 Series Oscilloscopes User’s Guide...
- Page 42 Markers dialog box. You can also click the Markers button to either turn on markers or bring up the Markers dialog box. Drag one of the markers to the position you want on the waveform. Keysight Infiniium 9000 Series Oscilloscopes User’s Guide...
- Page 43 • After selecting the protocol decode parameters, click Auto Setup to automatically configure the oscilloscope for the selected decode type. • You can view decoded acquisition data in the Digital Listing Window that appears. Keysight Infiniium 9000 Series Oscilloscopes User’s Guide...
-
Page 44: Saving And Printing Data
• Choose File > Copy Screen Image to easily copy and paste a screen image into a document. • Choose File > Print... to print waveform and setup data to a specified file. • You can customize the [Multi Purpose] key to perform a QuickPrint. Keysight Infiniium 9000 Series Oscilloscopes User’s Guide... -
Page 45: Forcing A Default Setup
If the options are not installed, install them using the license keys provided on the oscilloscope option license certificates you received, or refer to the back of the oscilloscope. Keysight Infiniium 9000 Series Oscilloscopes User’s Guide... - Page 46 Using the Oscilloscope Keysight Infiniium 9000 Series Oscilloscopes User’s Guide...
-
Page 47: Accessing The Online
Keysight Infiniium 9000 Series Oscilloscopes User’s Guide 3 Online Help and Other Information Accessing the Online Help Navigating the Online Help Using the Demo Wizard Most of the information about using the Infiniium oscilloscope effectively is included in the online help. - Page 48 Online Help and Other Information Figure 22 Online Help home page • Click the Help button in a dialog box. Displays the Help topic for this dialog box Figure 23 Help button for dialog box Help Keysight Infiniium 9000 Series Oscilloscopes User’s Guide...
-
Page 49: Navigating The Online
• Use the Favorites tab to add preferred help topics to a list for easy reference. For details on using online help, click “How to Use This Help” under the “Help and More Information” topic in the Contents. Keysight Infiniium 9000 Series Oscilloscopes User’s Guide... - Page 50 Wizard..You can then select a specific demo, such as a particular protocol or a UI demo showing bookmarks. For example, the following screen display shows the initial demo page for the FFT function. To experiment with the demo, click Load Demo..Figure 24 FFT Demo Keysight Infiniium 9000 Series Oscilloscopes User’s Guide...
- Page 52 This information is subject to change without notice. © Keysight Technologies 2009, 2012, 2016, 2017 Fifth edition, January 2017 *54904-97020* 54904-97020 www.keysight.com Distributed by: dataTec ▪ Ferdinand-Lassalle-Str. 52 ▪ 72770 Reutlingen ▪ Tel. 07121 / 51 50 50 ▪ Fax 07121 / 51 50 10 ▪ info@datatec.de ▪ www.datatec.de...
