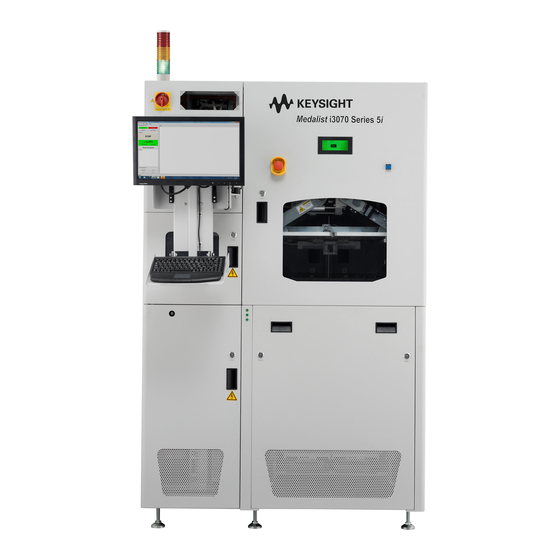

- Page 1 Replacing the Power Supply Keysight i3070 Series 5i Inline In-Circuit Test System...
-
Page 2: Warranty
Keysight Technologies as governed by U.S. Government Rights could result in personal injury or death. United States and international The Software is "commercial computer... -
Page 3: Replacing The Power Supply
Keysight i3070 Inline In-Circuit Test System Replacing the Power Supply Parts i3070 Inline System (E9988E) i3070 Lean Inline System (E9988EL) i3070 4-mod Inline System (E9986E) Tools required • Allen key • Screwdriver... - Page 4 Parts Parts Table 1 Power Supply Part Number Description 0950-6343 Omron Power Supply AC/DC 480W 1-Output 24V 20A Replaces PS1 and PS2 (0950-5621). Note: Even if only one of the power supplies (PS1 or PS2) is faulty, both need to be replaced. 0950-6344 Cosel Power Supply AC-DC 153.6W 1-Output 24V 6.4A Replaces PS3 (0950-5621).
- Page 5 i3070 Inline System (E9988E) i3070 Inline System (E9988E) Turn off the main switch before beginning any replacement work. 1 Remove the button screws securing the system’s top cover and remove the top cover. 2 Open the F-3 fuse holder and replace the 2.5 A slow blow fuse with a new 6.0 A slow blow fuse.
- Page 6 i3070 Inline System (E9988E) 4 Remove the trunking covers to access the cables. Installing the Omron 20 A AC/DC power supply If installing the Omron 20 A AC/DC power supply, follow step 5 through step 5 Locate and remove the cables labeled PF+, F-, E, L5 and N2 that were connected to PS2, as they are no longer needed.
- Page 7 i3070 Inline System (E9988E) 7 Mount the bracket for the new Omron 20 A AC/DC power supply. Mounting bracket for Omron power supply 8 Fit the new Omron 20 A AC/DC power supply into the DIN rail and lock it. 9 Cables labeled L1, N2, E, P+, and P- (previously connected to PS1) are to be connected to the Omron power supply.
- Page 8 i3070 Inline System (E9988E) 11 Connect a new cable labeled + from F-5 to TB-1. TB-1 12 Connect a new cable labeled L4 from F-4 to TB-2. TB-2 13 At TB-1, connect a new cable labeled – as shown below: TB-1 Continue with Completing the...
- Page 9 i3070 Inline System (E9988E) Installing the Cosel 6.4 A AC/DC power supply If installing the Cosel 6.4 A AC/DC power supply, follow step 14 through step 14 Install the bracket and mount the new Cosel 6.4 A AC/DC power supply. Cosel 6.4 A AC/DC power supply with bracket 15 Connect the cables labeled ST+, ST-, E, N1, L7 (formerly from PS3) to the...
- Page 10 i3070 Lean Inline System (E9988EL) i3070 Lean Inline System (E9988EL) Turn off the main switch before beginning any replacement work. 1 Remove the button screws securing the system’s top cover and remove the top cover. 2 Remove the cap screws to remove the cover to the electrical panel. electrical panel 3 Remove the trunking covers to access the cables.
- Page 11 i3070 Lean Inline System (E9988EL) 4 Open the F-3 fuse holder and replace the 2.5 A slow blow fuse with a new 6.0 A slow blow fuse. 5 Remove old power supply: If installing the Omron 20 A AC/DC power supply, remove PS1 and PS2. If installing the Cosel 6.4 A AC/DC power supply, remove PS3.
- Page 12 i3070 Lean Inline System (E9988EL) Installing the Omron 20 A AC/DC power supply If installing the Omron 20 A AC/DC power supply, follow step 6 through step 6 Locate and remove the cables labeled PF+, F-, E, L5 and N2 that were connected to PS2, as they are no longer needed.
- Page 13 i3070 Lean Inline System (E9988EL) 8 Mount the bracket for the new Omron 20 A AC/DC power supply. Mounting bracket for Omron power supply 9 Fit the new Omron 20 A AC/DC power supply into the DIN rail and lock it. Omron 20 A AC/DC power supply 10 Cables labeled L1, N2, E, +, and –...
- Page 14 i3070 Lean Inline System (E9988EL) 12 Connect a new cable labeled – from K-2 (terminal contact 12) to TB-4. TB-4 13 Disconnect the blue cable labeled F1+ from TB-3 and connect it to K-B (terminal contact 8). TB-3 14 Connect a new cable labeled F2+ from K-B (terminal contact 12) to TB-3. TB-3 Replacing the Power Supply...
- Page 15 i3070 Lean Inline System (E9988EL) 15 Connect a new cable labeled L4 from F-4 to TB-2. TB-2 Continue with Completing the installation. Installing the Cosel 6.4 A AC/DC power supply If installing the Cosel 6.4 A AC/DC power supply, follow step 16 through step...
- Page 16 i3070 Lean Inline System (E9988EL) Completing the installation 18 Make sure all the cables are routed properly in the trunking, then close all the trunking covers. 19 Ensure all connections are correct before securing the electrical panel cover. 20 Close and secure the system’s top cover. Replacing the Power Supply...
- Page 17 i3070 4-mod Inline System (E9986E) i3070 4-mod Inline System (E9986E) Turn off the main switch before beginning any replacement work. 1 Remove the button screws securing the system’s top cover at the electrical panel side, then remove the top cover. 2 Remove the trunking covers to access the cables.
- Page 18 i3070 4-mod Inline System (E9986E) 4 Remove old power supply: If installing the Omron 20 A AC/DC power supply, remove PS1 and PS2. If installing the Cosel 6.4 A AC/DC power supply, remove PS3. a Open the protective cover and loosen the screws to release all cables at the AC/DC power supply terminal point of the power supply to be replaced.
- Page 19 i3070 4-mod Inline System (E9986E) 8 Cables labeled L1, N2, E, P+, and P- (previously connected to PS1) are to be connected to the Omron power supply. The terminal point connections remain the same. • If using the existing cables, the connector heads have to be replaced with ferrule heads to connect to the Omron power supply.
- Page 20 i3070 4-mod Inline System (E9986E) 11 Locate the cable labeled F1+ (TB-2 to F-5). Disconnect the cable from TB-2 and connect it to K-B. TB-2 12 Connect a new cable labeled F2+ to K-B. Connect the other end to TB-2, in the space previously occupied by F1+.
- Page 21 i3070 4-mod Inline System (E9986E) 14 Connect a new cable labeled – from the Omron power supply to TB-2. TB-2 Proceed to Completing the installation. Installing the Cosel 6.4 A AC/DC power supply If installing the Cosel 6.4 A AC/DC power supply, follow step 15 through step...
- Page 22 i3070 4-mod Inline System (E9986E) Completing the installation 17 Make sure all the cables are routed properly in the trunking, then close all the trunking covers. 18 Ensure all connections are correct before securing the system’s top cover. Replacing the Power Supply...
- Page 24 This information is subject to change without notice. © 2020 Keysight Technologies Edition 2, May 2020 www.keysight.com...
