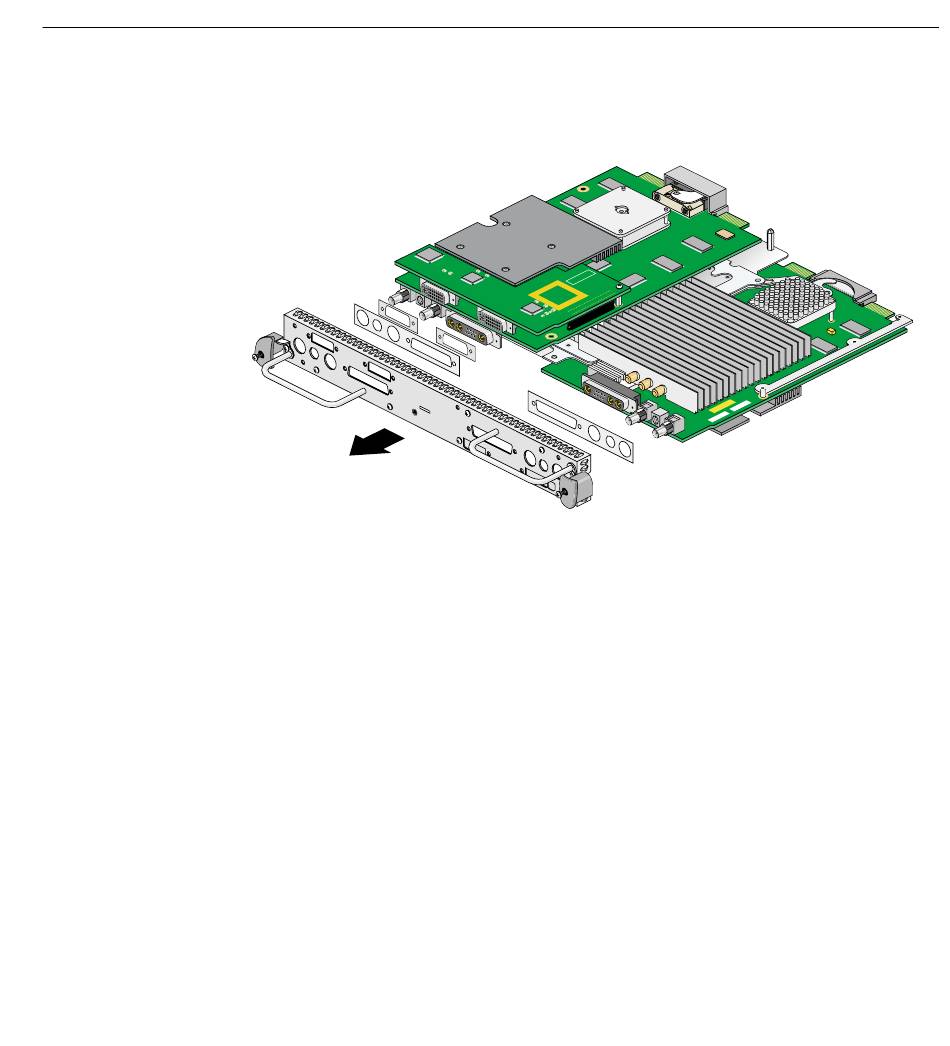

Figure 2-38 Removing The Dual Head Xio Module I/O Panel - Silicon Graphics Octane2 Manual

007-4209-003
10. While lifting the plastic heat-sink stabilizing brackets, gently remove the I/O panel
from the Dual Head XIO Module, as shown in Figure 2-38.
Removing the Dual Head XIO Module I/O Panel
Figure 2-38
11. As you remove the I/O panel, make sure not to lose the rubber gaskets located
between the I/O panel and the VPro graphics boards. Save the two large gaskets for
later in the installation. Store the two small gaskets in the antistatic bag in which
you will be placing the DCD.
