Selecting the Buffer Settings

007-4209-003
1. Select the desired frame buffer depth in the Graphics Back End Control window
(see Figure 3-1), and then click the Load button.
A dialog box appears that asks if you want to use this frame buffer depth as the
power-on default, as shown in the example in Figure 4-4.

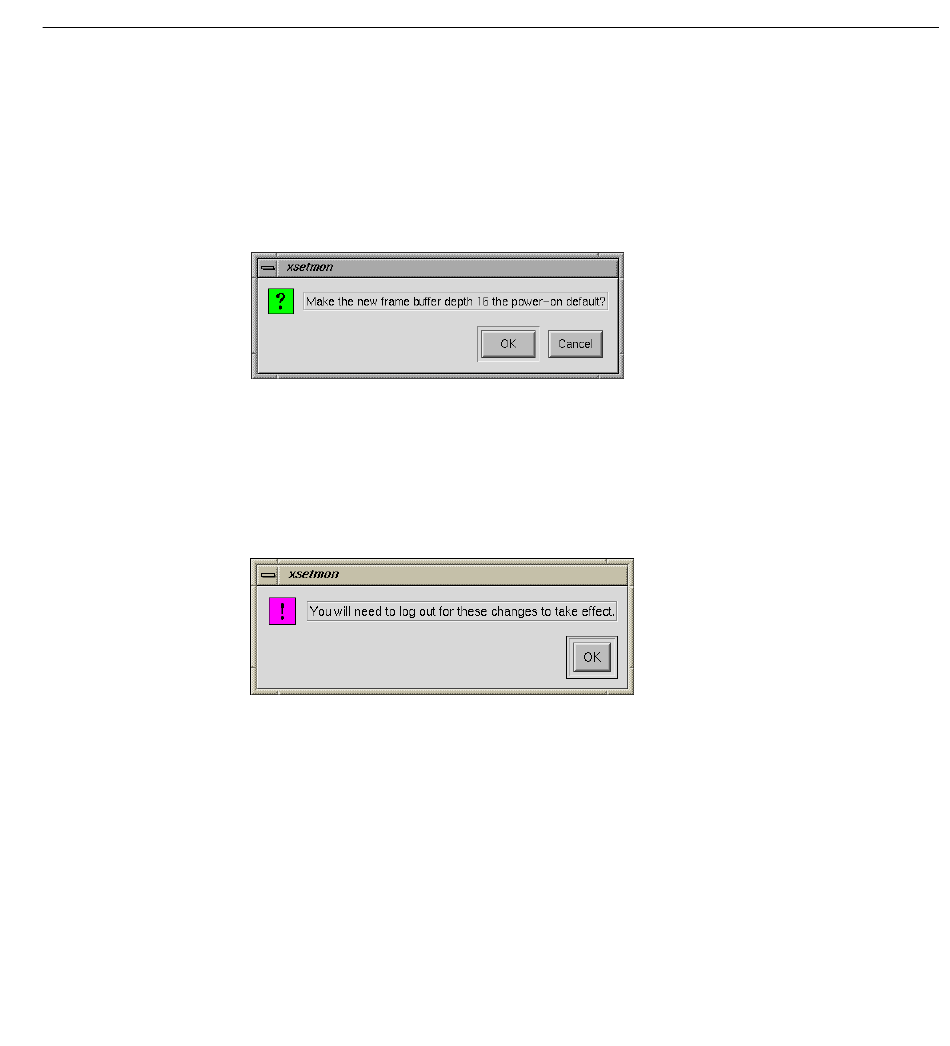

Frame Buffer Confirmation Dialog Box
Figure 4-4
2. Click the OK button to use this frame buffer depth as the power-on default, or click
the Cancel button to retain the current default.
If you click the OK button, another dialog box appears that says you must log out
for the new settings to take effect, as shown in Figure 4-5.
Figure 4-5 Log Out Dialog Box
3. Click the OK button in the dialog box.
4. Select the desired Accumulation Buffer Type in the Graphics Back End Control
Window (see Figure 4-1), and then click the Load button.
A dialog box appears that asks if you want to use this accumulation buffer type as
the power-on default, as shown in the example in Figure 4-6.
