1: Installing the DCD in a Single Head Octane2

Removing the XIO Tri-Module

8
You must remove your workstation's XIO Tri-Module so you can connect the DCD to the
daughterboard slot on the VPro graphics board. Before removing the XIO Tri-Module,
you must power off your workstation, wait 5 minutes to allow the heat sinks to cool, and
attach the wrist strap, as described in the previous sections.
To remove the XIO Tri-Module, follow these steps:
1. Loosen the two captive screws in the XIO Tri-Module handles with the supplied
Phillips screwdriver until the screws are disconnected from the chassis (see
Figure 1-5).

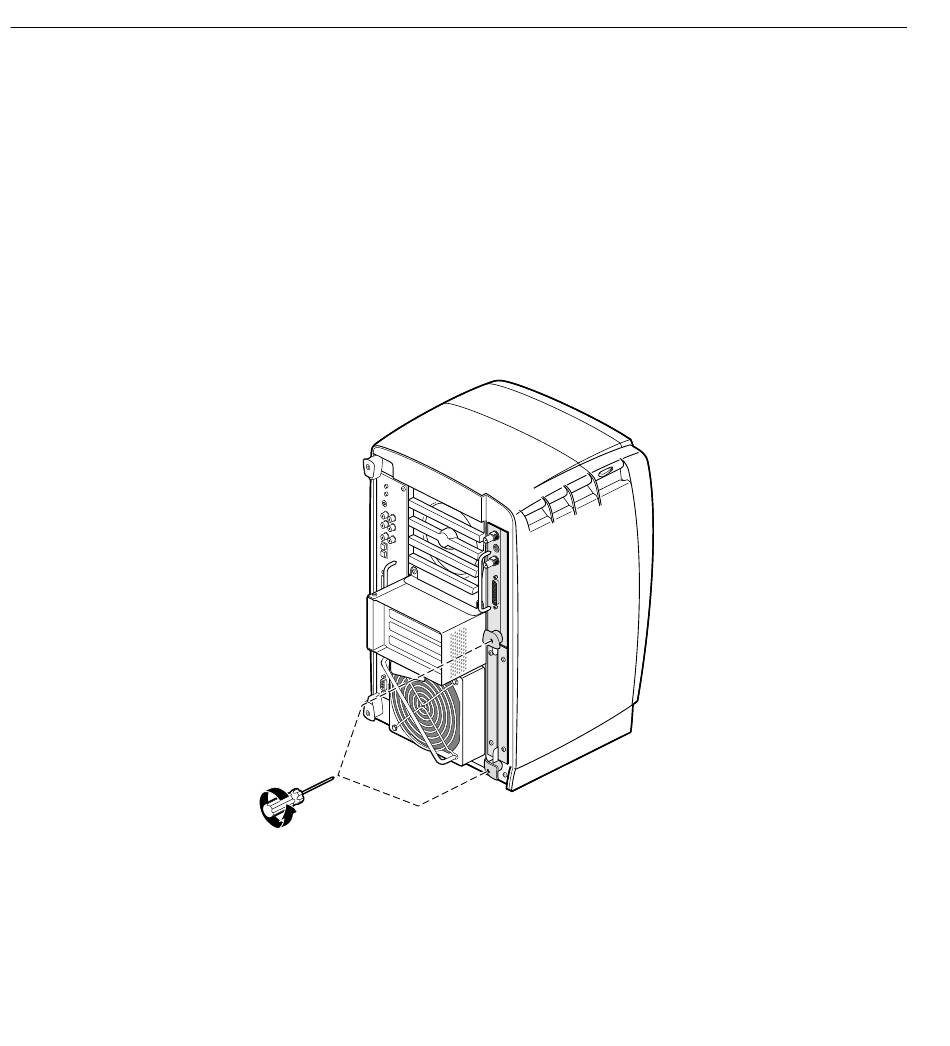

Figure 1-5 Loosening the XIO Tri-Module Screws
007-4209-003
