25. Turn the Dual Head XIO Module back over and tighten the center plastic knob
clamping screw, as shown in Figure 2-48.
26. Pull the center plastic knob to make sure it is fully extended. You may have had to
push it in slightly in order to reach the retaining screw, but you should pull it back
out now.
Clamping screw
location

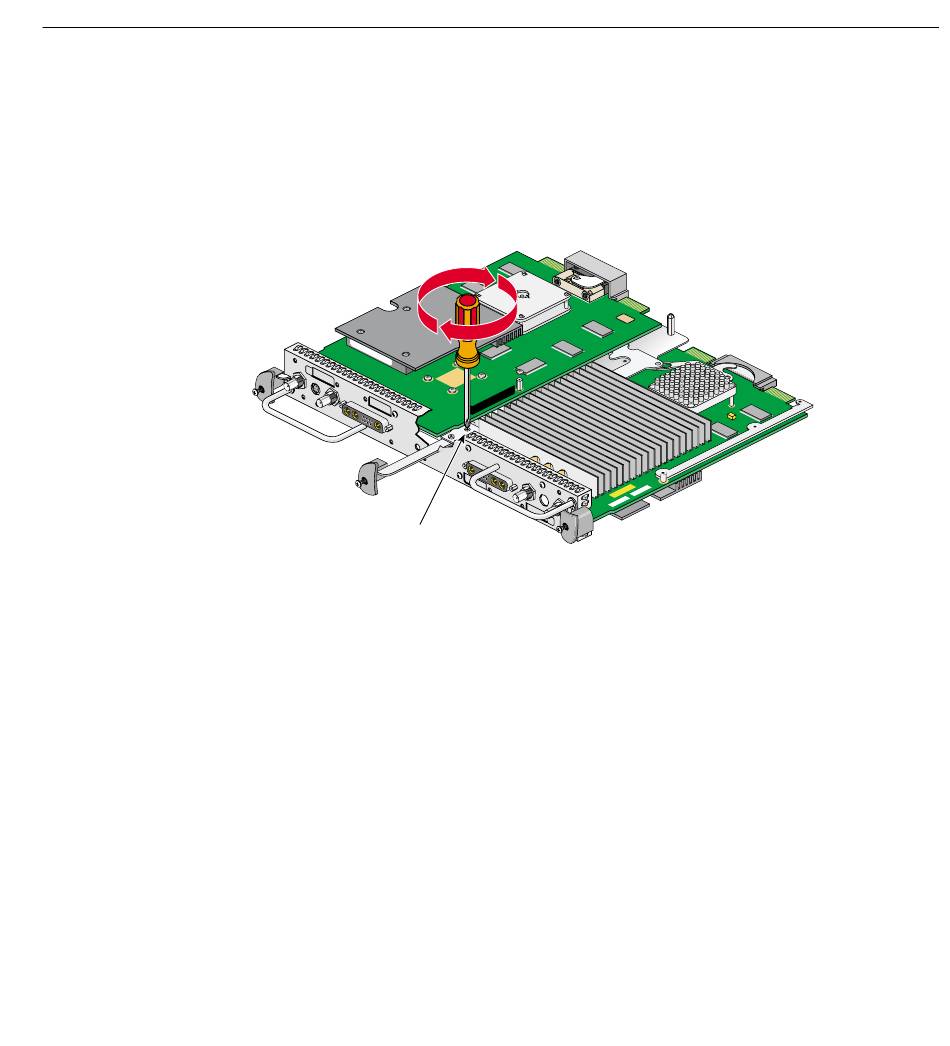

Figure 2-48 Tightening the Center Plastic Knob Clamping Screw
