2: Installing the DCD in a Dual Head Octane2
74
7. Remove the four nuts and lock washers from the BNC connectors, as shown in
Figure 2-35. Save the nuts and lock washers for later in the installation.
Note: These nuts are most easily removed using a socket wrench with a deep 9/16-inch
socket.

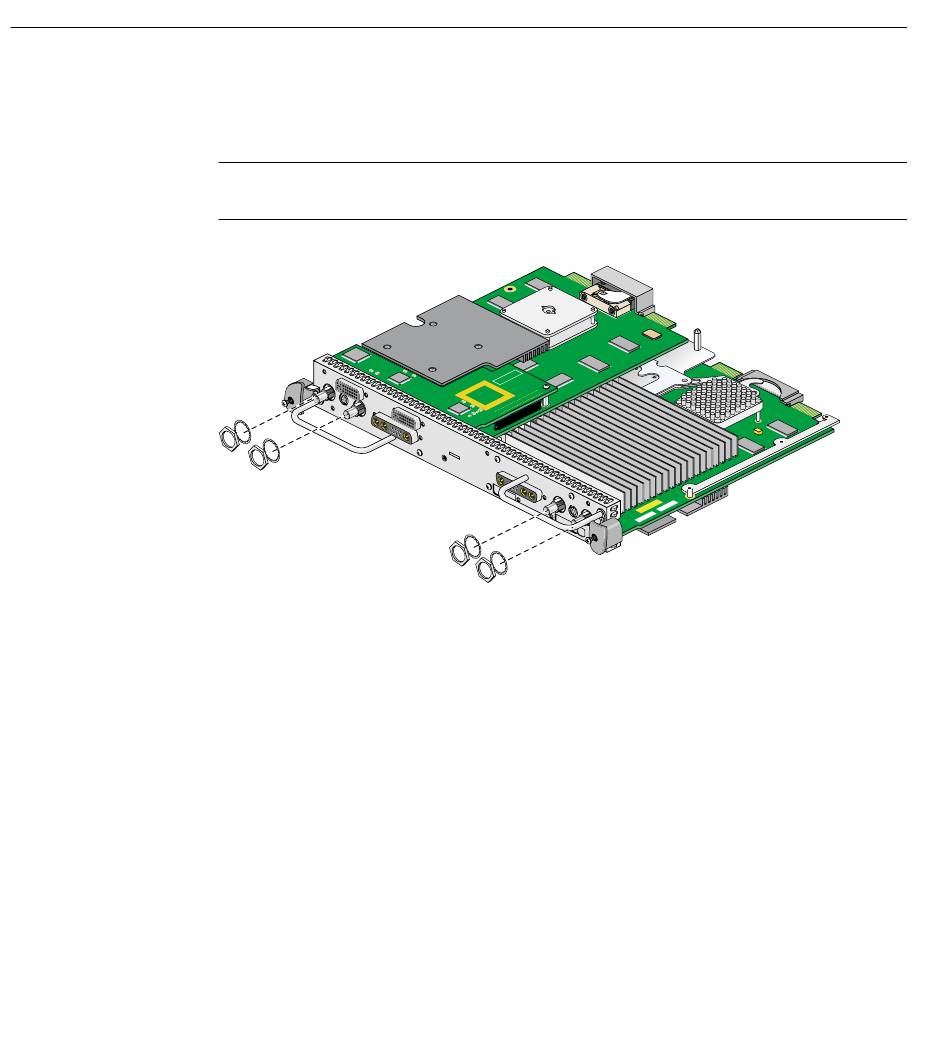

Figure 2-35 Removing the Nuts and Lock Washers from the Graphics Board I/O Panel
007-4209-003
