2: Installing the DCD in a Dual Head Octane2
58
24. Install the four jackscrews on the 13W3 connectors, as shown in Figure 2-23, but do
not tighten them yet.
25. Install the four new jackscrews on the DCD DVI connectors, as shown in
Figure 2-23, but do not tighten them yet.

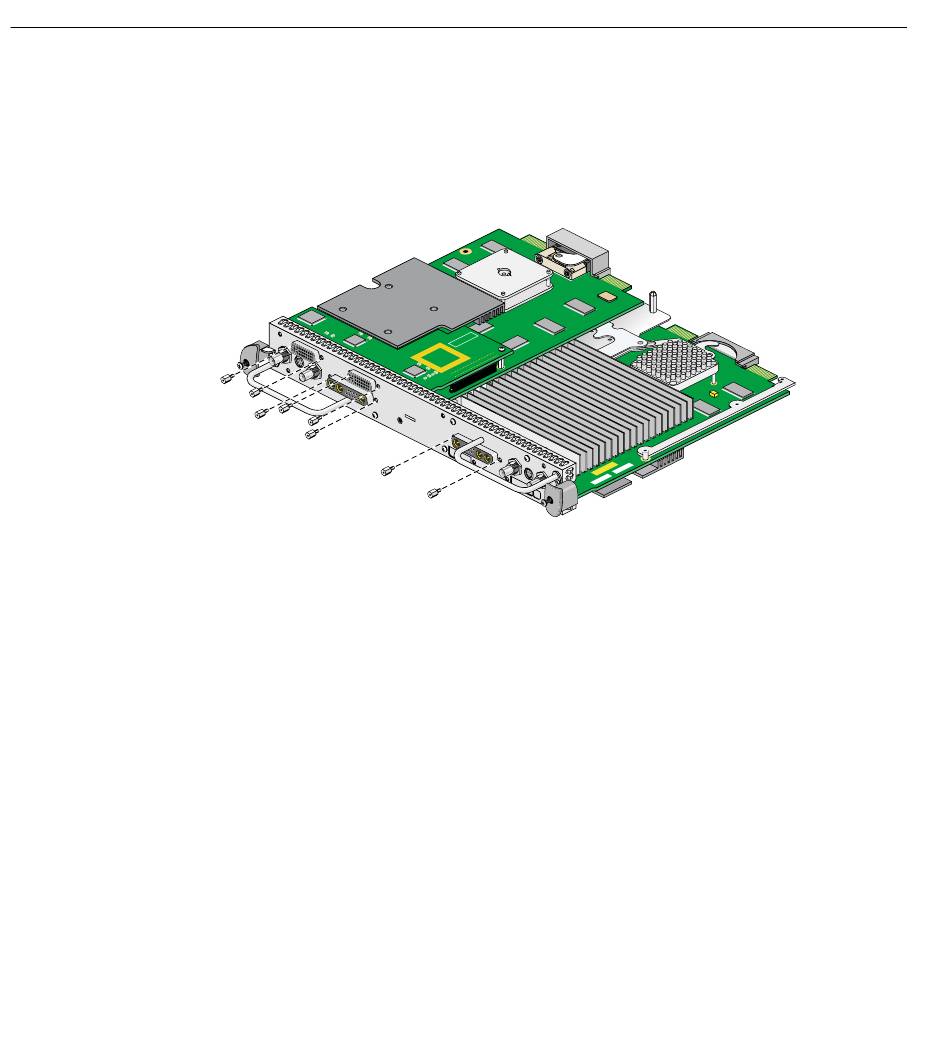

Figure 2-23
Installing the Jackscrews on the Graphics Board I/O Panel
007-4209-003
