Figure 1-18 Securing The Dcd To The Vpro Graphics Board - Silicon Graphics Octane2 Manual

007-4209-003
9. Secure the DCD to the VPro graphics board with the three screws you removed
from the blank panel, as shown in Figure 1-18.
Install the two outside screws first, then install the middle screw.
Note: Turn the screws until they are snug, but do not overtighten them.

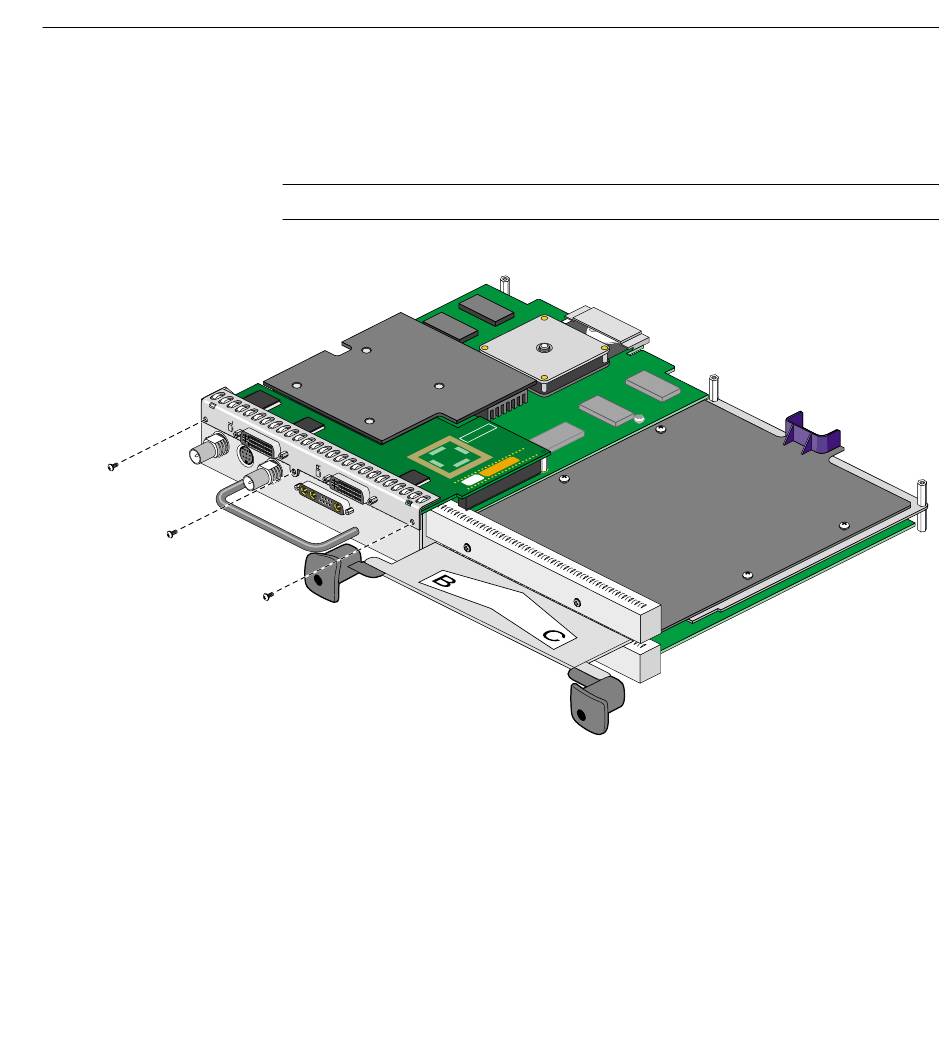

Securing the DCD to the VPro Graphics Board
Figure 1-18
Connecting the DCD
21
