2: Installing the DCD in a Dual Head Octane2

Removing the Dual Head XIO Module

40
You must remove your workstation's Dual Head XIO Module so you can connect the
DCD to the daughterboard slot on the VPro graphics board. Before removing the Dual
Head XIO Module, you must power off your workstation, wait 5 minutes to allow the
heat sinks to cool, and attach the wrist strap, as described in the previous sections.
To remove the Dual Head XIO Module, follow these steps:
1. Loosen the two captive screws in the Dual Head XIO Module handles with the
supplied Phillips screwdriver until the screws are disconnected from the chassis
(see Figure 2-5).

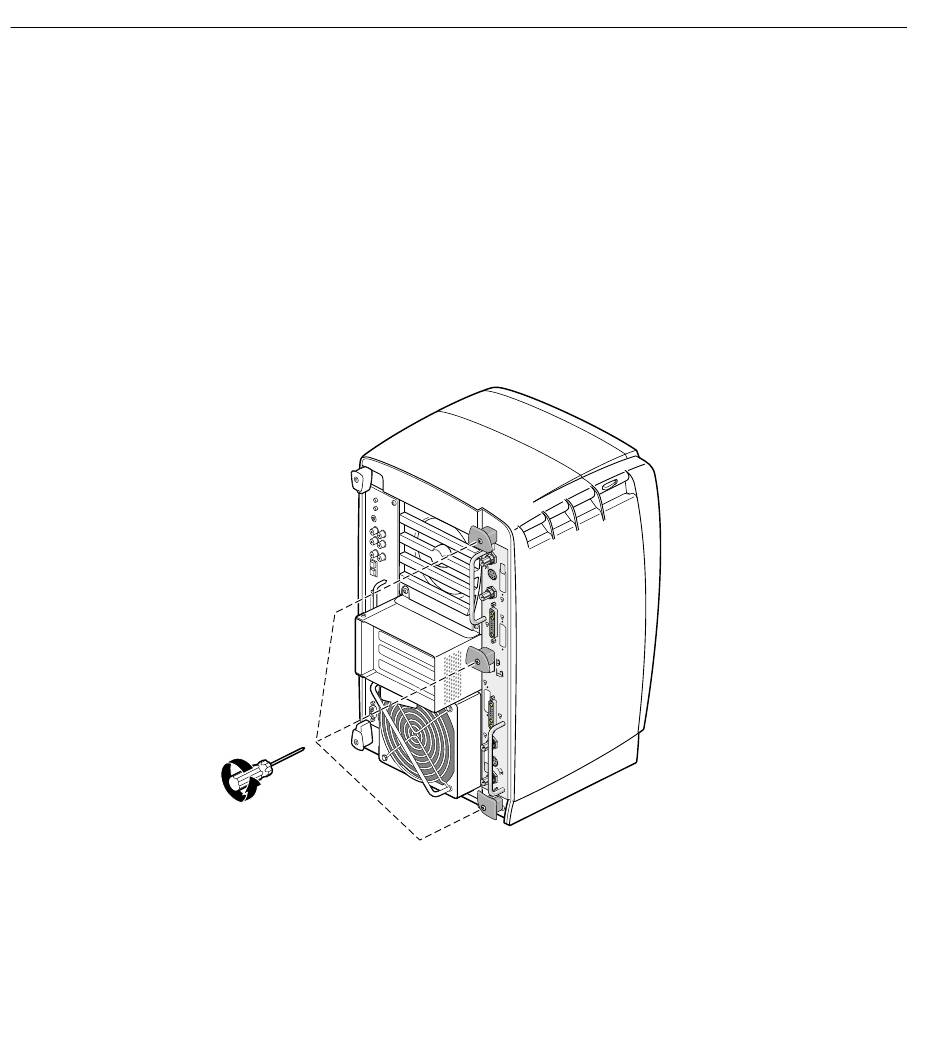

Figure 2-5 Loosening the Dual Head XIO Module Screws
G e n
lo c k
S w a
p
R e a L
d y
R
L A T
C H
U N L
A T C
R H
L
S w a
p
R e a
d y
G e n
lo c k
007-4209-003
