007-4209-003
26. Turn the Dual Head Module over and insert the center plastic knob into the I/O
panel, as shown in Figure 2-24. Make sure that the knob is installed in the correct
orientation. One way of ensuring this is to make sure the spring-loaded screw in the
center plastic knob is aligned over the threaded hole in the I/O panel.
27. Install and tighten the center plastic knob retaining screw, as shown in Figure 2-24.
Retaining screw
location

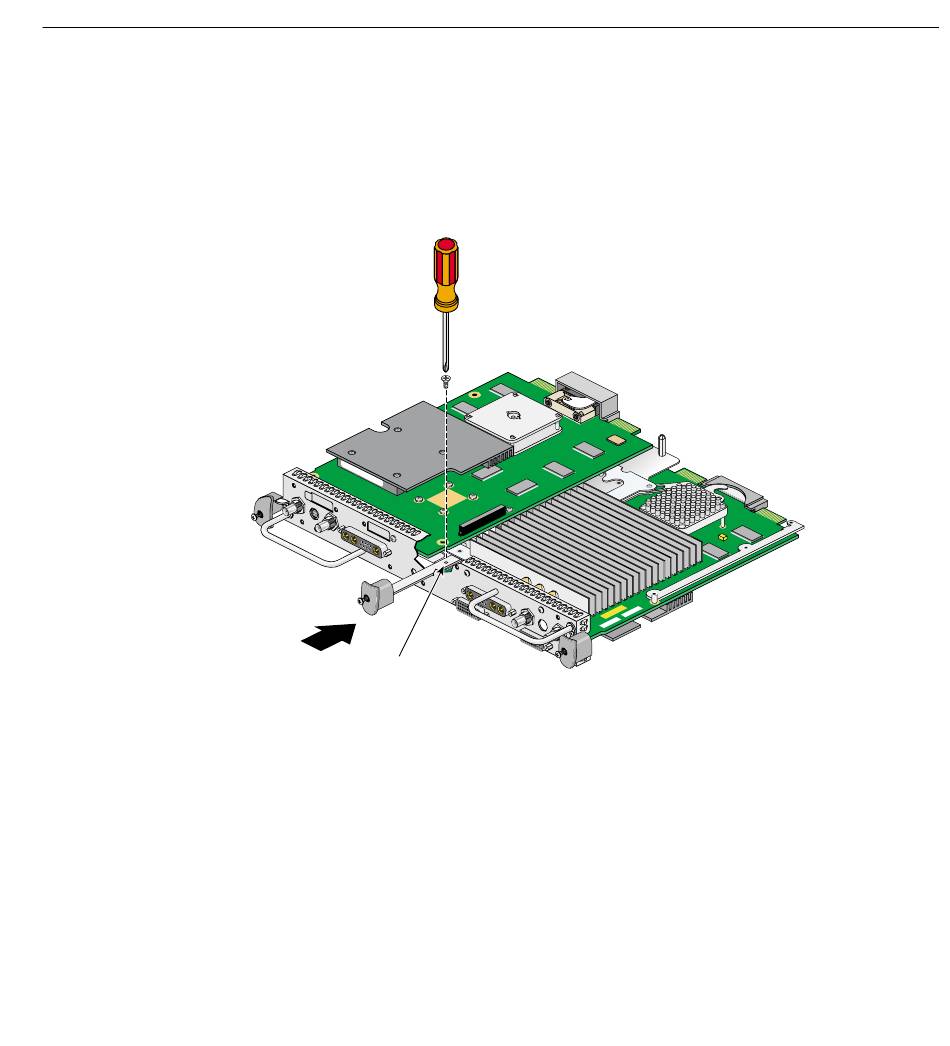

Figure 2-24 Installing the Center Plastic Knob Retaining Screw
Connecting the DCD
59
