007-4209-003
Warning:
The heat sinks on the XIO boards get very hot. Wait 5 minutes after
powering off your workstation before you remove the Dual Head XIO Module. Test
the temperature of the heat sinks before handling any of the XIO boards.

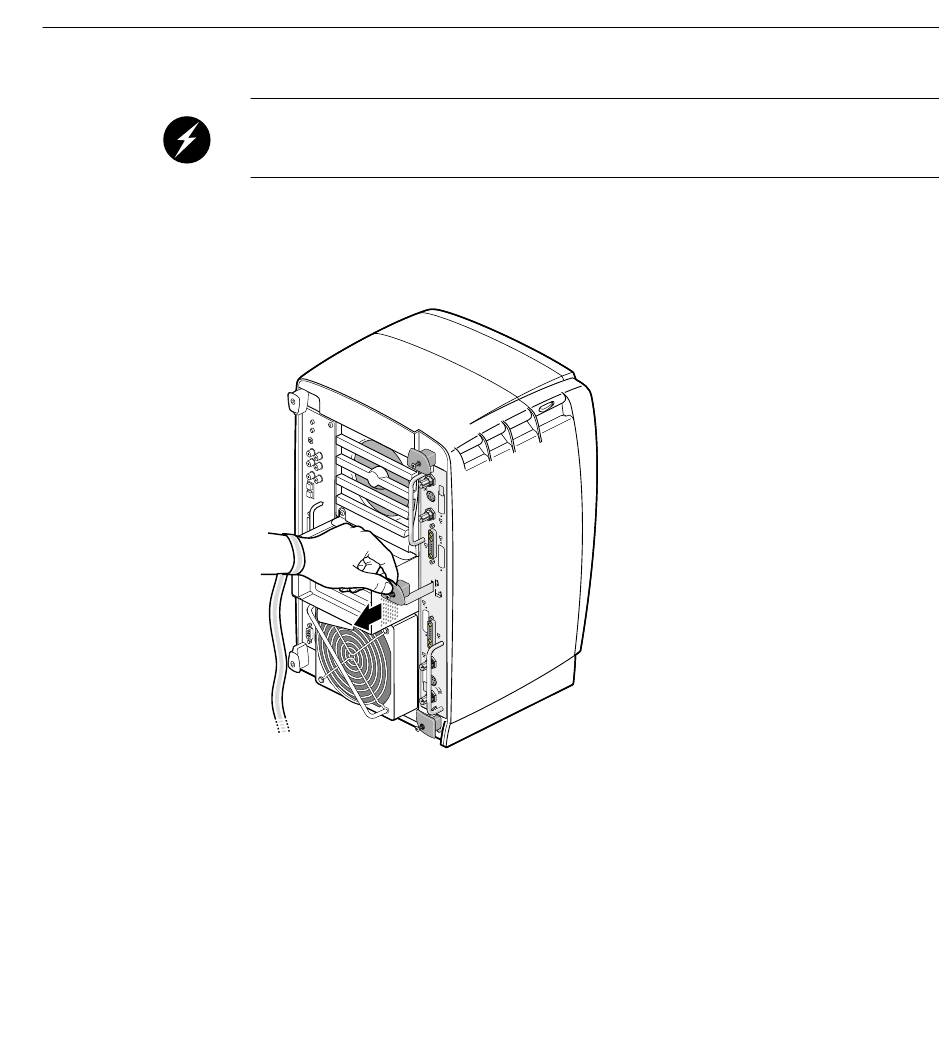

2. Grasp the center plastic knob and pull until the knob protrudes about an inch (2.5
cm) from the chassis, as shown in Figure 2-6.
The knob moves out about an inch (2.5 cm) before the I/O panel moves.
S w a
p
R e a
d y
R
L
G e n
lo ck
Figure 2-6 Releasing the Dual Head XIO Module
G e n
lo ck
L
R
L A T
C H
U N L
A T C
H
S w a
p
R e a
d y
Removing the Dual Head XIO Module
41
