FC 300 Instruction Manual
How to Install

Electrical installation, control cables

"

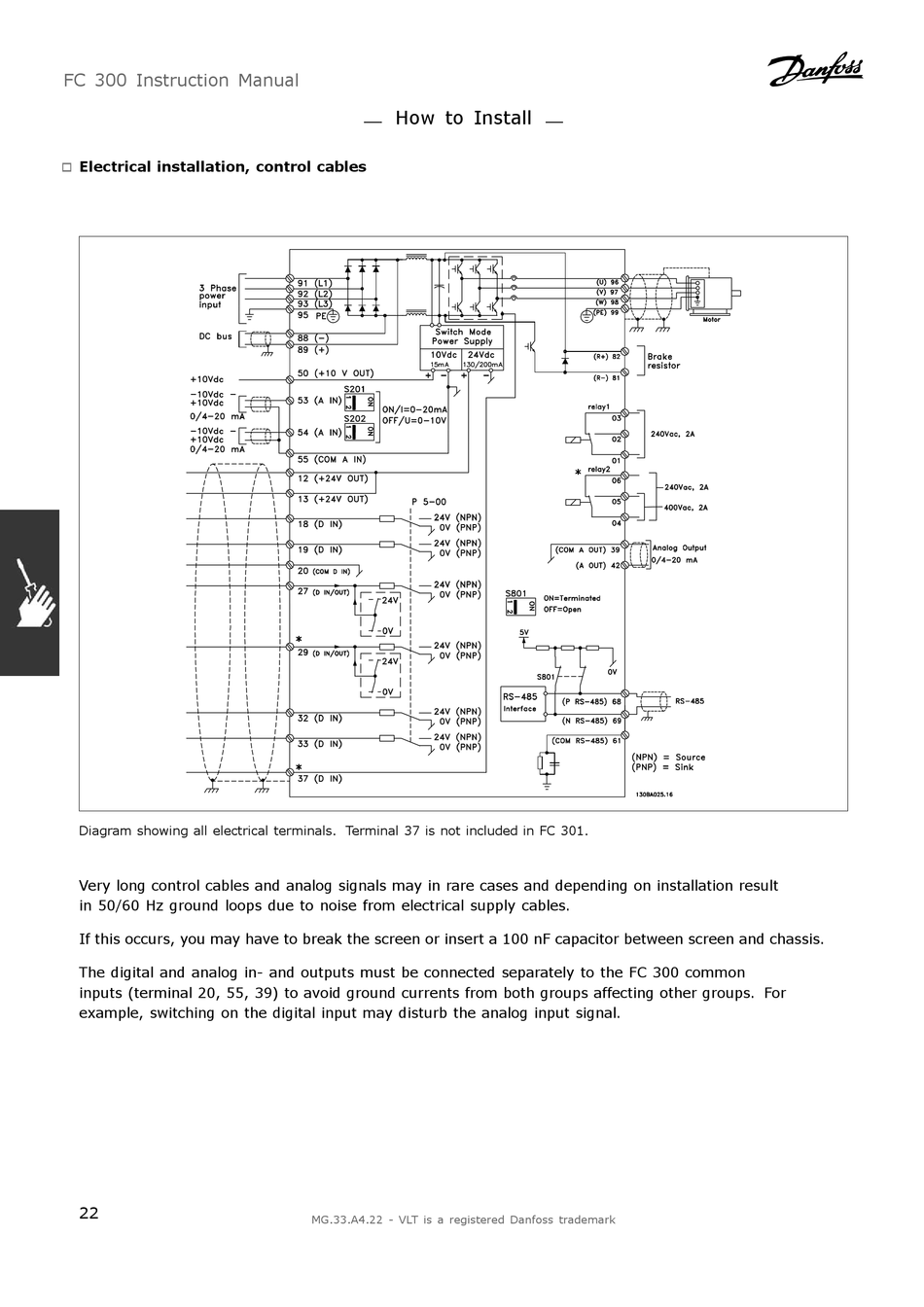

Diagram showing all electrical terminals. Terminal 37 is not included in FC 301.
Very long control cables and analog signals may in rare cases and depending on installation result
in 50/60 Hz ground loops due to noise from electrical supply cables.
If this occurs, you may have to break the screen or insert a 100 nF capacitor between screen and chassis.
The digital and analog in- and outputs must be connected separately to the FC 300 common
inputs (terminal 20, 55, 39) to avoid ground currents from both groups affecting other groups. For
example, switching on the digital input may disturb the analog input signal.
