Controller Options

Overview

• Always touch a grounded surface to discharge static electricity from your hands before you handle
SD cards, printed circuit boards, or memory boards.

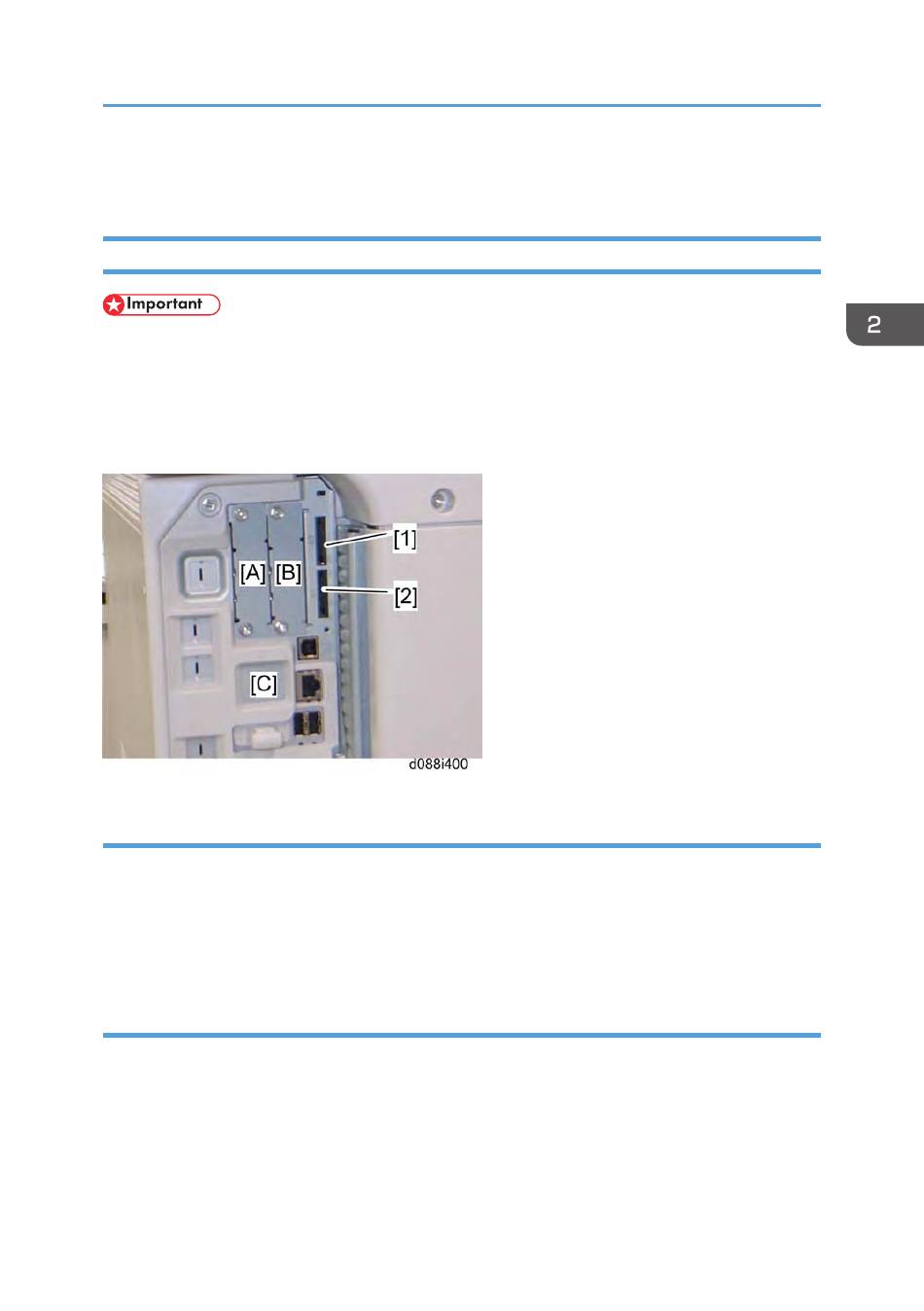

This machine has I/F card slots for optional I/F connections and SD card slots applications.
After you install an option, check that the machine can recognize it (see "Check All Connections" at the
end of this section).

I/F Card Slots

• Slot A is used for one of the optional I/F connections (only one can be installed): IEEE1284,
IEEE802.11a/g g (Wireless LAN) or Remote Communication Gate.
• Slot B is used for the File Format Converter or Remote Communication Gate.
• Slot C is used for Gigabit Ethernet.

SD Card Slots

• Slot 1 (upper) is already occupied by the PDF direct print, VM and App2me SD Card by factory
default, and is also used for optional applications (e.g.: Browser Unit, PostScript 3, PictBridge, IPDS
unit, etc).
• Slot 2 (lower) is used for installing applications, or for service only (for example, updating the
firmware).
Controller Options
137
