Field Service Ver. 2.0 Jul. 2009
[1]
[1]
[1]
[3]
[1]
16. To reinstall, reverse the order of removal.
Y110571-1
[2] [1]
[1]
A00JF2C607DA
A00JF2C342DA
[2]
A0P0F2C192DA
Service Manual
5. OTHER MAINTENANCE ITEMS

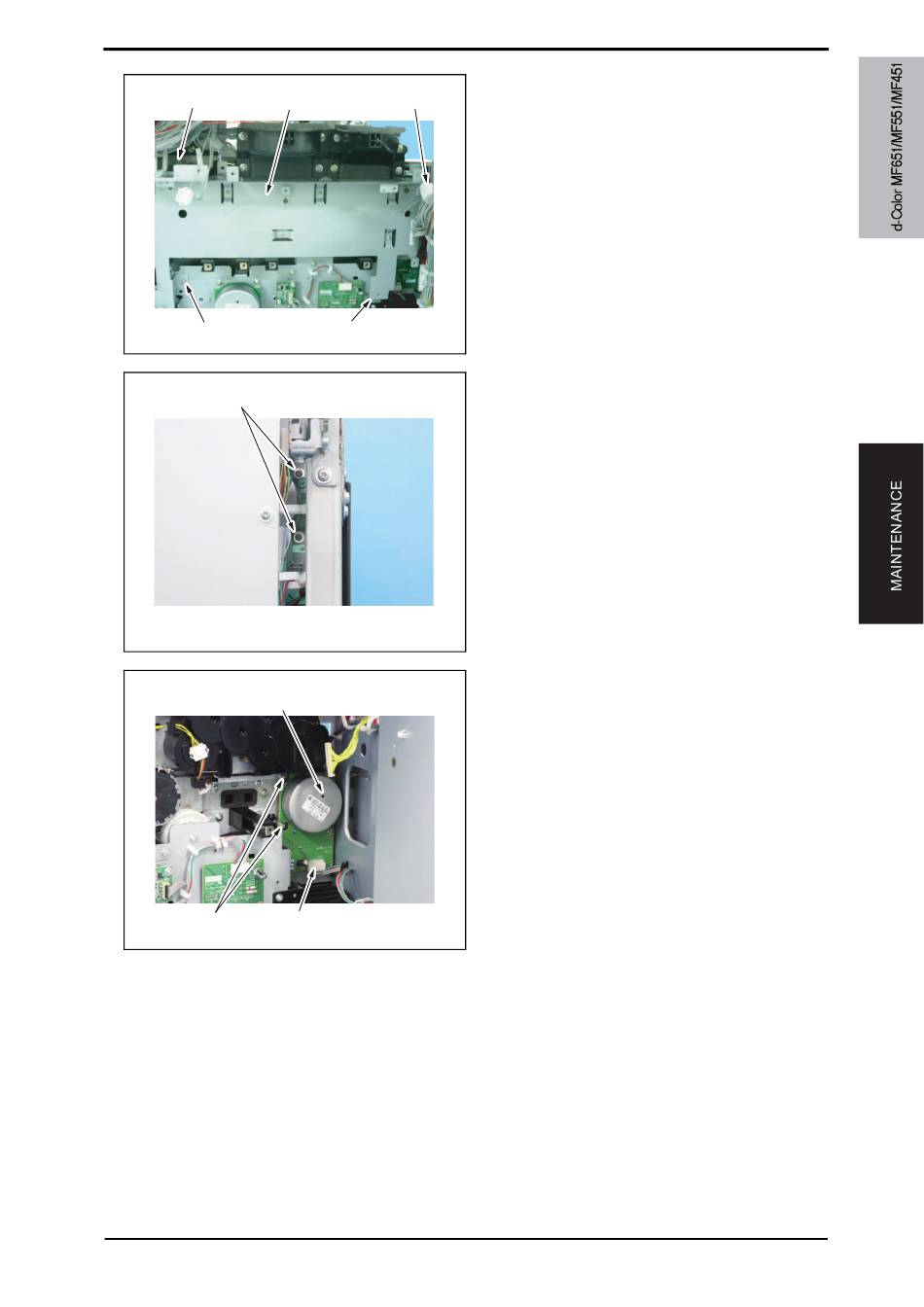

13. Remove four screws [1], and remove
the metal plate [2].
14. Close the PWB box/2 once and
remove two screws [1] of the cleaner
motor.
15. Open the PWB box/2 again, remove
two screws [1] and the connector [2],
and take out the cleaner motor [3].
187
