Oracle EXADATA X6-2 Installation And Configuration Manual page 94

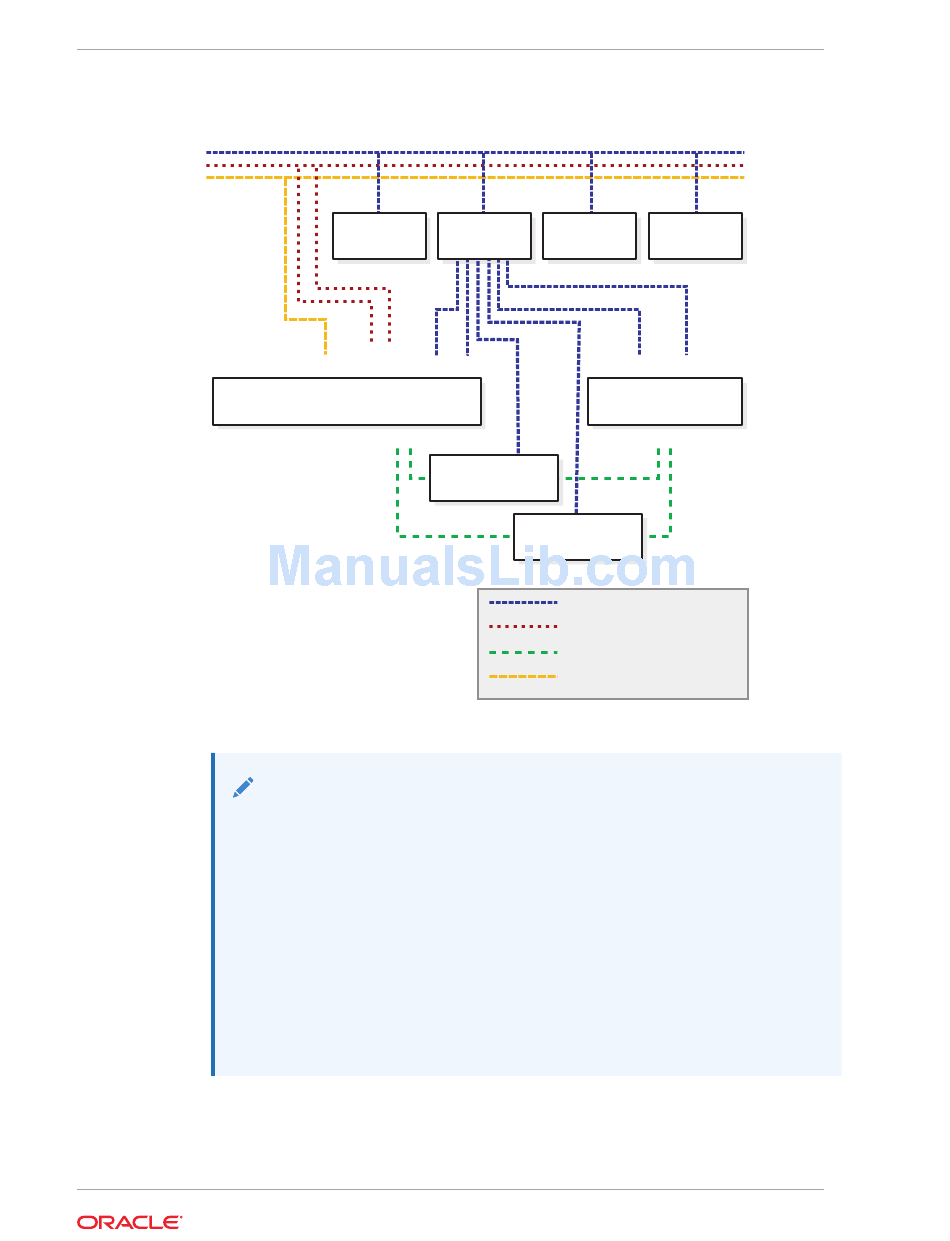

Figure 2-3 Network Diagram for Oracle Exadata Database Machine X3-2 and
Oracle Exadata Database Machine X2-2
KVM
(X2-2)
BONDETH0
PCI1 / PCI1 /
PORTB
PORTA NET3 NET2 NET1
Oracle
Database Server
BONDIB0
Notes:
• Oracle Exadata Database Machine X3-8 Full Rack, and Oracle Exadata
Database Machine X2-8 Full Rack have BONDIB0, BONDIB1, and so on
for the InfiniBand private network.
• The KVM switch is only available in Oracle Exadata Database Machine
X2-2 racks.
• Additional configuration, such as defining multiple virtual local area
networks (VLANs) or enabling routing, may be required for the switch to
operate properly in your environment, and is not included in the installation
service. If additional configuration is needed, then the network
administrator performs the necessary configuration during Oracle Exadata
Database Machine installation.
Related Topics:
• Using Oracle Exadata Deployment Assistant
Ethernet
PDU A
Switch
NET0 ILOM
InfiniBand
Switch
InfiniBand
Switch
Management
Client Access
Private InfiniBand
Additional network 1 (optional)
(page 3-1)
Chapter 2
Overview of Network Requirements
PDU B
ILOM NET0
Exadata
Storage Servers
BONDIB0
2-6
