4.3.2.1 Stabilize Oracle Exadata Rack with Leveling Feet

The rack contains four leveling feet that can be lowered to stabilize the rack. The
leveling feet can be used even when the rack is permanently secured to the floor. The
four leveling feet should share the rack load with at least one other support. The
following is an acceptable method to share the rack load:
• Casters and leveling feet
To adjust the leveling feet, do the following:
Locate the four leveling feet located at the bottom corners of Oracle Exadata
1.
Rack.
bottom of Oracle Exadata Rack.
Figure 4-3
•
•
•
•
•
•
•
•

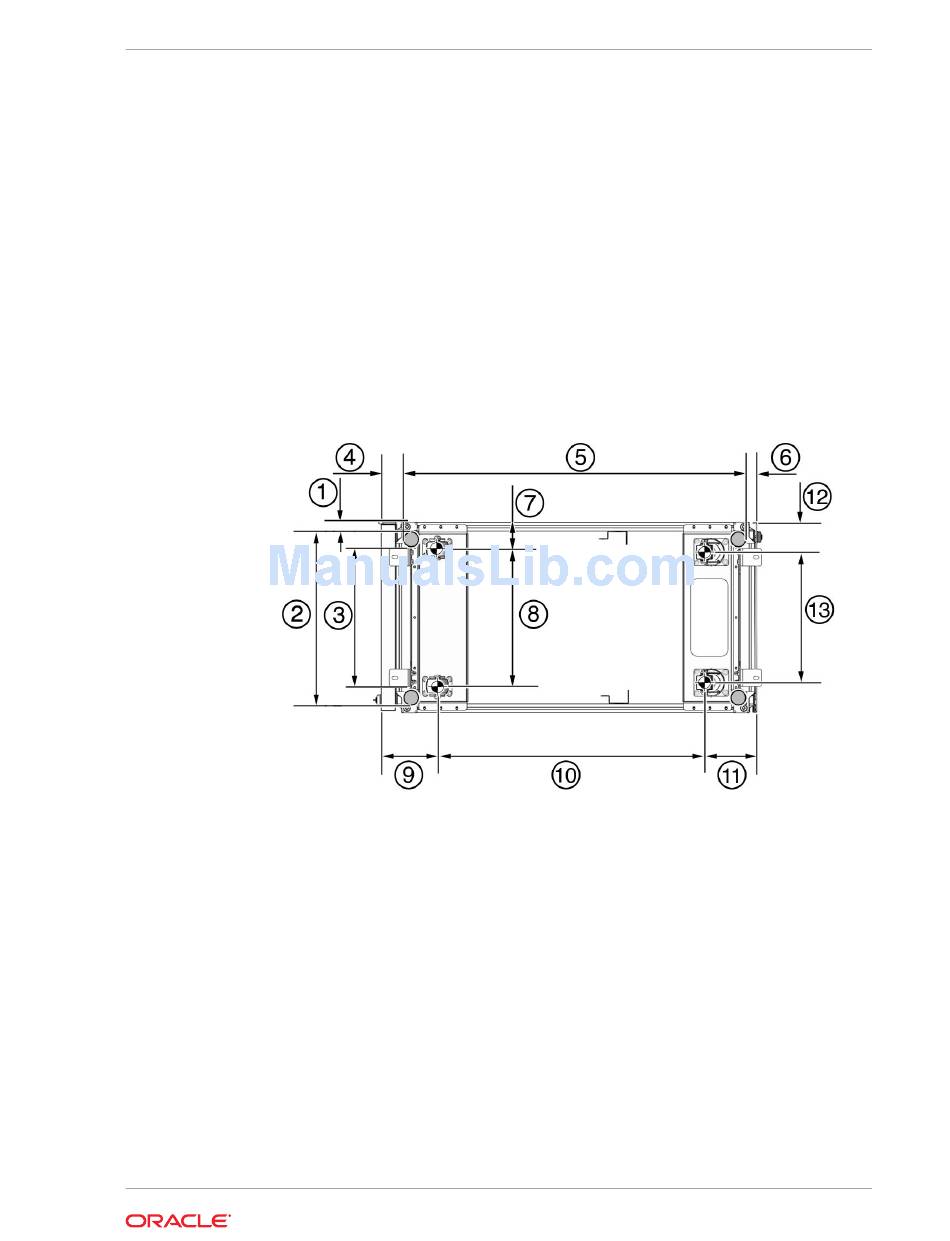

Figure 4-3 (page 4-7) shows the location of the leveling feet on the
Location of Leveling Feet on Oracle Exadata Rack
1: Distance from the edge of the mounting feet to the side of the rack is 33.75
mm (1.33 inches)
2: Width from the outside edges of the leveling feet is 532.5 mm (20.96
inches)
3: Width from the inside edges of the leveling feet is 429 mm (16.89 inches)
4: Distance from the edge of the feet to the front rack surface is 73.75 m (2.90
inches)
5: Depth of the outside edges of the leveling feet is 1058.5 mm (41.67 inches)
6: Distance from the edge of the leveling feet to the rear rack surface is 32.5
mm (1.28 inches)
7: Distance from the center of front casters to the side of the rack is 86.7 mm
(3.41 inches)
8: Width between the center of the front casters is 426.6 mm (16.80 inches)
