Oracle Server X6-2 Getting Started Manual

Hide thumbs Also See for Server X6-2:
1
2
3
4
5
6

Advertisement

Quick Links

Download this manual
Oracle
Server X6-2 Getting Started Guide
®
Read this guide before you begin the steps to rack mount, power on, and install an operating system on your Oracle
Server X6-2. For detailed installation instructions, refer to the Oracle Server X6-2 Installation Guide.
Server and Shipped Inventory
1 – Power cords (2)
2 – Rackmount template
Before You Begin — Review the Documentation
Review the following documents at:
Oracle Server X6-2 Safety and Compliance Guide — For safety and regulatory compliance information
■
Oracle Server X6-2 Product Notes — For late-breaking information that affects installation requirements
■
Oracle Server X6-2 Installation Guide — For detailed installation information and procedures
■
Oracle Server X6-2 Service Manual — For instructions on how to remove and install server components, and
■
how to troubleshoot server operation
Oracle Server X6-2 operating systems installation guides — For installation and configuration information for
■
Oracle Solaris, Oracle VM Server, Oracle Linux and other Linux, and Windows Server operating systems
Oracle X6 Series Servers Administration Guide — For software methods to set up the server using BIOS, Oracle
■
ILOM, and Oracle Hardware Management Pack
Oracle ILOM Documentation Collection — For descriptions of Oracle ILOM features and functionality
■
Also, refer to Important Safety Information for Oracle's Hardware Systems that ships with the server.
3 – Documentation
4 – Rackmount kit
http://www.oracle.com/goto/x6-2/docs
5 – Shipping bracket (X-option)

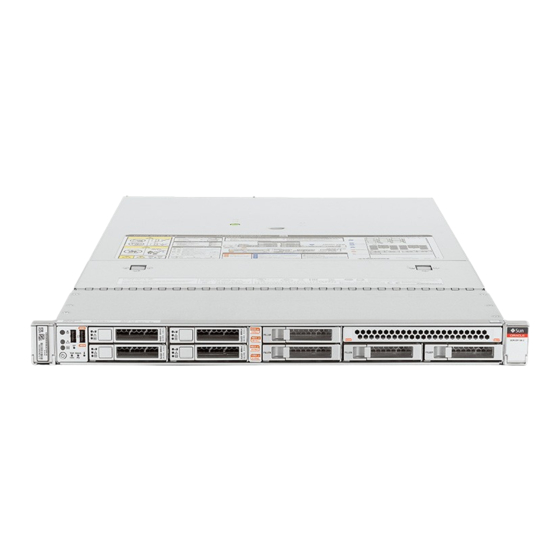

6 – Server
1

Advertisement

loading

Related Manuals for Oracle Server X6-2

Summary of Contents for Oracle Server X6-2

  • Page 1 Server X6-2 Getting Started Guide ® Read this guide before you begin the steps to rack mount, power on, and install an operating system on your Oracle Server X6-2. For detailed installation instructions, refer to the Oracle Server X6-2 Installation Guide.

  • Page 2: Installing Optional Components

    For rackmounting instructions, refer to the Rackmount Guide and Template that is shipped with the server, the service label on the server, and the Oracle Server X6-2 Installation Guide. You can use the shipping bracket, ordered as a separate X-option component, to secure the installed servers when moving a rack.

  • Page 3: Connect Cables And Power Cords

    The following procedure explains how to power on the server locally using a serial connection and Oracle ILOM. If you want to power on the server remotely using an Ethernet connection and Oracle ILOM, refer to the Oracle X6-2 Installation Guide for instructions.

  • Page 4: Power On The Server

    While the Oracle ILOM SP initializes, the green SP OK LED flashes rapidly. ■ Once the Oracle ILOM SP has fully initialized, the SP OK LED is steady on and the green Power/OK ■ LED flashes slowly, indicating that the host is in Standby power mode.
  • Page 5 Later versions of operating system patches and server firmware might be available for your server. Some server features are enabled only when certain versions of patches or firmware are installed. Refer to the Oracle X6-2 Installation Guide for instructions on how to download patches and firmware.

  • Page 6: Product Documentation Library

    For information about Oracle's commitment to accessibility, visit the Oracle Accessibility Program web site at http: //www.oracle.com/pls/topic/lookup?ctx=acc&id=docacc. Access to Oracle Support Oracle customers that have purchased support have access to electronic support through My Oracle Support. For information, visit or visit http://www.oracle.com/pls/topic/lookup?ctx=acc&id=info http://www.oracle.
