Table 1-24 (Cont.) Low-voltage 15 kVA Single Phase PDUs for North America,
South America, Japan and Taiwan (2 PDUs per Rack)
Option
Data center receptacle
The following are needed to connect an Oracle Exadata system to a low-voltage one-
phase power source:
• 6 power cords for two PDUs, 30 amperes at 200 - 240 VAC
• 6 receptacles to connect the PDUs to 6 NEMA L6-30 data center receptacles
Figure 1-1 (page 1-36) shows the low-voltage, single phase PDU power connector for
North America, South America, Japan and Taiwan.

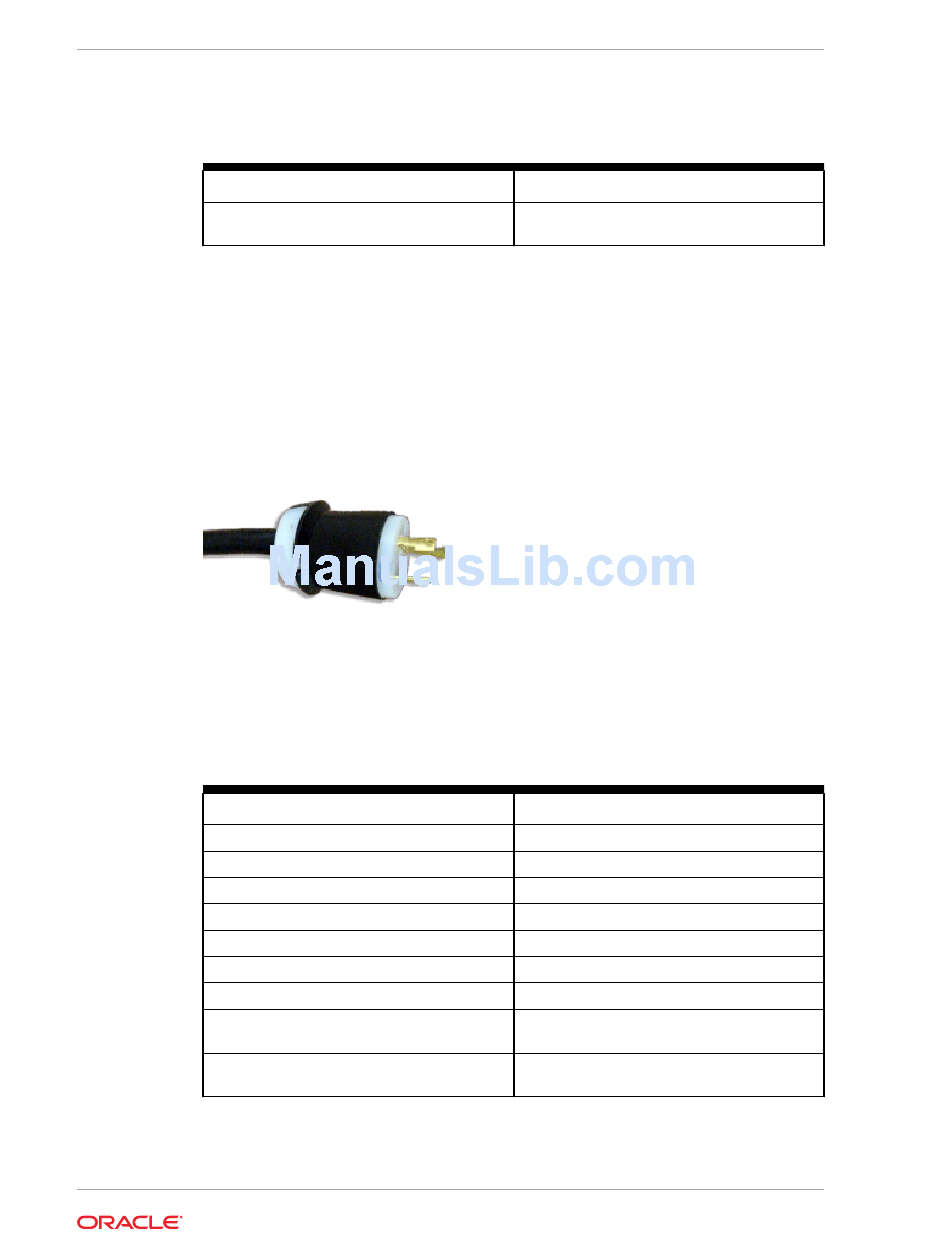

Figure 1-1 Low-voltage Single Phase Power Connector
Table 1-25 (page 1-36) lists the requirements for low-voltage three-phase PDUs for
North America, South America, Japan, and Taiwan. There are two PDUs per rack. The
following specifications are per PDU.
Table 1-25 Low-voltage 15 kVA Three Phase PDUs for North America, South
America, Japan and Taiwan (2 PDUs per Rack)
Option
Voltage
Frequency
Current
Power rating
Output current
Outlets
Outlet groups
Group protection (UL489 2-pole circuit
breaker)
Data center receptacle
The following are needed to connect an Oracle Exadata system to a low-voltage three-
phase power source:
Electrical Power Requirements
Requirement, per PDU
15kVA, with three 30A/250V 2-pole/3-wire
NEMA L6-30P plugs
Requirement, per PDU
190 - 220 VAC
50/60 Hz
40 A maximum per phase
14.4 kVA
69.3 A (3 x 23.1A)
42 x C13; 6 x C19
6
20A
IEC309-3P4W-IP67 60A 250VAC 3ph
(Hubbell equivalent is HBL460R9W)
