• 2 power cords for two PDUs, 60 amperes at 190 - 220 VAC three-phase
• 2 receptacles to connect the PDUs to 2 IEC 60309 60A 4-pin 250VAC 3ph IP67
data center receptacles

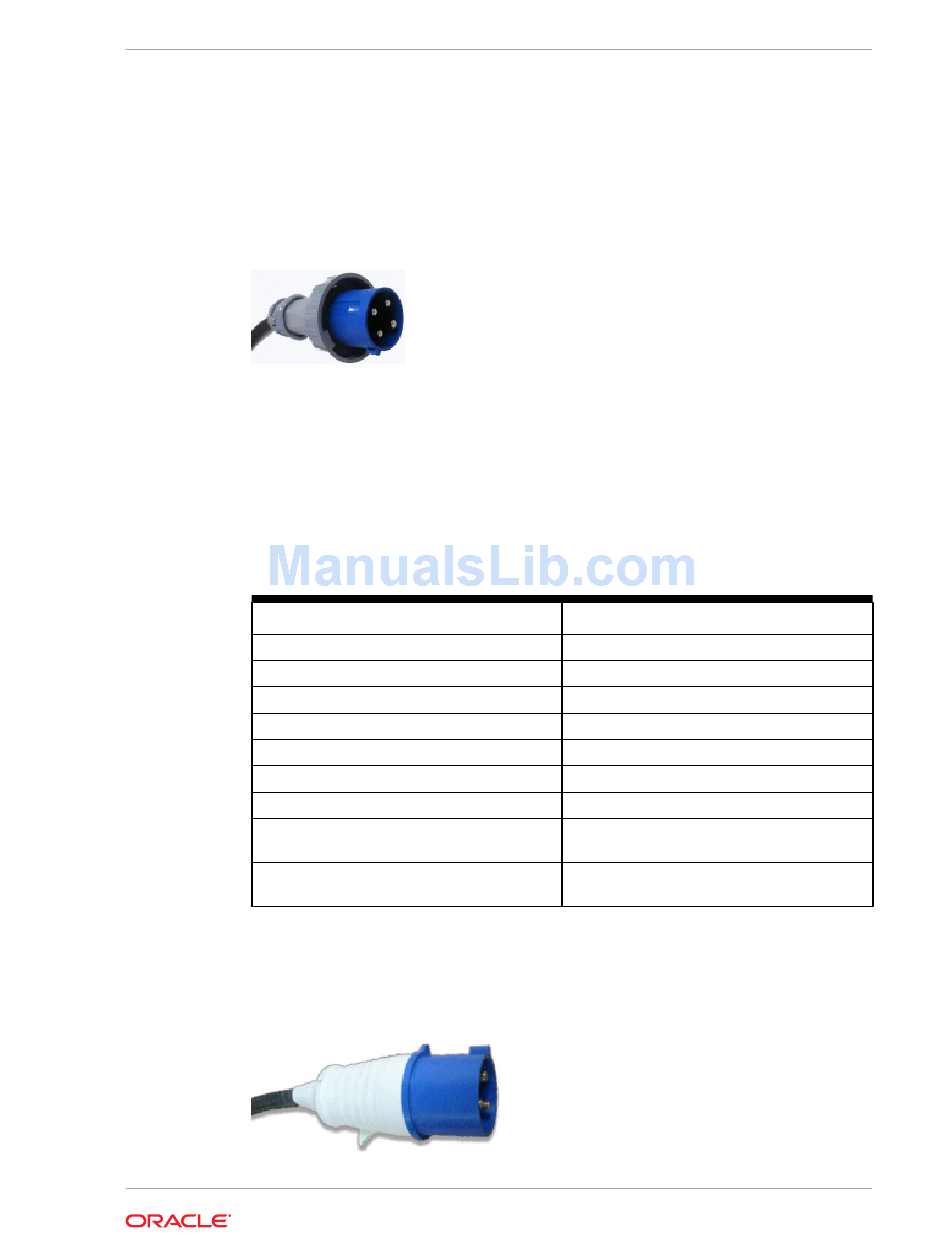

Figure 1-2 (page 1-37) shows the low-voltage, three phase PDU power connector for
North America, South America, Japan and Taiwan.
Figure 1-2 Low-voltage Three Phase Power Connector
Table 1-26 (page 1-37) lists the requirements for 15 kVA high-voltage three-phase
PDUs for Europe, the Middle East, Africa, and Asia Pacific, except Japan and Taiwan.
There are two PDUs per rack.
The following specifications are per PDU.
Table 1-26 High-voltage 15 kVA Single Phase PDUs for Europe, the Middle East
and Africa (EMEA), and Asia Pacific (APAC), except for Japan and Taiwan (2
PDUs per Rack)
Option
Voltage
Frequency
Current
Power rating
Output current
Outlets
Outlet groups
Group protection (UL489 2-pole circuit
breaker)
Data center receptacle
Figure 1-3 (page 1-37) shows the high-voltage single phase PDU power connector
for EMEA, and APAC, except for Japan and Taiwan.
Figure 1-3 High-voltage Single Phase Power Connector
Electrical Power Requirements
Requirement, per PDU
220 - 240 VAC
50/60 Hz
24 A maximum per input
15 kVA
72 A (3 x 24 A)
42 x C13; 6 x C19
6
20A
15kVA, IEC309-2P3W-IP44 32A 250VAC
(Hubbell equivalent is HBL332R6W
