Table 1-27 (page 1-38) lists the requirements for 15 kVA high-voltage three-phase
PDUs for Europe, the Middle East, Africa, and Asia Pacific, except Japan and Taiwan.
There are two PDUs per rack. The following specifications are per PDU.
Table 1-27 High-voltage 15 kVA Three Phase for Europe, the Middle East and
Africa (EMEA), and Asia Pacific (APAC), except for Japan and Taiwan (2 PDUs
per Rack)
Option
Voltage
Frequency
Current
Power rating
Output current
Outlets
Outlet groups
Group protection (UL489 1-pole circuit
breaker)
Data center receptacle
The following are needed to connect an Oracle Exadata system to a high-voltage
three-phase power source:
• 2 power cords for two PDUs, 25 amperes at 220/380 - 240/415 VAC three-phase
• 2 receptacles to connect the PDUs to 2 IEC 60309 32A 5-pin 230/400VAC 3ph
IP44 data center receptacles
Figure 1-4 (page 1-38) shows the high-voltage three phase PDU power connector for
EMEA, and APAC, except for Japan and Taiwan.

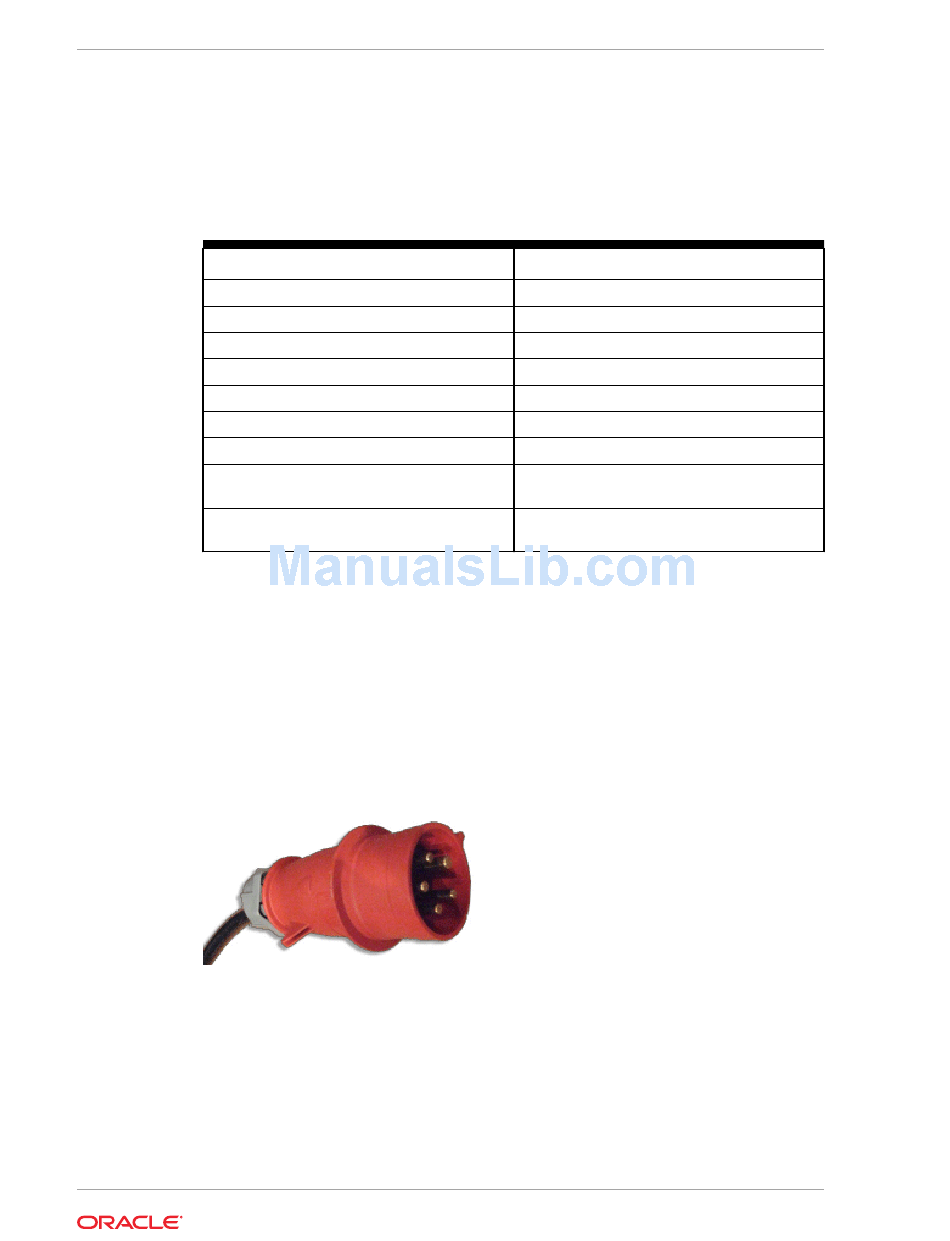

Figure 1-4 High-voltage Three Phase Power Connector
Table 1-28 (page 1-39) lists the requirements for low-voltage 22 kVA single phase
PDUs for North America, South America, Japan, and Taiwan. There are two PDUs per
rack. The following specifications are per PDU.
Electrical Power Requirements
Requirement, per PDU
220/380 - 240/415 VAC 3-phase
50/60 Hz
25 A maximum per phase
14.4 kVA
62.7 A (3 x 20.9 A)
42 x C13; 6 x C19
6
20A
15kVA, three phase, 5-pin, IEC 60309 32A, 5-
pin 230/400V, three phase IP44
