4.Replacement and Adjustment

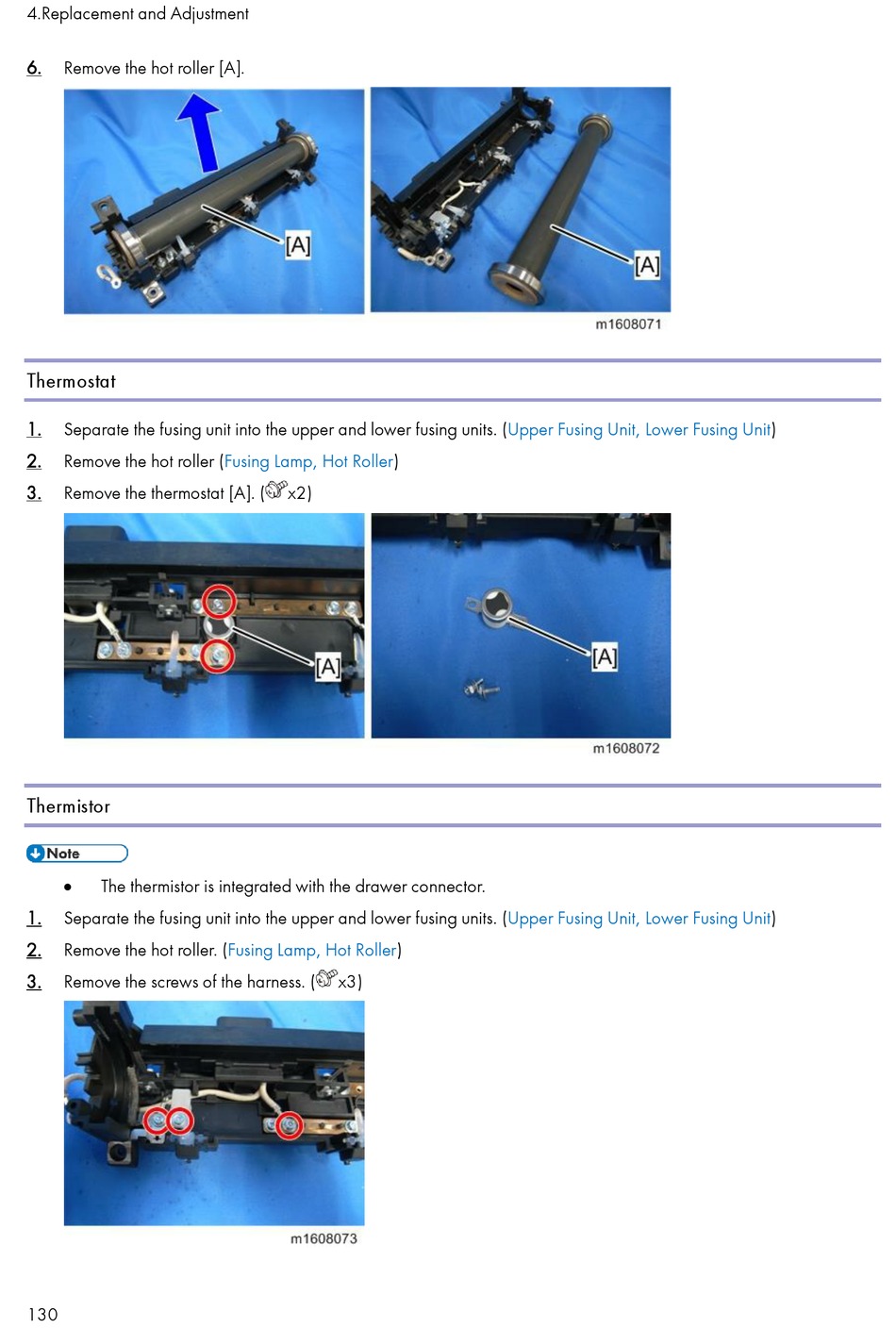

6. Remove the hot roller [A].

Thermostat

1.
Separate the fusing unit into the upper and lower fusing units.
2.
Remove the hot roller
3.
Remove the thermostat [A]. (

Thermistor


The thermistor is integrated with the drawer connector.
1.
Separate the fusing unit into the upper and lower fusing units.
2. Remove the hot roller.
3.
Remove the screws of the harness. (
130
(Fusing Lamp, Hot Roller)
x2)
(Fusing Lamp, Hot Roller)
x3)
(Upper Fusing Unit, Lower Fusing
(Upper Fusing Unit, Lower Fusing
Unit)
Unit)
