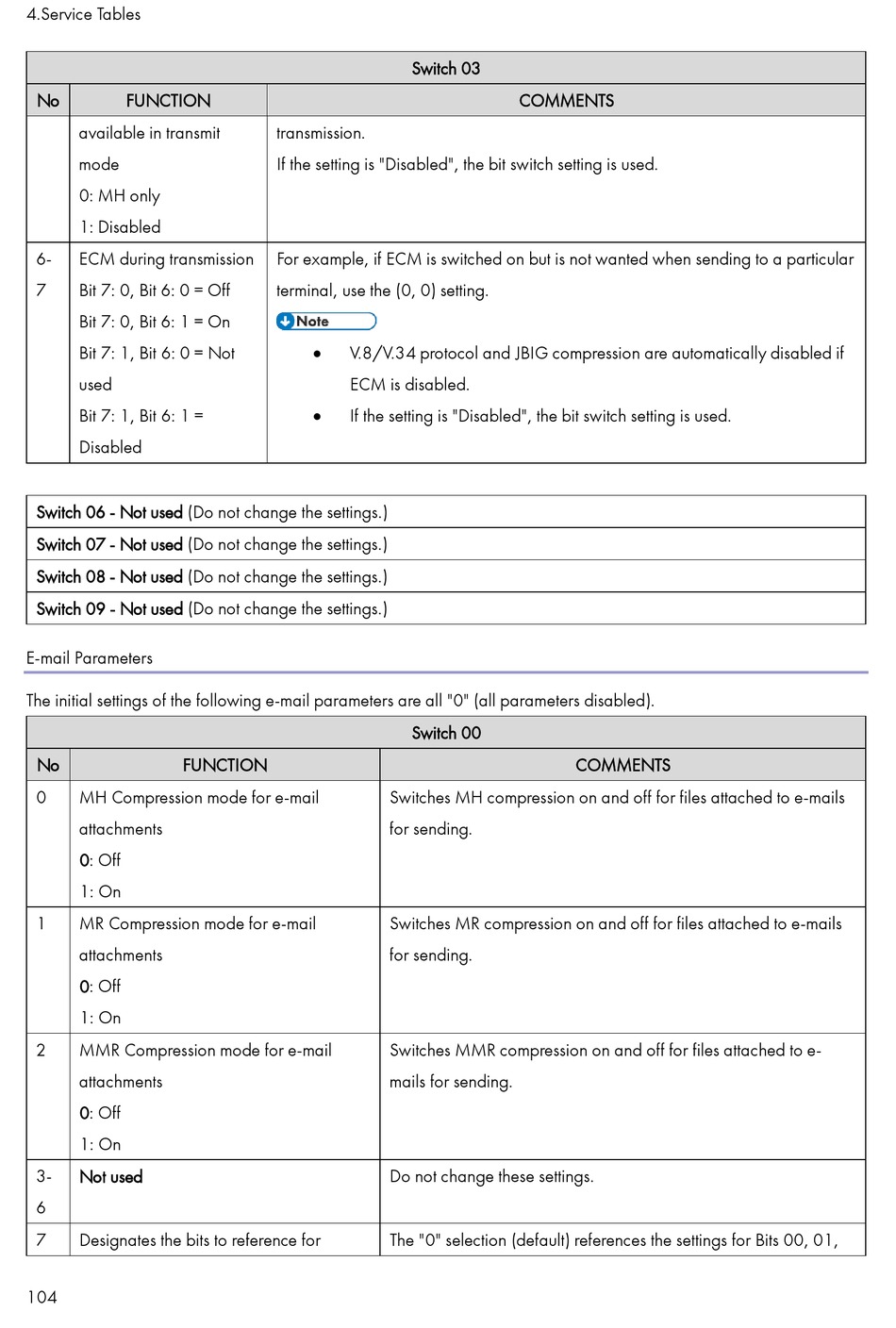

Ricoh M0A0 Service Manual page 730

4.Service Tables
No FUNCTION
available in transmit
mode
0: MH only
1: Disabled
6- ECM during transmission
7 Bit 7: 0, Bit 6: 0 = Off
Bit 7: 0, Bit 6: 1 = On
Bit 7: 1, Bit 6: 0 = Not
used
Bit 7: 1, Bit 6: 1 =
Disabled
Switch 06 - Not used (Do not change the settings.)
Switch 07 - Not used (Do not change the settings.)
Switch 08 - Not used (Do not change the settings.)
Switch 09 - Not used (Do not change the settings.)
E-mail Parameters
The initial settings of the following e-mail parameters are all "0" (all parameters disabled).
No FUNCTION
0 MH Compression mode for e-mail
attachments
0: Off
1: On
1 MR Compression mode for e-mail
attachments
0: Off
1: On
2 MMR Compression mode for e-mail
attachments
0: Off
1: On
3- Not used
6
7 Designates the bits to reference for
104
Switch 03
transmission.
If the setting is "Disabled", the bit switch setting is used.
For example, if ECM is switched on but is not wanted when sending to a particular
terminal, use the (0, 0) setting.

V.8/V.34 protocol and JBIG compression are automatically disabled if
ECM is disabled.

If the setting is "Disabled", the bit switch setting is used.
Switch 00
Switches MH compression on and off for files attached to e-mails
for sending.
Switches MR compression on and off for files attached to e-mails
for sending.
Switches MMR compression on and off for files attached to e-
mails for sending.
Do not change these settings.
The "0" selection (default) references the settings for Bits 00, 01,
COMMENTS
COMMENTS
