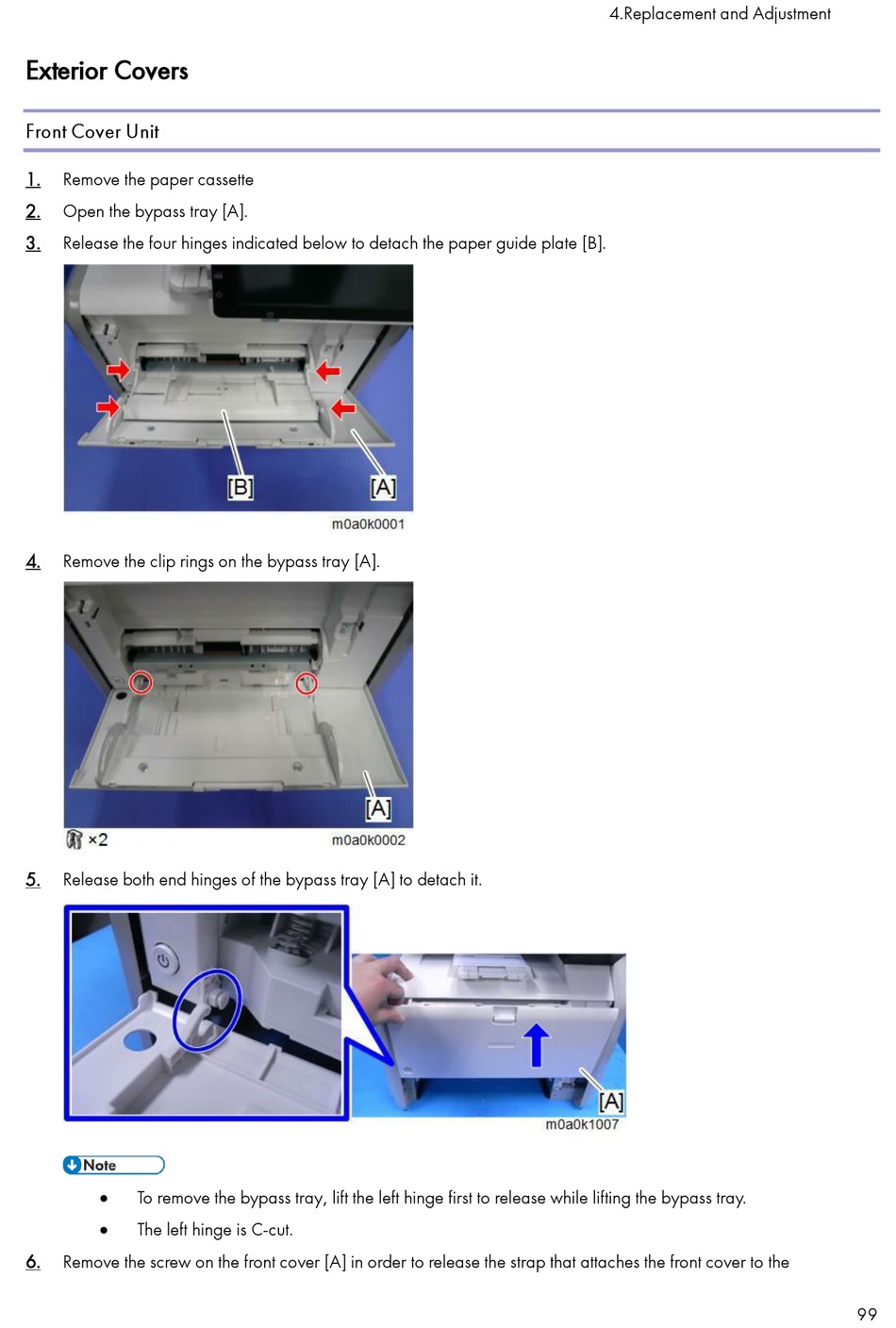

Exterior Covers

Front Cover Unit

1.
Remove the paper cassette
2.
Open the bypass tray [A].
3.
Release the four hinges indicated below to detach the paper guide plate [B].
4.
Remove the clip rings on the bypass tray [A].
5.
Release both end hinges of the bypass tray [A] to detach it.
 To remove the bypass tray, lift the left hinge first to release while lifting the bypass tray.

The left hinge is C-cut.
6.
Remove the screw on the front cover [A] in order to release the strap that attaches the front cover to the
