4.Replacement and Adjustment

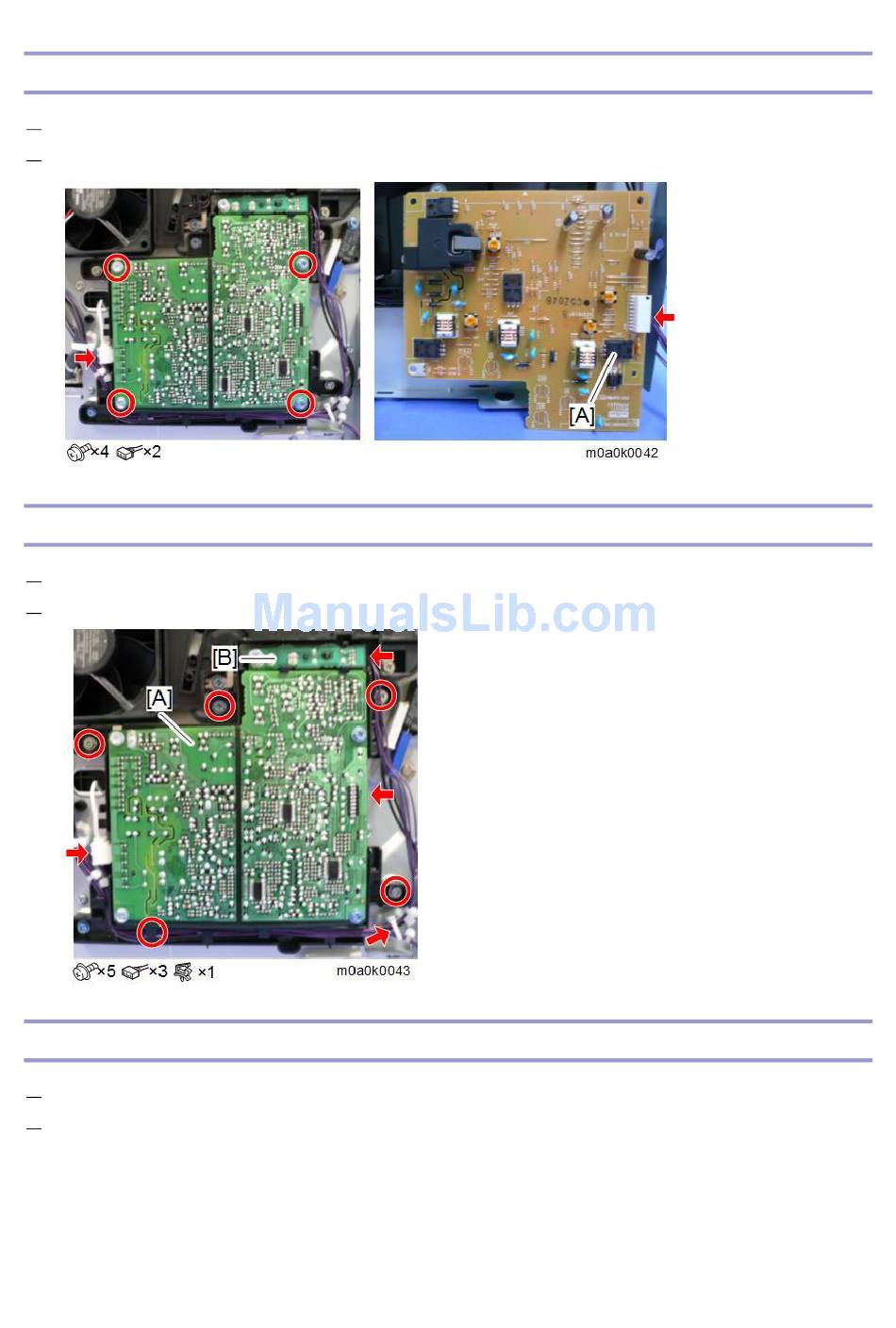

HVPS

1.
Remove the left cover.
2.
Remove the HVPS [A].

HVPS with Bracket

1.
Remove the left cover.
2.
Remove the toner end sensor [B] and HVPS [A] with bracket.

Fusing Fan

1.
Remove the left cover.
2.
Remove the fusing fan [A].
160
(Left Cover)
(Left Cover)
(Left Cover)
