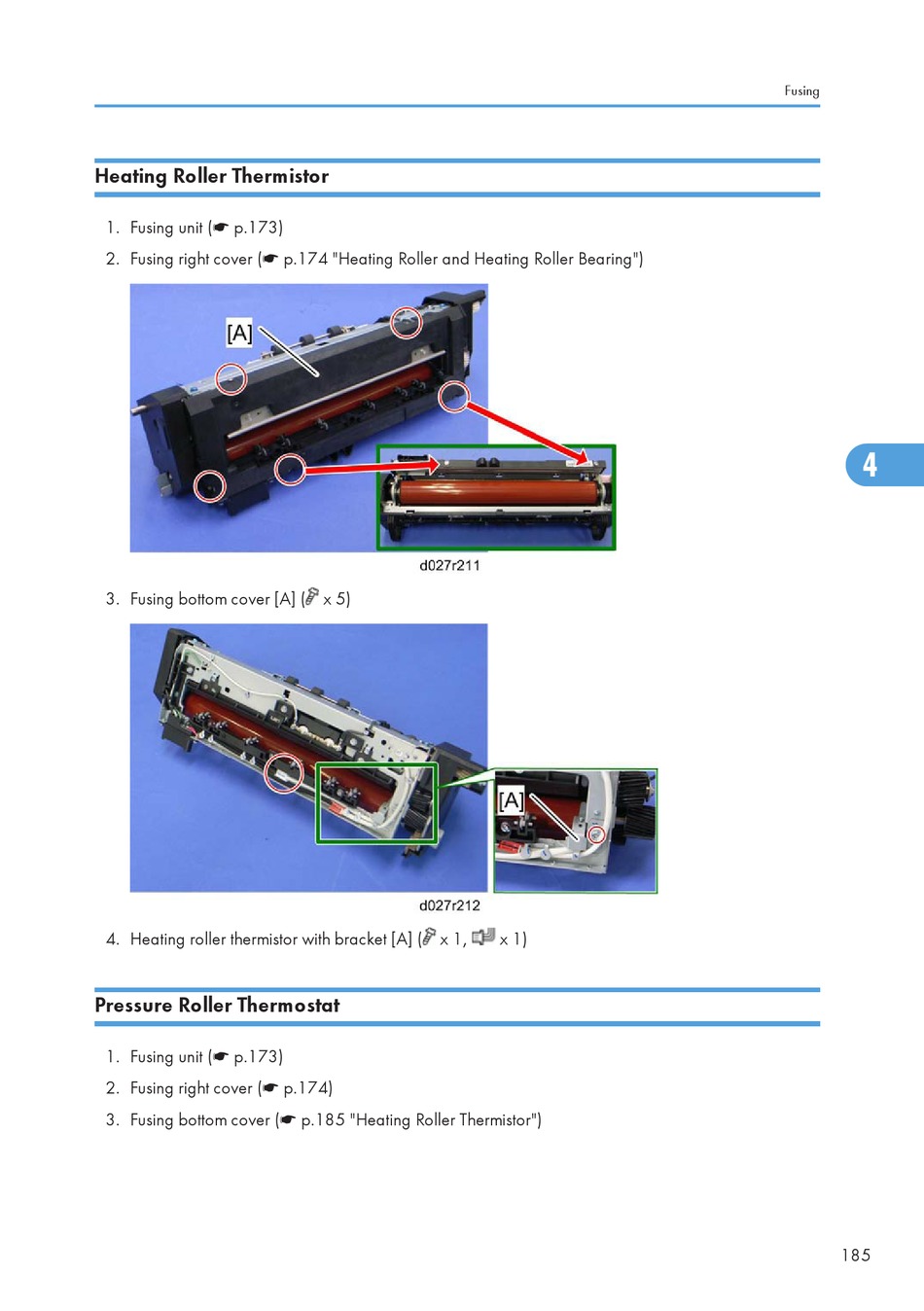

Heating Roller Thermistor

1. Fusing unit (* p.173)
2. Fusing right cover (* p.174 "Heating Roller and Heating Roller Bearing")
3. Fusing bottom cover [A] ( x 5)
4. Heating roller thermistor with bracket [A] ( x 1,

Pressure Roller Thermostat

1. Fusing unit (* p.173)
2. Fusing right cover (* p.174)
3. Fusing bottom cover (* p.185 "Heating Roller Thermistor")
x 1)
